מזרק PoE ג'יגהביט 5/9/12 וולט DC – DPE-301GS

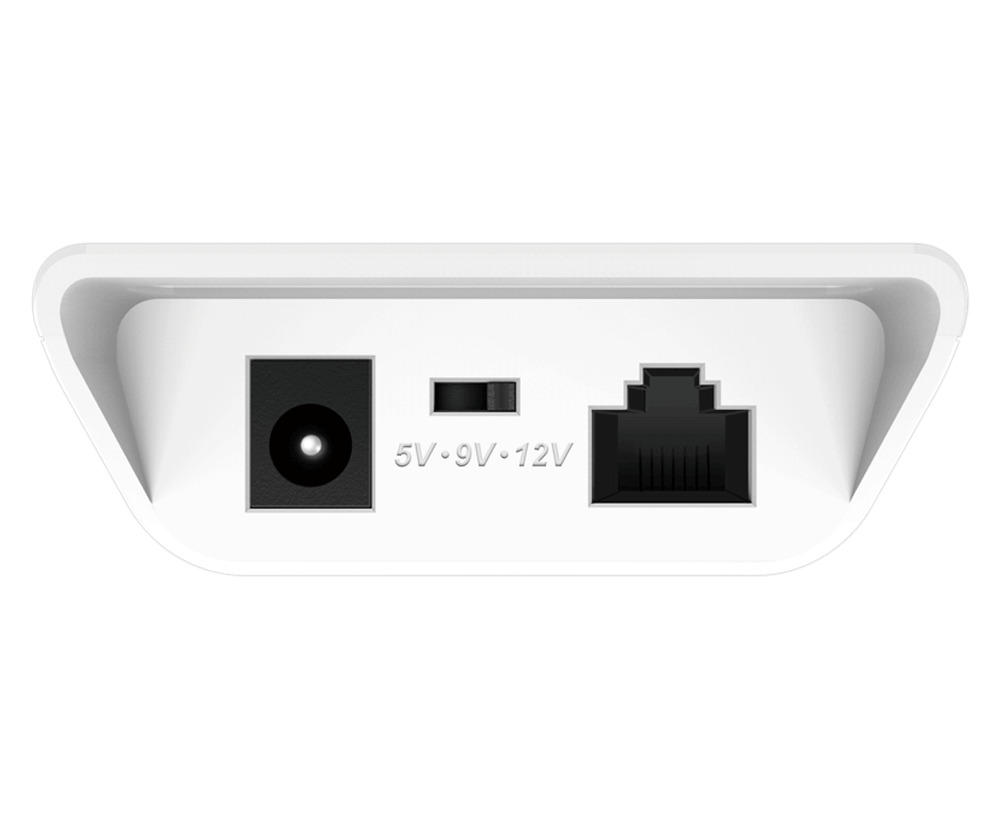

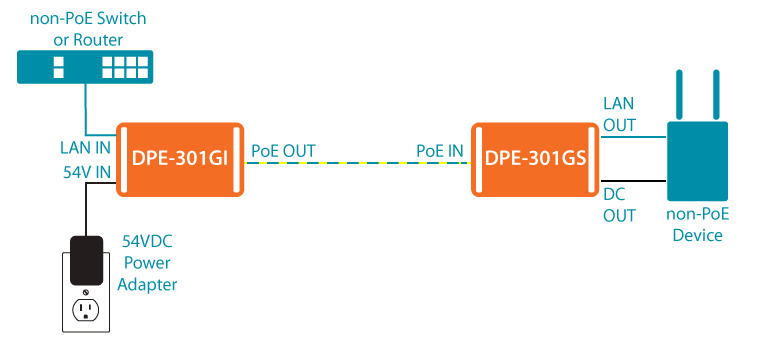

The DPE-301GS PoE splitter is used with end devices such as wireless access points, IP cameras and VoIP phones that don’t natively support PoE, but rather require DC power input of 5V, 9V or 12V. It receives PoE power on a network cable from a PoE switch or midspan injector, and splits the Ethernet and DC power into two separate cables. One cable provides the DC power, and the other cable provides the Ethernet signal. Users can select from 5VDC, 9VDC and 12VDC power for their device using a selectable DIP switch on the device.

• Supports IEEE 802.3at/af PoE Standard
• Supports existing non-PoE devices and add new devices even where there are no outlets
• Transforms incoming AC power to low-voltage DC power (5 V, 9 V, or 12 V)
• Lightweight, compact and easy to install with no additional software required
• Connects your devices at Gigabit speeds, receives power up to 100 m away (328 ft)
• 10/100/1000 interface provides flexibility for all types of connections

Specifications
Product Description: Gigabit PoE Plus Splitter
Power: 5 V DC up to 2.5 A 9 V DC up to 2 A 12 V DC up to 2 A
Dimensions: 109.8 x 62.2 x 24.5 mm
Temperature: Operating: 0 to 60 °C (32 to 140 °F) Storage: -30 to 70 °C (-22 to 158 °F)
Certifications: CE FCC VCCI RCM RoHS
