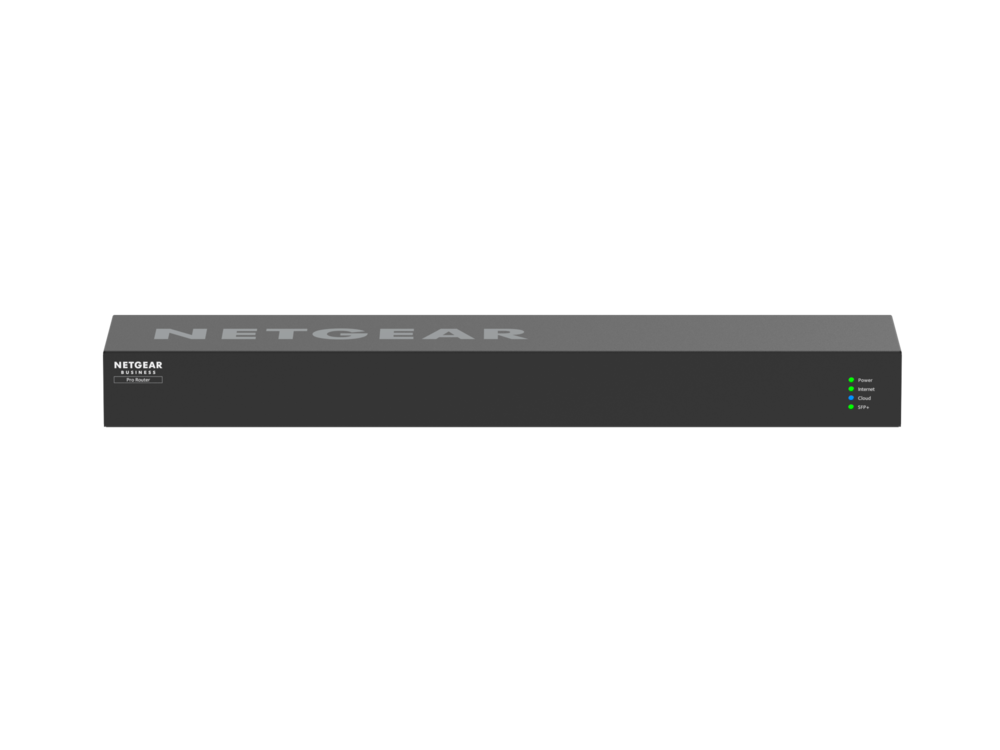

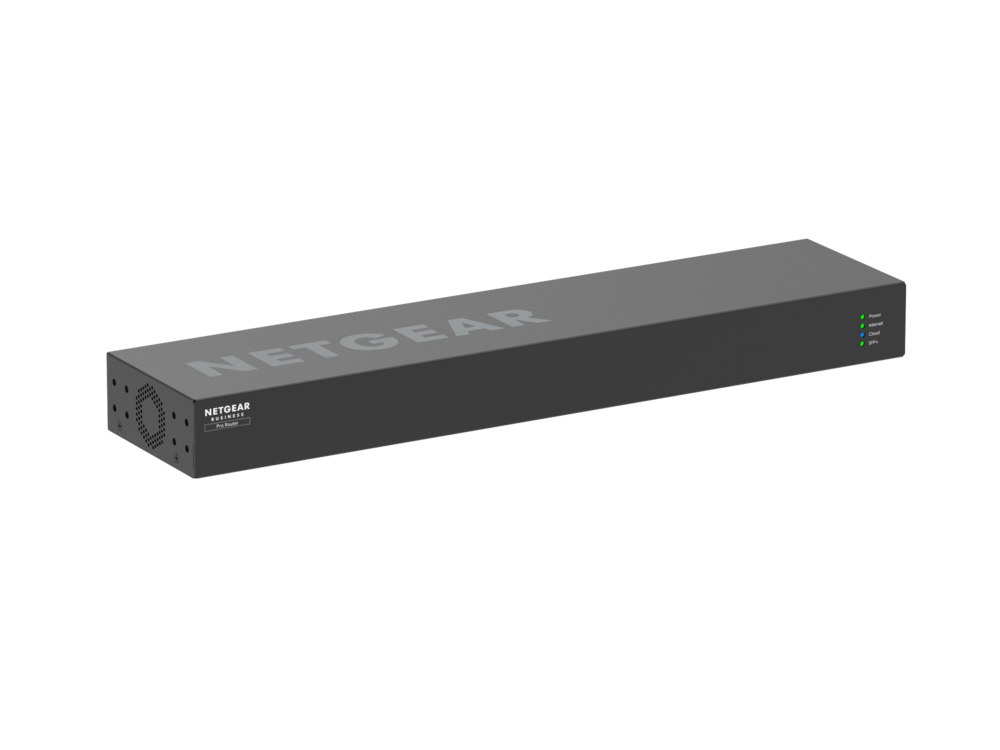

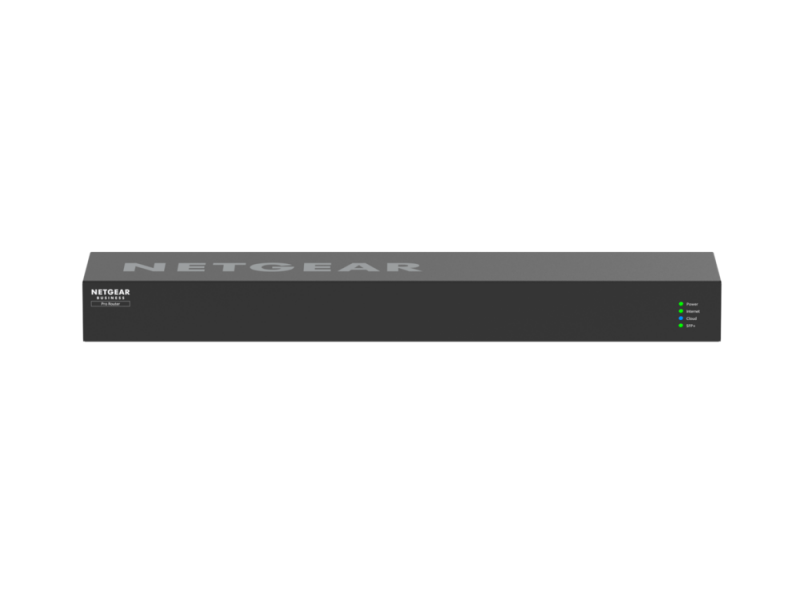

10G/Multi-Gigabit Dual WAN Pro Router with Insight Cloud Management – PR460X
"• 10G/Multi-Gig and 2.5G Dual WAN ports with failover
• High performance hardware with one 10G/Multi-Gig Ethernet port, four 2.5G Ethernet ports and one 10G SFP+ port for long-distance backhaul or connection to ISP fiber modem
• Seamless integration with NETGEAR Pro WiFi Access Points and select Smart switches through NETGEAR Insight Cloud Management
• Control, manage and monitor through NETGEAR Insight

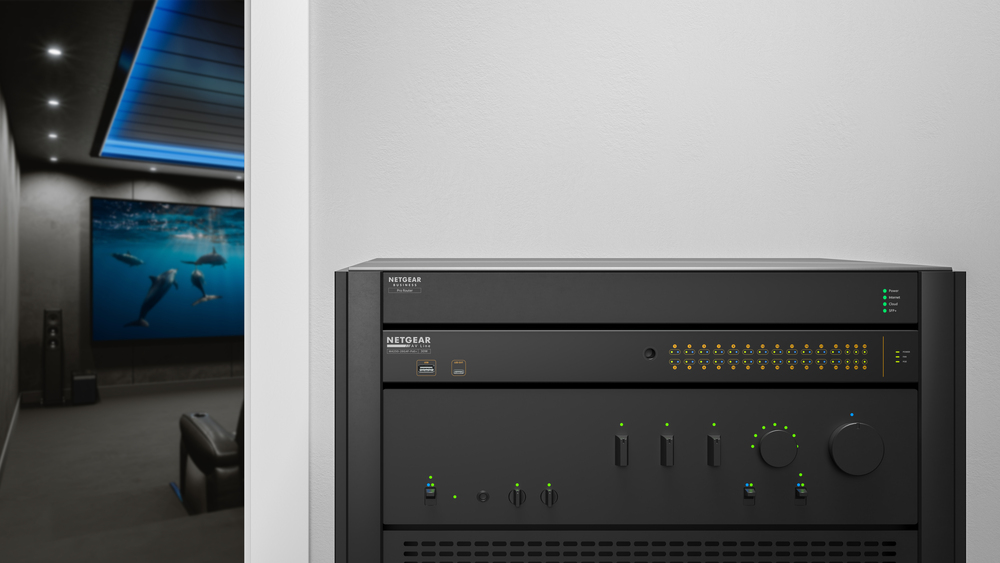

• Rack-mountable for placement in industry-standard enclosures
• Firewall protection
• IPSec configuration to create secure site-2-site VPN connections
Specifications
Width – 440mm
Depth – 100mm
Height – 43.2mm
Weight – 3.27lb (1484g)
Hardware – Quad Core ARM A73 @ 2.2 GHz, 2GB DDR4, Flash Memory 4GB eMMC
Connectivity –
Network Switching Subsystem (NSS) processor
1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN)
1 x 2.5G/1G RJ-45 (WAN)
3 x 2.5G/1G RJ-45 (LAN)
1 x 10G/1G SFP+ (LAN)
Performance – WAN/LAN speed at 2.5G or 10G port wired speed.
LAN/VLAN – Maximum Number of VLANs is 8, DHCP Server (limit is 8), VLANs 802.1Q
Security – Firewall Traffic Rules/Scheduling, Port Forwarding, Port Triggering, Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, Respond To Ping on Internet Port.
VoIP SIP ALG – Yes
Networking – ISP Address Assignment DHCP, Static IP Assignment, PPPoE, NAT, Static Routing, Routing Protocol (RIPv1, RIPv2), MAC Address Cloning/spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports
VPN – IPSec
Encryption/Authentication – 3DES, AES (128, 192, 256 bit)/SHA-1, SHA-2 (256bit), MD5
Management Options – Insight Cloud, Logging Accepted Packets, Dropped Packets Statistics, System, Source MAC filter, Session Limit, Bandwidth Limit, Ipsec VPN, Log Delivery Insight logging, Diagnostics Ping, DNS Lookup, Trace Route, Speed test, Maintenance Save/restore Configuration, Restore to Factory Defaults, Firmware Upgrades, Display and monitor Statistics
Major Regulatory Compliance Environment – RoHS
Operating Temperature – 0° – 40°C (32°-104° F)
Storage Temperature – -20° – 70° C (-4° – 158° F)
Power – AC 100-240V, 50/60Hz, 1.3A"
