1U/2 Slot Rack Mount for NetworkHD™ NHD-140-TX – NHD-140-RACK-1U
1U/2 Slot Rack Mount for NetworkHD™ NHD-140-TX
תיאור

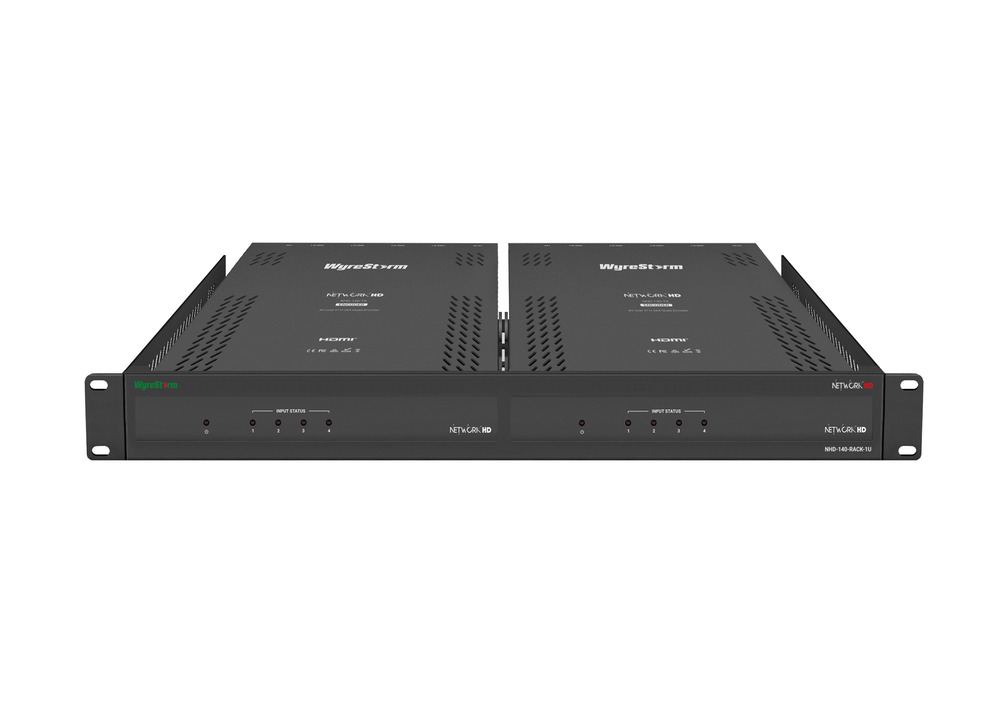

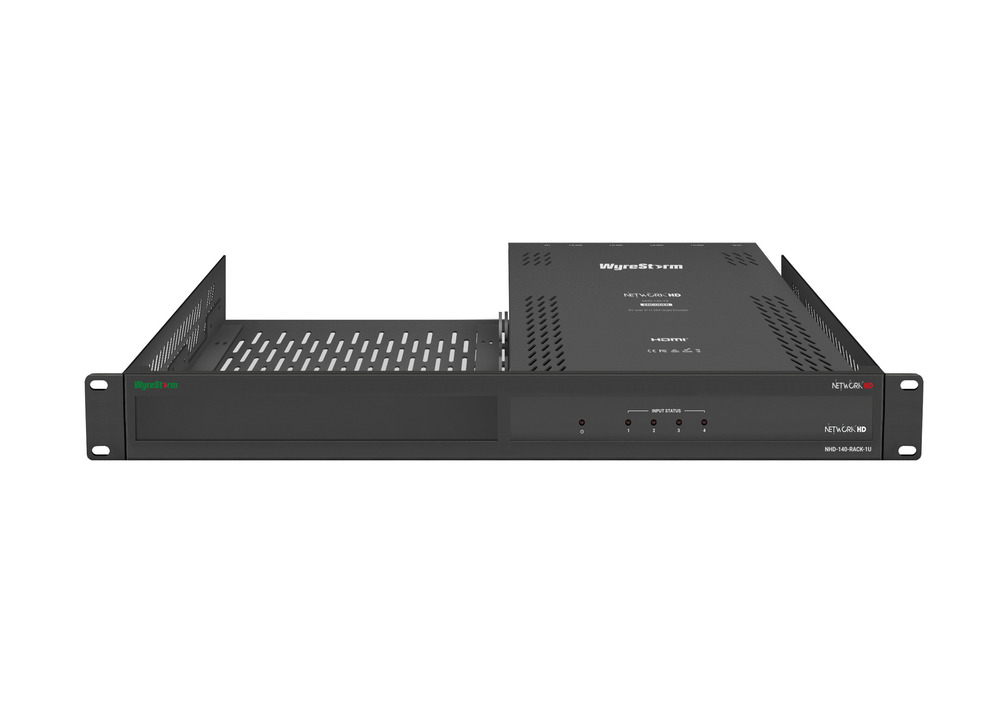

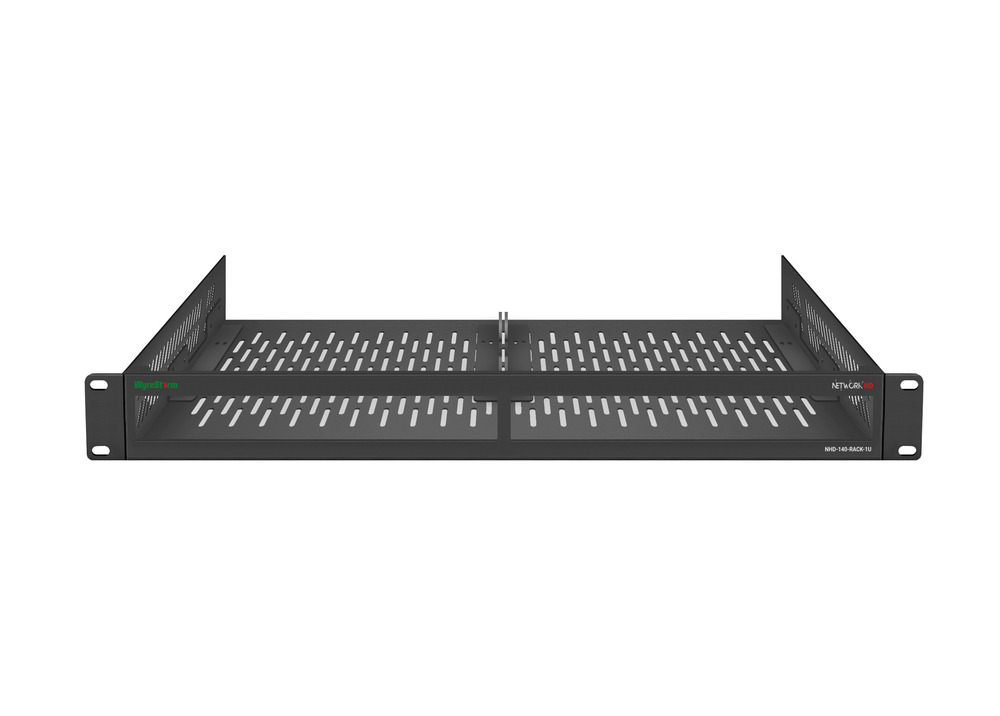

The NHD-140-RACK-1U is a 1U rack mount that provides a clean installation for up to 2 NetworkHD 100 Series NHD-140-TX quad encoders. The minimal rack unit height and compact mounting arrangement allows a very high NetworkHD 100 Series encoder density designed for space restricted deployments.
The robust and thermally optimized design helps keep your centralized NetworkHD solution perfectly organized.
Specifications
DIMENSIONS & WEIGHT
Rack Units | Wall Box: 1U
Height: 43.5mm/1.71in
Width: 483mm/19in
Depth: 162mm/6.38in
Weight (Empty): 1.01kg/2.23lbs
