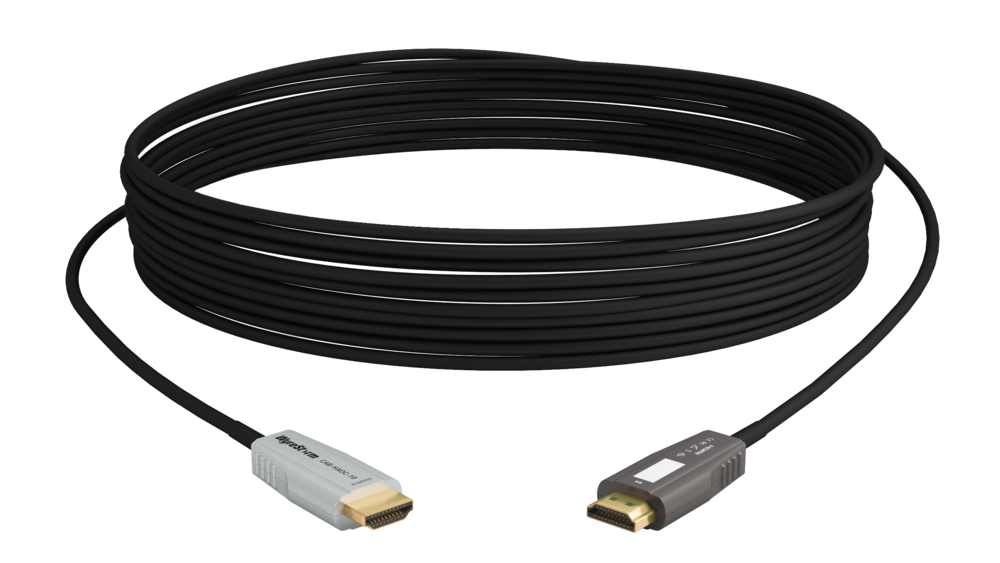

24Gbps 4-core Active Optical HDMI Cable | 4K HDR 4:4:4/60, ARC, CEC, ALLM & VRR | Kevlar strengthened | ISF Certified – CAB-HAOC-xx

The WyreStorm HAOC is a next generation HDMI cable designed for the next generation of 4K and 5K HDR content. It offers a unique feature set in both delivering uncompressed HDMI content at up to 24Gbps and compatibility with emerging HDMI technologies such as ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate) using the latest in optical transmission technology. Now established as the most powerful form of HDMI extension, WyreStorm active optical cables offer the best of both worlds: pixel-perfect long distance transmission of content and native HDMI communication, thanks to their ability to be a passive communication technology compared to normal HDBaseT extenders that often terminate the HDMI signal prior to transmission.

Specifications
TRANSMISSION
Transmission Encoding: Uncompressed AOC

End to End Latency: 10μs

Max Transmission Bit Rate: 24Gbps (4-core, 6Gbps per lane)

VIDEO
HDMI: (v2.0b) TMDS | 600MHz Maximum | (v2.1) FRL (Fixed Rate Link) | 16b/18b encoding

Input: 1x HDMI: 19-pin type A Male

Output: 1x HDMI: 19-pin type D Male | Type A Detachable Head

Maximum Data Rate: 22.28 Gbps

Video Resolutions (Max):
1920 x 1080p @120Hz
2560 x 1440p @144Hz
3840 x 2160p @60Hz 10bit HDR 4:2:0
3840 x 2160p @60Hz 12bit HDR 4:2:2
3840 x 2160p @60Hz 10bit HDR 4:4:4
3840 x 2160p @60Hz 10bit HDR RGB
5120 x 2880p @30Hz 10bit HDR 4:4:4

Supported Standards: DCI | Static HDR | HDR10+ | Dolby Vision | HLG | SL-HDR1 | PQ | BT.2020 | BT.2100

VIDEO
Audio Formats: 2ch PCM | Multichannel LPCM | DTS-X | Dolby Atmos

Maximum Sampling Rate: 192KHz

Maximum Audio Channels: 32

Audio Return Channel (ARC): Supported

COMMUNICATION & CONTROL
HDCP: Pass-through, 2.3 Supported

EDID: Pass-through, RX>TX

Ethernet: 100Mbps Supported

Consumer Electronics Control (CEC): Supported

Variable Refresh Rate (VRR): Supported

Auto Low Latency Mode (ALLM): Supported

POWER
Power Supply: Passive 4.5v~5.5v VCC (From Connected Source)

Max Power Consumption: 250mW
