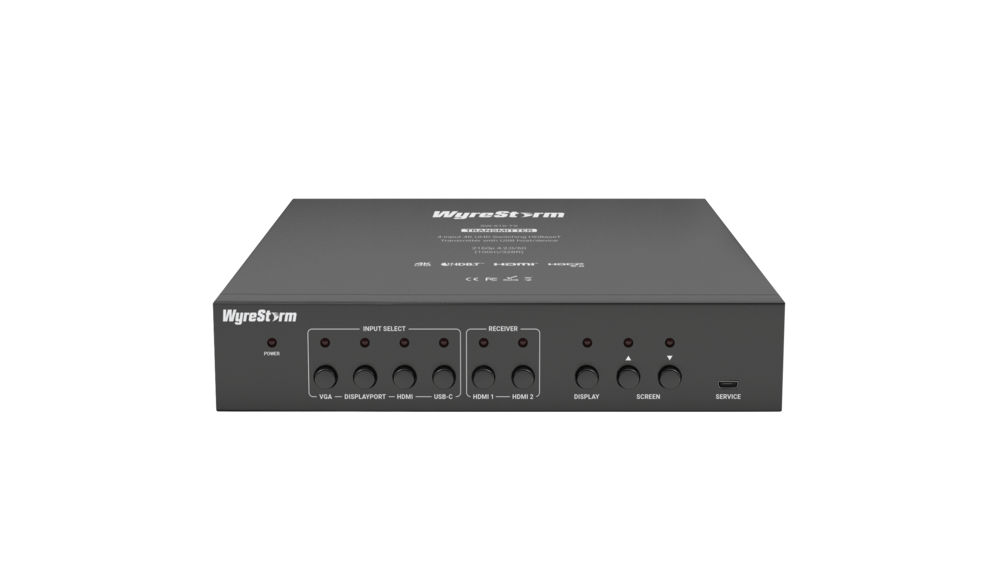

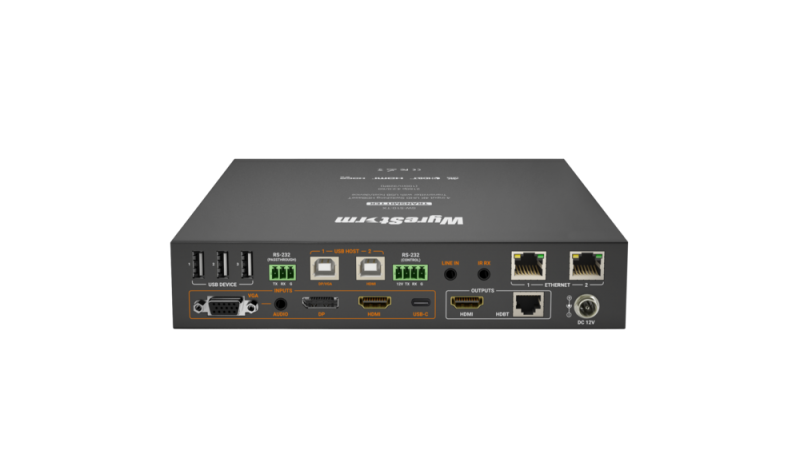

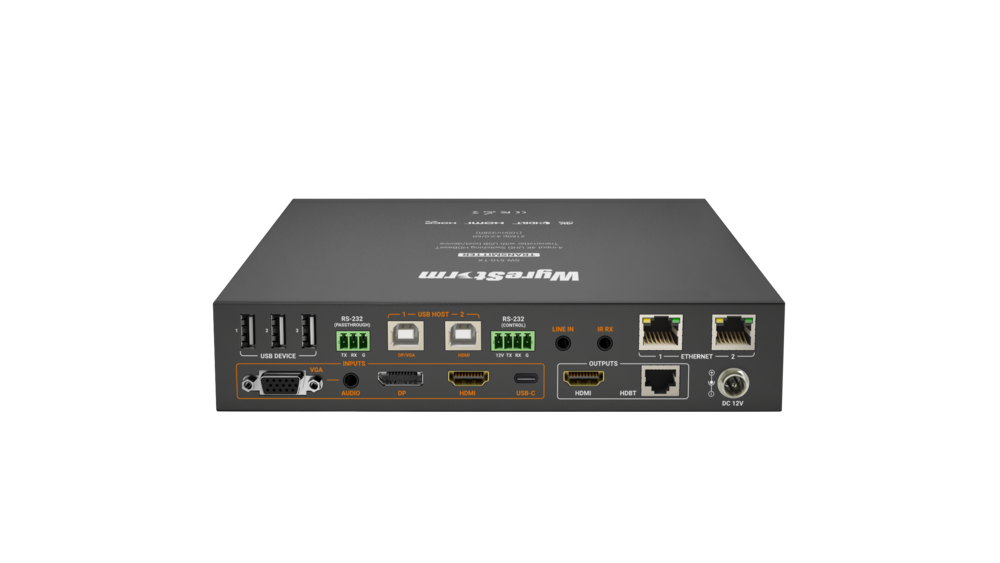

4-Input 4K HDBaseT Switcher with USB – SW-510-TX

When the next generation of HDBaseT transmission meets WyreStorm’s presentation switcher platform, the result is this powerful switching transmitter, perfect for corporate meeting and classroom environments. Automatic switching inputs with USB host extension and CEC triggering mean an autonomous experience with no user input required.

Specifications
AUDIO & VIDEO
Inputs:
1x VGA In: 15-pin VGA
1x Display Port In: DisplayPort 1.3
1x HDMI In: 19-pin type A
1x Audio In: 3.5mm (1/8in) TRS Stereo
1x Line In: 3.5mm (1/8in) TRS Stereo

Outputs:
1x HDMI Out: 19-pin type A
1x HDBT Out: 8-pin RJ-45 Female

Video Encoding: HDBaseT™ Class C

Encoding Data Rate: 9.2Gbps

End to End Latency: 10μs (micro seconds)

Audio Formats: 2ch Analog/PCM | Multichannel: LPCM

Video Resolution (Max):
1920x1080p @60Hz 8bit
1920x1200p @60Hz 8bit
3840x2160p @30Hz 8bit 4:4:4
4096x2160p @60Hz 8bit 4:2:0

Supported Standards: DCI | RGB

Maximum Pixel Clock: 297MHz

COMMUNICATION & CONTROL
HDMI: HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)

HDBaseT: HDMI | HDCP 2.2 | EDID | CEC | 2ch audio | USB

RS-232: 1x RS-232 (Control): 3-pin Phoenix | 1x RS-232 (Passthrough): 3-pin Phoenix

Ethernet: 2x 8-pin RJ-45 female | Bidirectional over HDBaseT™

IR: 1x IR RX: 3.5mm (1/8in) TS Mono

USB: 1x USB-C: USB 3.1 Audio/Video2x USB Host: USB-B | 3x USB Device: USB-A

POWER
Power Supply: 12V DC 2A

Max Power Consumption: 14.02W
