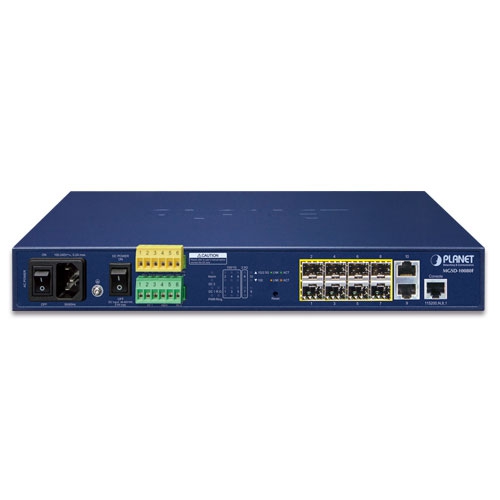

6-Port 100/1000X SFP + 2-Port 1G/2.5G SFP + 2-Port 10/100/1000T Managed Metro Ethernet Switch – MGSD-10080F-IR

PLANET MGSD-10080F Managed Metro Ethernet Switch is equipped with advanced management functions and provides 6 100/1000Mbps dual speed SFP Fiber ports, 2 100/1000/2500Mbps SFP ports and 2 10/100/1000Mbps TP ports delivered in a rugged strong case. It is capable of providing non-blocking switch fabric and wire-speed throughput as high as 26Gbps in the temperature range from -10 to 60 degrees C without any packet loss and CRC error, which greatly simplify the tasks of upgrading the enterprise LAN for catering to increasing bandwidth demands. The MGSD-10080F is specially designed for service providers to deliver profitable long-distance Ethernet network. The MGSD-10080F adopts “Front Access” design, making the wiring and maintenance of the MGSD-10080F placed in a cabinet very easy for technicians.

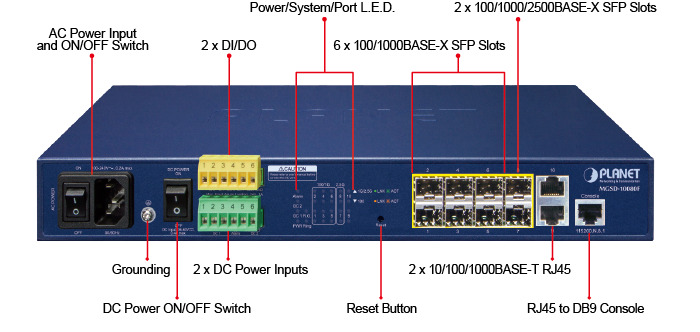

Specifications
SFP Fiber Optic Ports:
6 1000BASE-SX/LX/BX SFP interfaces, from port 1 to port 6
Compatible with 100BASE-FX SFP.
2 100/1000/2500BASE-X SFP interfaces, from port 7 to port 8

Copper Ports: 2 10/ 100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Port-9 and Port-10)

Console: 1 x RJ45 serial port (115200, 8, N, 1)

Reset Button:
< 5 sec: System reboot > 5 sec: Factory default

Power Requirements:
AC 100~240V, 50/60Hz 0.15A
36V DC @ 0.3A, Range: 36V ~ 60V DC

Power Consumption:
Max. 11.2 watts/38.2 BTU (AC input)
Max. 10.8 watts/36.9 BTU (DC input)

Alarm: One relay output for power failure . Alarm Relay current carry ability: 1A @ DC 24V

DI/DO:
2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.
2 Digital Output (DO): Open collector to 24VDC, 100mA max.

ESD Protection: 6KV DC

Dimensions (W x D x H): 330 x 155 x 43.5 mm, 1U high

Weight: 1661g

LED:
System:
　PWR (Green)
　DC 1 (Green)
　DC 2 (Green)
　Fault Alarm (Green)
　Ring (Green)
　Ring Owner (Green)
Per Gigabit SFP Ports: Port 1 to Port 6.
　100 LNK/ACT (Orange)
　1G LNK/ACT (Green)
Per Gigabit SFP Ports: Port 7 to Port 8.
　100 LNK/ACT (Orange)
　1G/2.5G LNK/ACT (Green)
Per Gigabit RJ45 Ports: Port 9 to Port 10.
　10/100 LNK/ACT (Orange)
　1G LNK/ACT (Green)

Switch Architecture: Store-and-Forward

Switch Fabric: 26Gbps/non-blocking

Throughput (packet per second): 19.3Mpps @ 64Bytes packet

Address Table: 8K entries, automatic source address learning and aging

SDRAM: 256Mbits

Flash: 64Mbytes

Flow Control:
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex

Jumbo Frame: 9KB

Operating:
Temperature:
　-10 ~ 60 degrees C for DC power input
　0 ~ 50 degrees C for AC power input
Relative Humidity:
　5 ~ 95% (non-condensing)

Storage:
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
