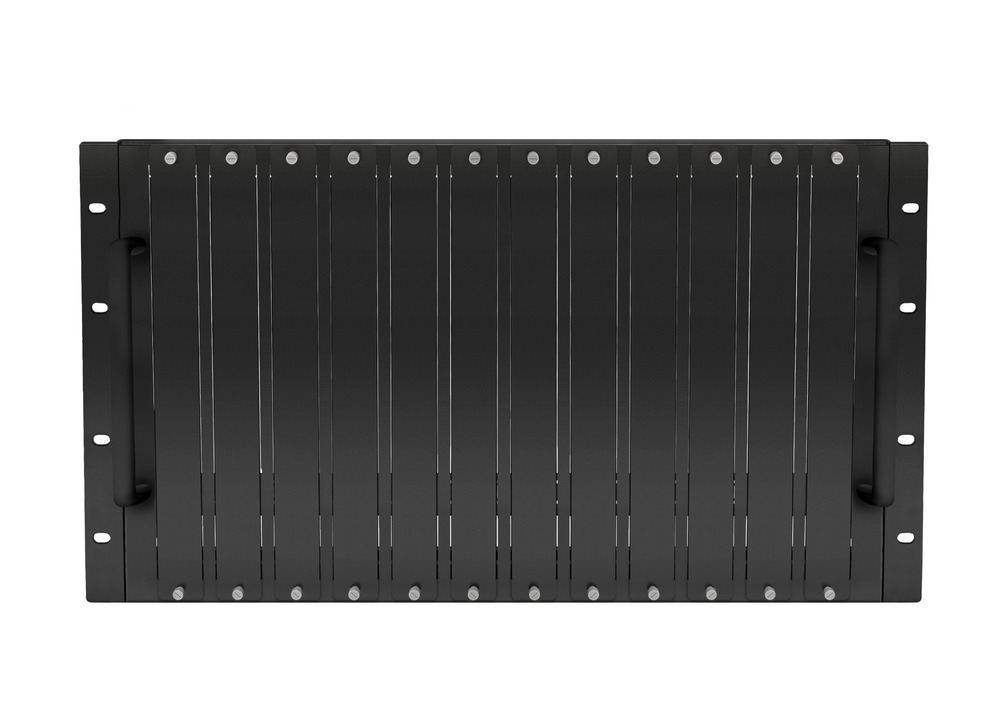

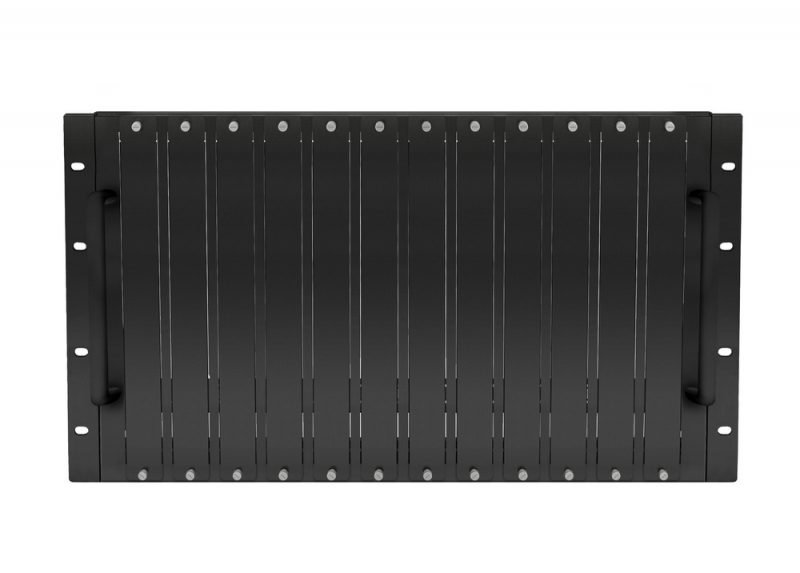

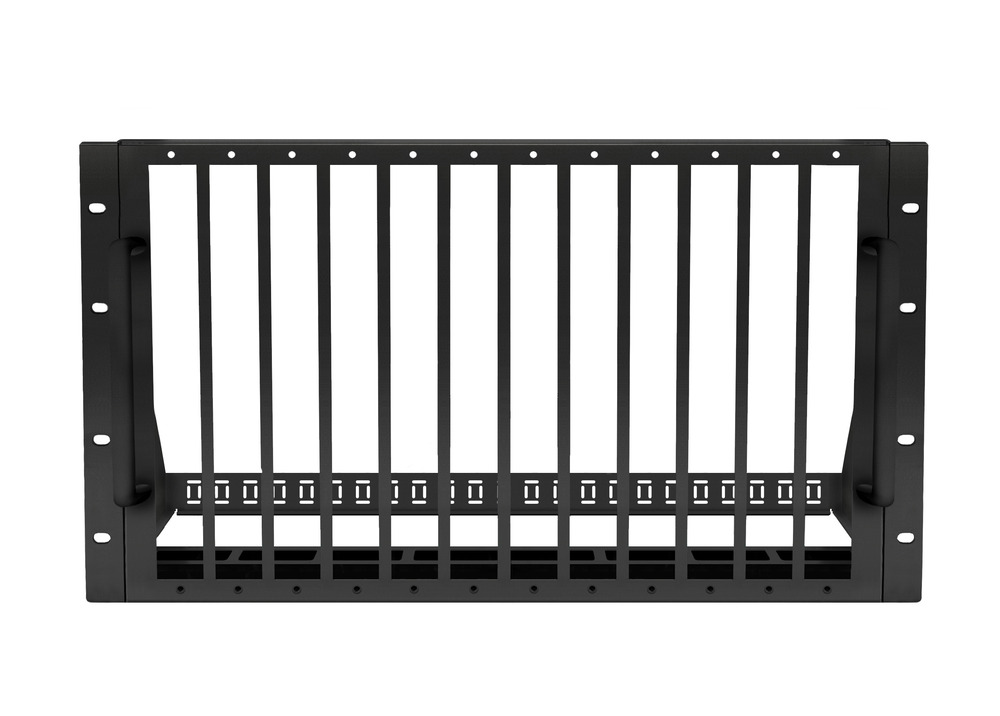

6U/12 Slot Rack Mount for NetworkHD™ 100/250/400/500/600 Series – NHD-000-RACK4
6U/12 Slot Rack Mount for NetworkHD™ 100/250/400/500/600 Series
The NHD-000-RACK4 is a 6U rack mount that provides a clean installation for up to 12 NetworkHD 100 Series, 250 Decoder, 400, 500 and 600 Series encoders or decoders. The NHD-000-CTL NetworkHD controller is also compatible allowing for all required devices to be installed in a single location.
The slimline and thermally optimized design helps keep your centralized NetworkHD solution perfectly organized.
Specifications
DIMENSIONS & WEIGHT
Rack Units | Wall Box: 6U
Height With | Without Feet: 265.9mm/10.47in | 265.9mm/10.47in
Width With | Without Brackets: 483mm/19.02in | 440mm/17.33in
Depth With | Without Handles: 188.3mm/7.42in | 150mm/5.91in
Weight (Chassis without Plates): 2.3kg/5.06lbs
