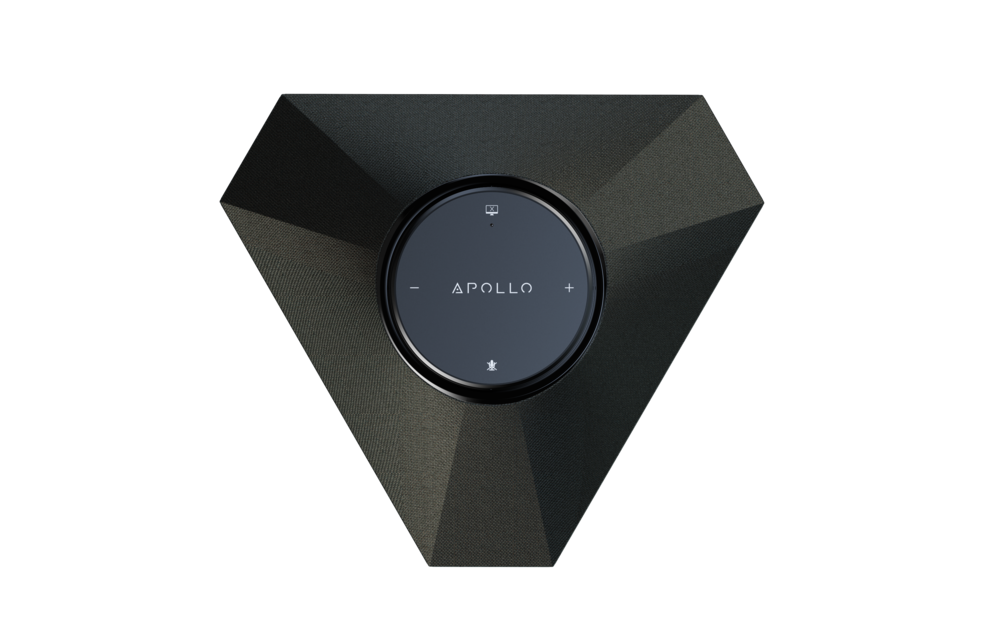

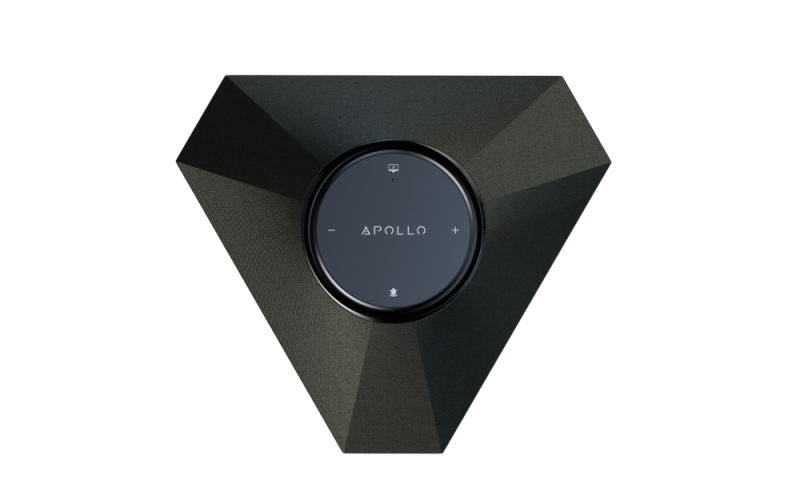

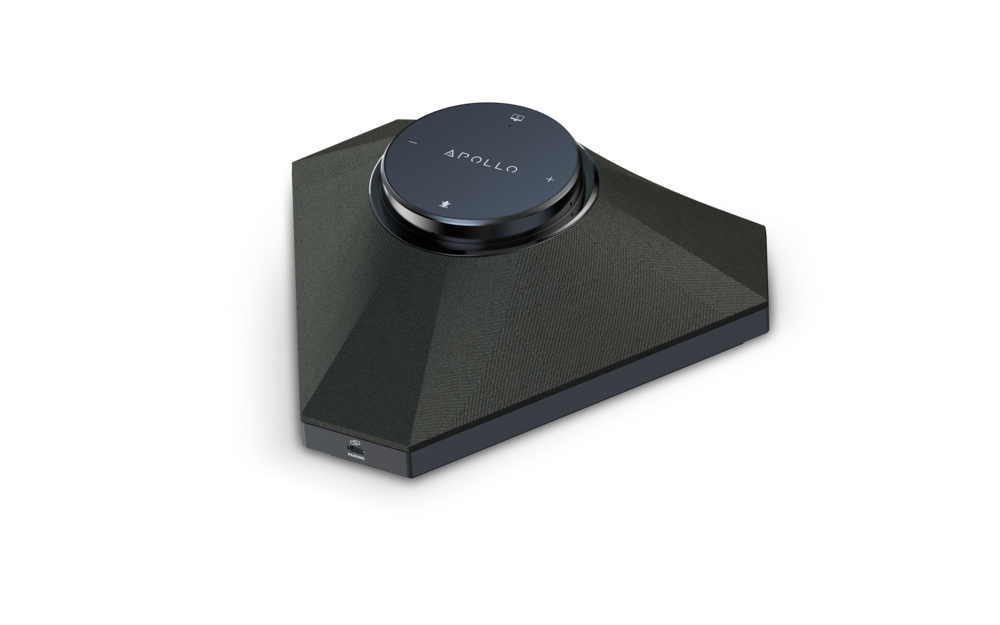

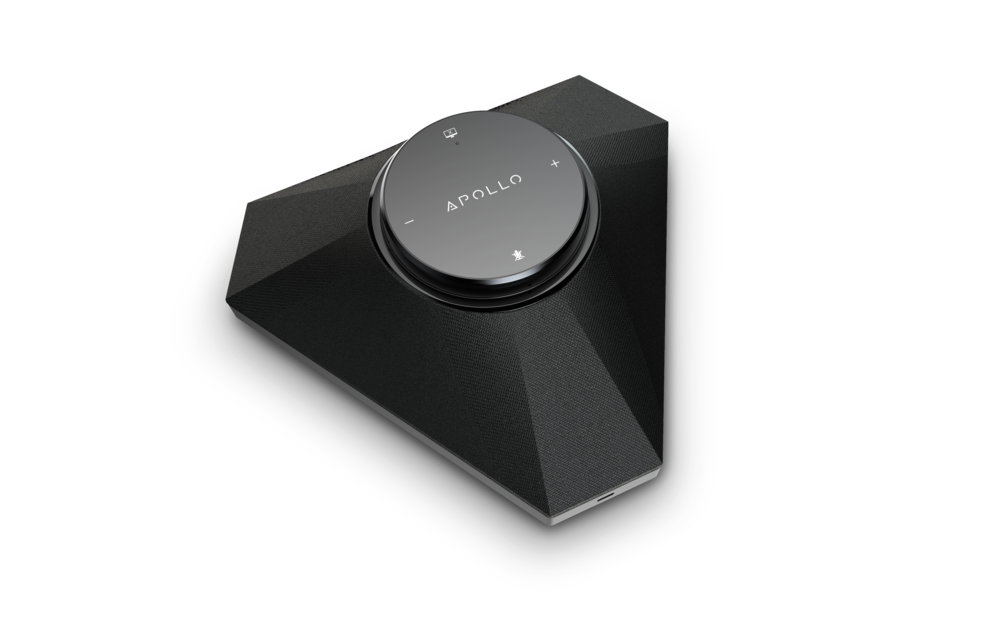

Apollo Series Conference Speakerphone – APO-100-UC

The APO-100-UC is the entry level solution in the Apollo series of unified communication products. The APO-100 is designed for small meeting rooms and huddle spaces. Simply connect the included USB cable to any laptop and instantly have access to a premium conference speakerphone, no drivers or software required. The APO-100 also allows video passthrough via USB. The supplied USB-C cable can be used natively with USB-C equipped devices, or with a standard USB-A 3.0 port using Display Link technology. Use the capacitive touch buttons on the top of the speakerphone to control volume, mute the microphone and even mute the video from your laptop, tablet, or smart phone.

Specifications
AUDIO & VIDEO
Inputs: 1x USB-C

Outputs: 1x HDMI

Video Resolution (Max):
Display Link: 1920x1080p @30Hz
USB-C: 3840x2160p @30hz 8bit 4:4:4
1920x1080p @60hz

Supported Standards: RGB | USB | USB Alt-Mode

Maximum Pixel Clock: 300 MHz

SPEAKERPHONE
Microphone:
360° 4 x Mic Array | AEC, AGC, ANS
Pickup Range: 5m-8m
Frequency Response: 100Hz ~ 20KHz
Sample Rate: 16bit 48KHz

Speaker:
10 watts
78 dB @ 1.5m/4.9ft
Sample Rate: 24bit 48Khz

Control: Capacitive touch volume +/- and microphone mute buttons

COMMUNICATION & CONTROL
USB:
1x USB-C: USB 3.2 Gen 2×1 | Max Bandwidth: 10Gbps (60w max charging)
1x USB-A 3.0 | Max Bandwidth: 5Gbps

POWER
Power Supply: 24V DC 5A

Max Power Consumption: Max: 10w | Max with USB-C charging: 70w
