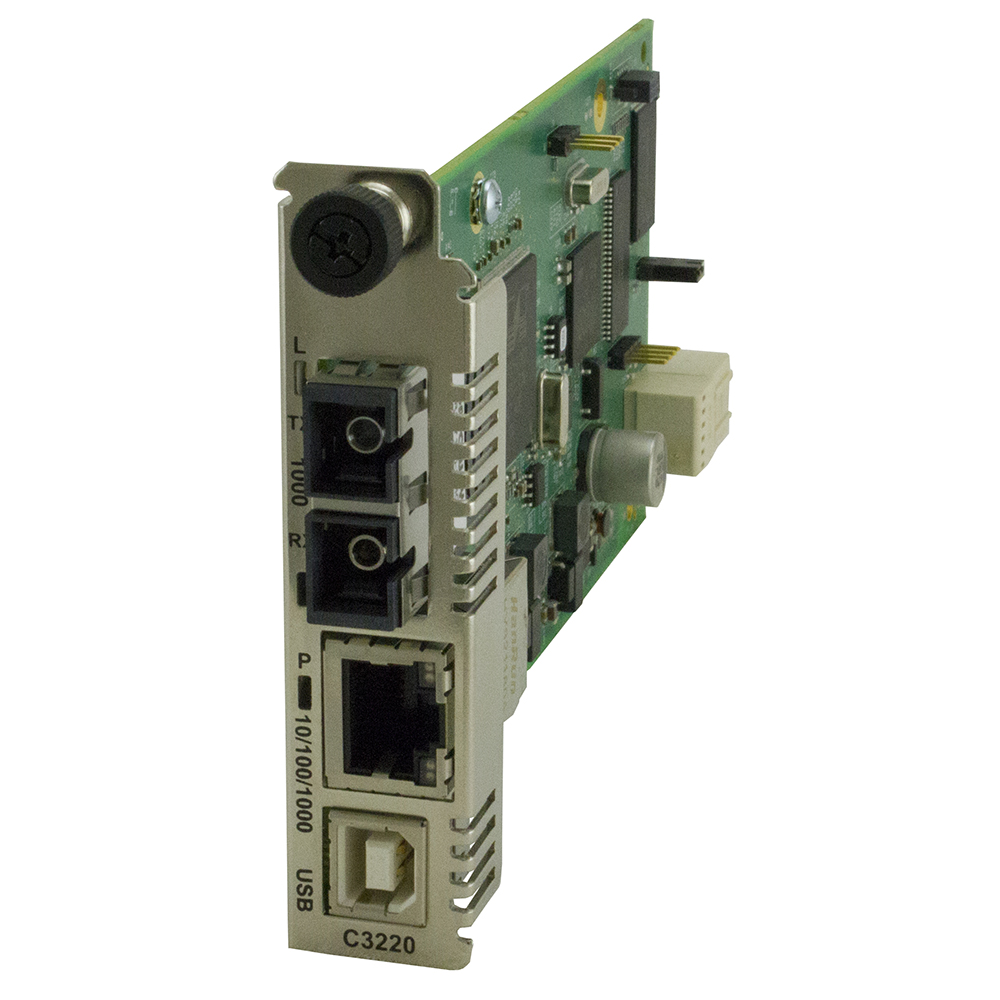

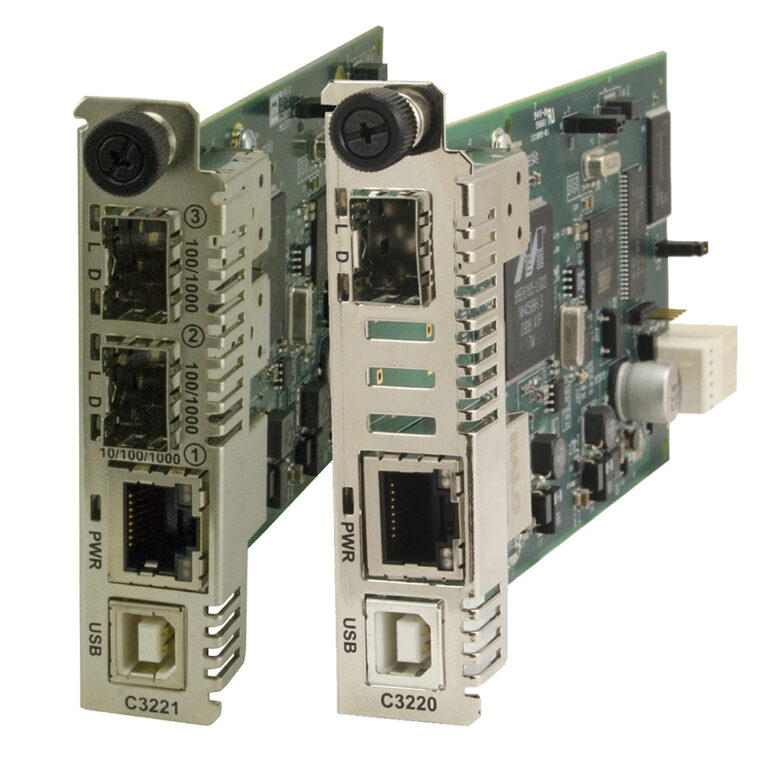

C3220 Series
ION Gigabit Ethernet Remotely Managed NID Module
10/100/1000Base-T to 1000Base-X with OAM/IP-Based Management
The ION C3220 is a managed Network Interface Device (NID) module that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely managed device, the C3220 can be managed individually via an IP address or it can be managed by the ION Management Module when installed in a managed ION chassis. With advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the C3220 provides various methods for secure delivery of Ethernet services in business and mobile backhaul applications.
Specifications
Data Rate:
Copper: 10/100/1000 Mbps
Fiber: 1000 Mbps
Filtering Addresses: 8K MAC Addresses
Max Frame Size: 10,240 bytes
Dimensions:
Width: 0.86” [22 mm]
Depth: 6.5” [165 mm]
Height: 3.4” [86 mm]
Power Consumption: 4.5 Watts
Environment:
Operating: 0°C to 50°C
Humidity: 5% to 95% (non-condensing)
Altitude: 0 – 10,000 ft.
Weight: 1 lb. [0.45 kg]
MTBF:
With Power Supply:
Greater than 65,000 Hours (MIL-HDBK-217F)
Greater than 178,000 Hours (Bellcore)
Without Power Supply:
Greater than 250,000 Hours (MIL-HDBK-217F)
Greater than 687,500 Hours (Bellcore)
