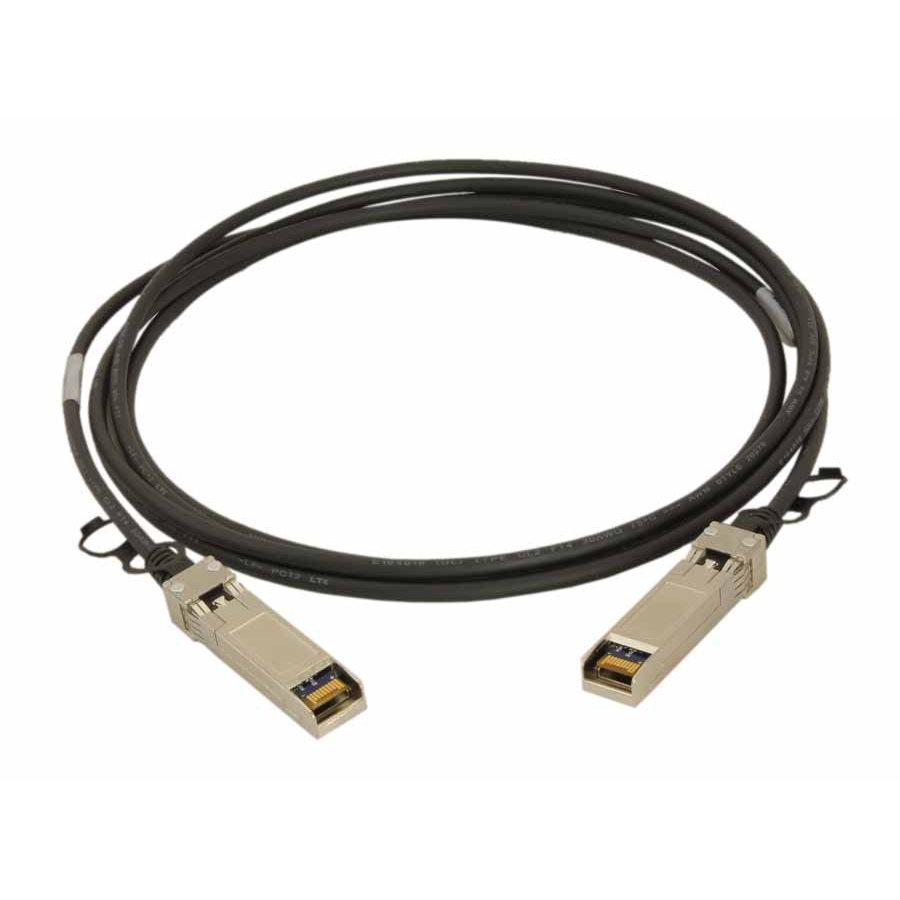

DAC-10G-SFP-01M
Direct Attached Copper Cable Assembly for 10G Networks
The SFP+ copper cable assembly was developed specifically as a cost-effective and low power alternative to optical cables and optical SFP+ modules for short reach links in high-speed interconnect applications.
Specifications
Electrical:
Min. Dielectric Withstand Voltage: 300VDC
Insulation Resistance: 1000Mohms
Current Rating: 0.5 Amp Min/Signal Contact
Flammability Rating: UL 94 V-O
Green Features: RoHS, Lead Free
Shield: Braid/Foil
Plug:
Backshell Material: Nickel-Plated Zinc Diecast
Contact material: PCB with Gold-Plated Pads
Plastic Material: LCP
Latch: Positive Latching w/ Lanyard Pull
Cable:
Conductor: Solid
Wire Gauge: 30 AWG to 24 AWG
Impedance: 100+/- 5 ohms
Construction: Twin axial Cable ODCable
30 AWG = 4.45mm (0.175 in)
28 AWG = 4.7mm (0.185 in)
24 AWG = 5.7mm (0.255 in)
Jacket Type: PVC
Bend Radius: 5x Cable OD
Environment: Operating: -10°C to 70°C
Weight: 1 lb. [0.45 kg]
