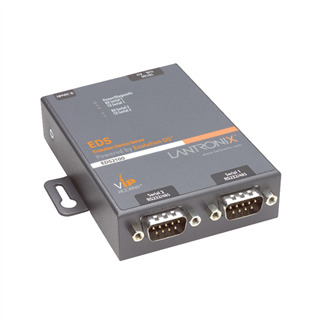

EDS1100 / 2100 Linux SDK

Features
• Provides a robust development environment using industry standard Linux software tools combined with well known GNU toolchains
• Improves the ease and flexibility of application development—shortening time-to-market
• Allows you to leverage the knowledge of a well established Linux development community
• Simplifies the complicated and time consuming process of custom development on Linux-based platforms
• Integrated with our small, proven, and very powerful enclosure

Technical Specifications
Supported Hardware
• EDS1100 / 2100
Host Development Platforms Supported
• Ubuntu 8.04
• Ubuntu 8.10
• Fedora 6
• Fedora 9
• Debian 4.0r4
(There are minimal dependencies on the host Linux distribution.)
Toolchain
Code Sourcery G++ 4.3-45 Lite Edition provides the entire GNU Toolchain – C/C++ compilers, a flexible assembler, a powerful linker, runtime libraries, and a source and assembly-level debugger.
Toolchain component versions:
• gcc 4.3.2
• gdb 6.8.50
• binutils 2.18.50
• uClibc 0.9.29
Linux
• Kernel version 2.6.26
• Based on uClinux Distribution (20080808)
Device Drivers
• Ethernet
• Serial RS-232 and RS-485
• Configurable Pins Manager
• MTD (Flash support)
• Watchdog
Applications and Libraries
• BusyBox v1.13.2 – shell and various Linux utilities
• Boa v0.94.14RC21 – web server
• Dropbear v0.52 – compact SSH client and server
• inetd – Network Server
• telnetd – Telnet Server
• ftpd v1.4.1 – FTP Server
• dhcpcd v1.3.20 – DHCP Client
• mii-tool v1.9.1.1 – Ethernet Configuration Tool
File Systems
• ROMFS – space efficient read-only filesystem
• JFFS2 – Journaling Flash File System version 2. Supports flash wear leveling and helps prevent corruption from power failures
• NFS – Network File System
• AUFS – layering File System – allows easy separation of applications and their configuration files
Debugging and Testing
• gdbserver – for remote debugging
• iperf v2.0.4 – network performance testing
• tcpdump v3.9.8 – network packet sniffer
Available Lantronix Applications
• Software upgrade utility
• Failure Recovery Framework – Solves the maintenance and deployment issues of devices in the field by allowing recovery of failed devices to a known good state over the network. This provides an additional layer of robustness for applications deployed on XPort Pro.
Provided Sample Programs
• CP Manager – GPIO control
• Serial to Ethernet (s2e) – serial tunneling over the network
