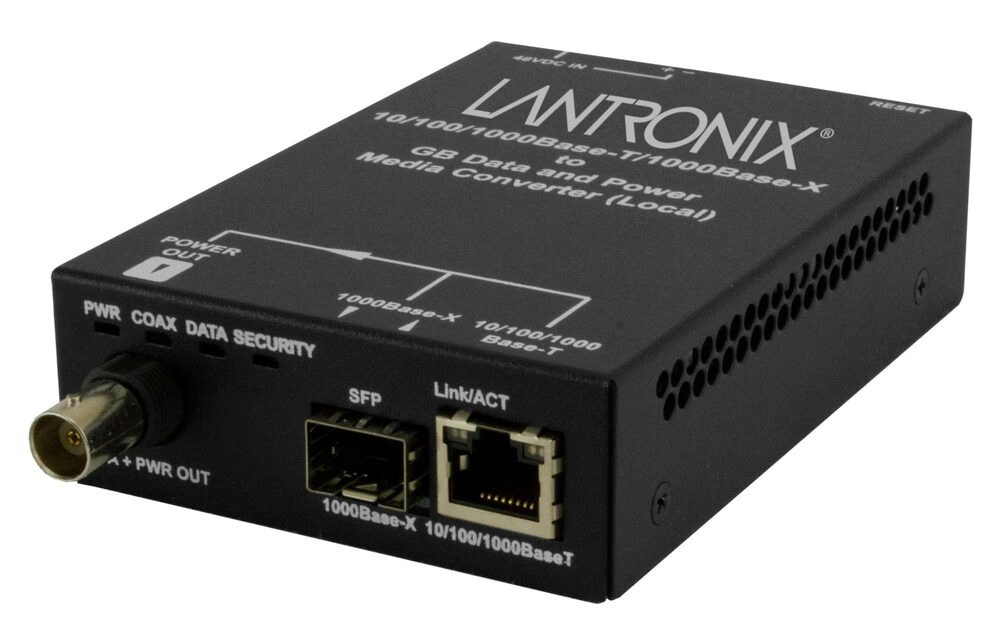

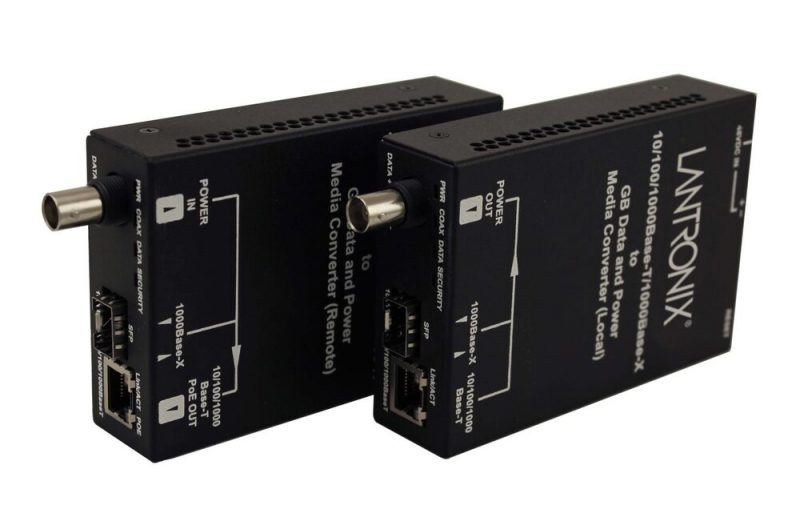

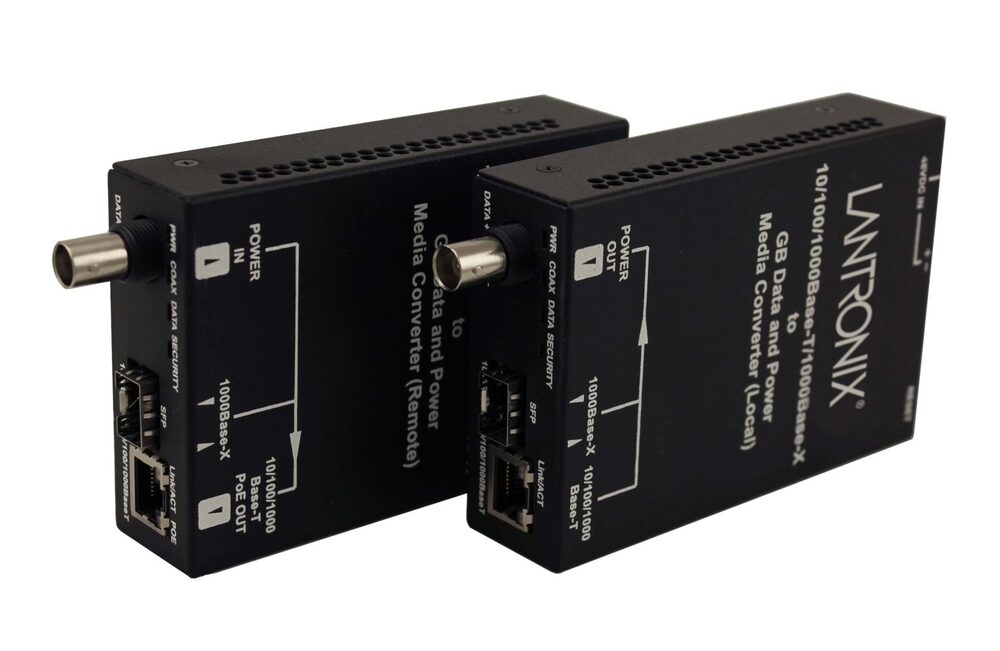

EOCPx Series

Lantronix Ethernet Over Coax Extender With PoE+ provides the ability to quickly and easily upgrade older analog surveillance systems with modern PoE powered IP video cameras without the need to replace the wiring infrastructure. These products leverage the existing CCTV 75 ohm coax infrastructure to extend the Ethernet network and provide power to remote camera locations, saving time and money over installing new cable. These extenders communicate at near Gigabit speeds and can also be used in other applications besides surveillance to extend Ethernet networks over an existing coax infrastructure.

Specifications
Ports:
Ethernet: 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP Combo
Coax: 1000Base BNC
PoE: 10/100/1000Base-T RJ-45 PoE+

Status LEDs: Power, Coax Power, Coax ACT, Coax Security, Combo Port Link/ACT, PoE+

Dimensions:
Width: 3.25” [82.5 mm]
Height: 1.25″ [31.75 mm]
Depth: 5.38” [136.7 mm]

Power Consumption:
45 Watts (max)
EOCPSE 4 Watts
EOCPD 4.4 Watts

Power Input: 48 VDC

Ingress Protection: IP30

Environment:
Operating: 0°C to +65°C (Industrial +85°C SFP modules must be used above 50°C ambient temperature)
Storage: -40°C to 85°C
Humidity: 5% to 95% (non-condensing)
Altitude: 0 – 10,000 ft.

Weight: 1.05 lbs. [0.48 kg]

MTBF: Greater than 200,000 MIL-HDBK-217F Hours
