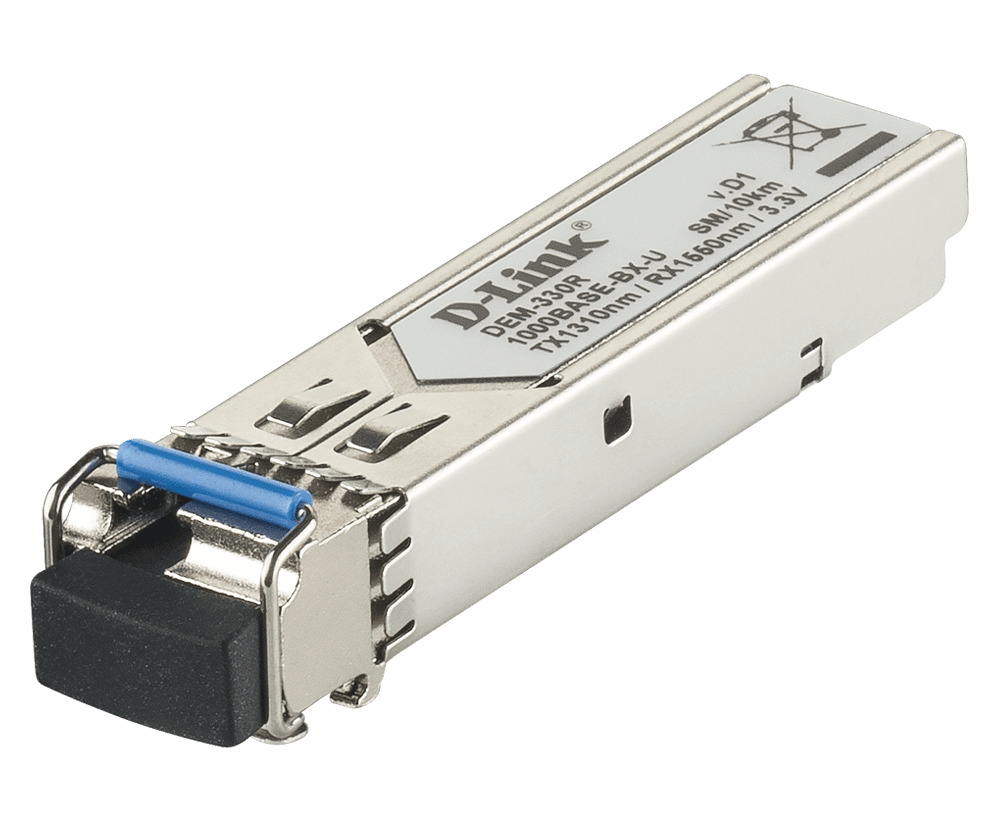

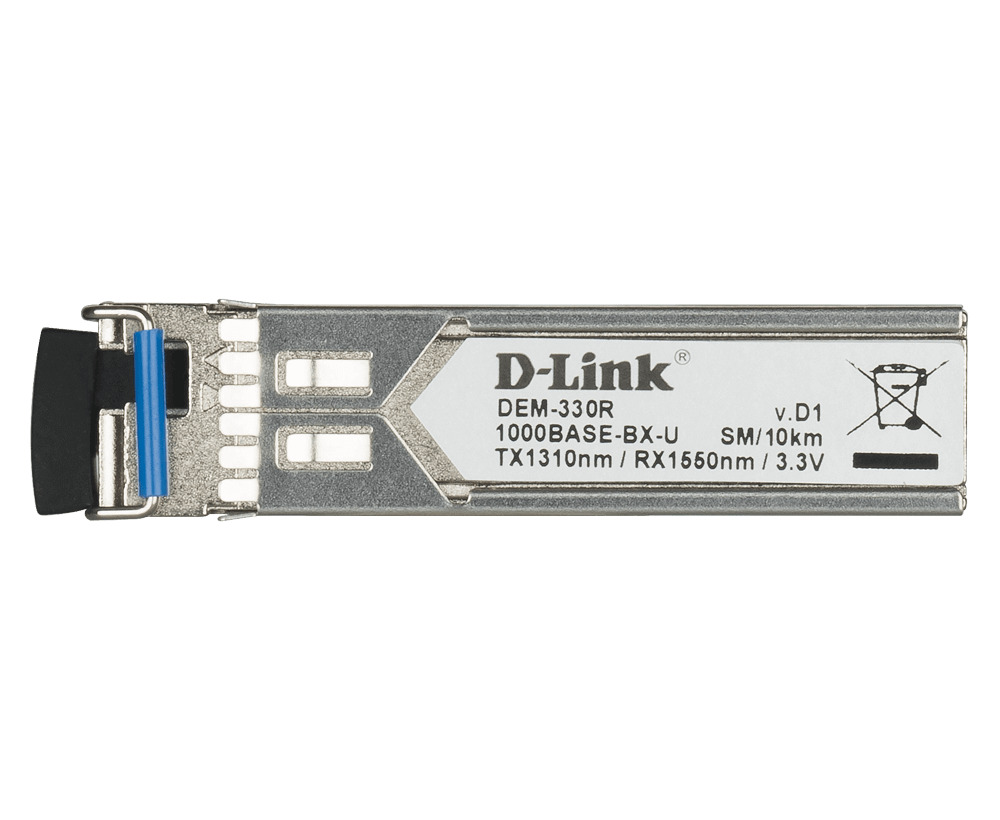

– DEM-330R
Gigabit WDM (BiDi) Single-Mode 10 Km SFP Transceiver
Easy expansion for Gigabit Ethernet networks.
• Compliant with Multi-Source Agreement (MSA)
• Hot-pluggable
• Wavelength TX 1310 nm, RX 1550 nm
• FDA, CDRH, TUV Laser Eye safety certified
• TTL signal detect indicator
• Metal enclosure for lower EMI
• Compliant with RoHS
• Compliant with IEEE 802.3ah
Specifications
Hot Pluggable: Yes
MSA Compliant: Yes
RoHS Compliant: Yes
Compliant Standard IEEE802.3z: 1000BASE-BX-U
Transceiver Type: SFP
Fiber Channel FC-PI standard: 100-SM-LC-L
Fiber Media support: Single-Mode
Distance: 10KM
Speed: 1.25Gbps
connector Simplex: LC Connector
single/bi Direction WDM: Bi-direction
Wavelength: TX: 1310nm RX: 150nm
Output Optical Power (TX Optical Power) MAX.: -3dBm
Interface MIN.: -21 dBm
Input Optical Power (RX Optical Power) MAX.: -3 dBm
Sensitivity: -21dBm
Cable Type single-mode: 9/125um fibe
Power: 3.3V
Max Input Current: 300 mA
Power Budget (MIN Power Budget): 11dB
MAX Power Budget: 18dB
Heat Generated: 1.782kJ/h
MTBF (hours): 880,000
Operation Temperature: 0~70
Storage Temperature: -40~85
Humidity (Operating): 5~95
Humidity (Storage): 5~95
Dimension ( W x D x H ): 13.5*56.6*8.5
Weight: 21+/-1g
