In-Wall Presentation Kit with Control (EU) – SYN-KIT-130-EU
In-Wall Presentation Kit with Control (EU)
This Synergy kit provides an all-in-one solution for BYOD applications. Perfectly suited for education or corporate markets, this kit includes a 3-input HDBaseT in-wall transmitter, HDBaseT receiver and a 2.8” touchscreen controller. Use this kit to create a simple solution for conference rooms, huddle spaces, training rooms, lecture halls or anywhere users will bring their own devices to present.
Features

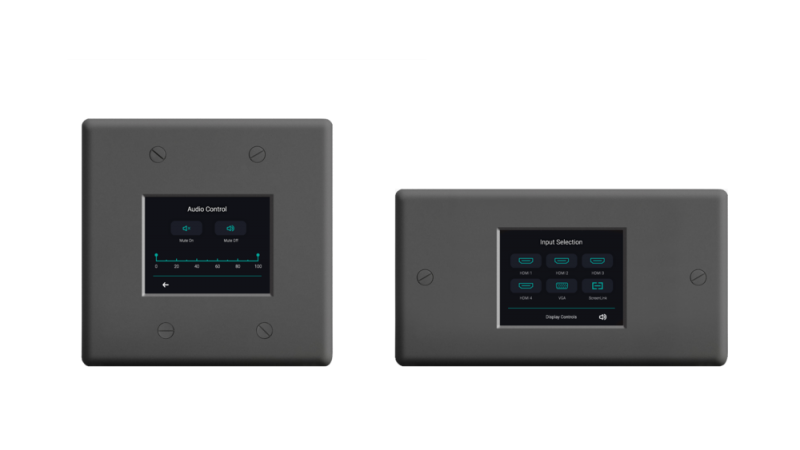

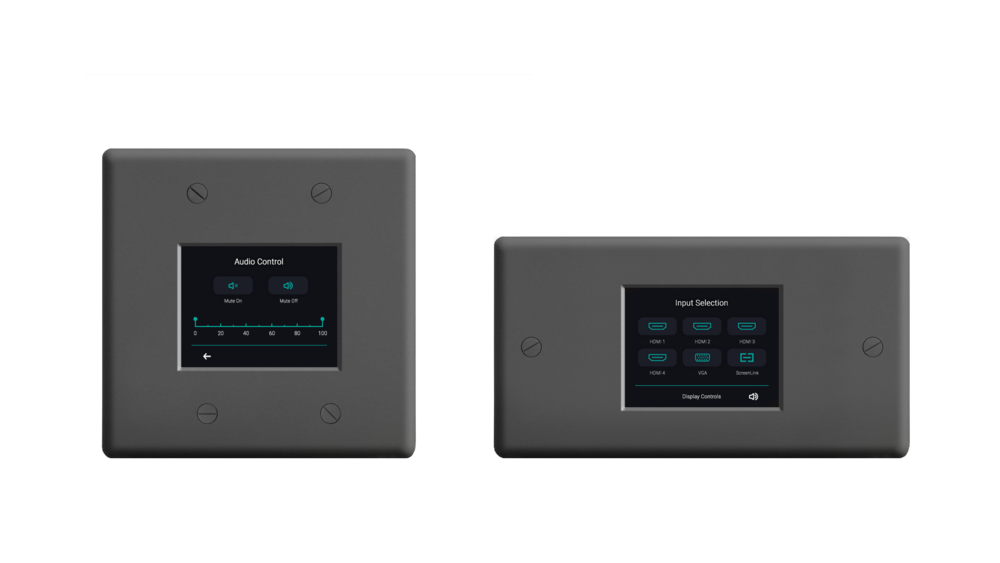

TS-280
• 2.8” color touchscreen perfect for WyreStorm switcher control
• Backlit with automatic power off and wake on touch
• Pre-configured UI’s designed for simple end-user experience
• Easy update: Download UI from wyrestorm.com and load via MicroSD card
• RJ45 connection and RS-422 communication to included RS-232 converter
• 300m/984ft transmission range to host device

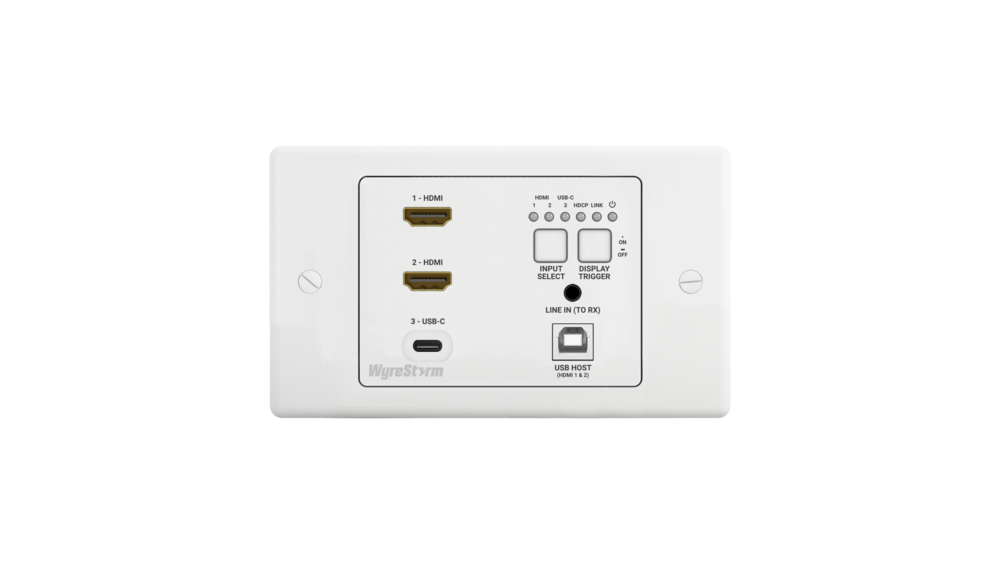

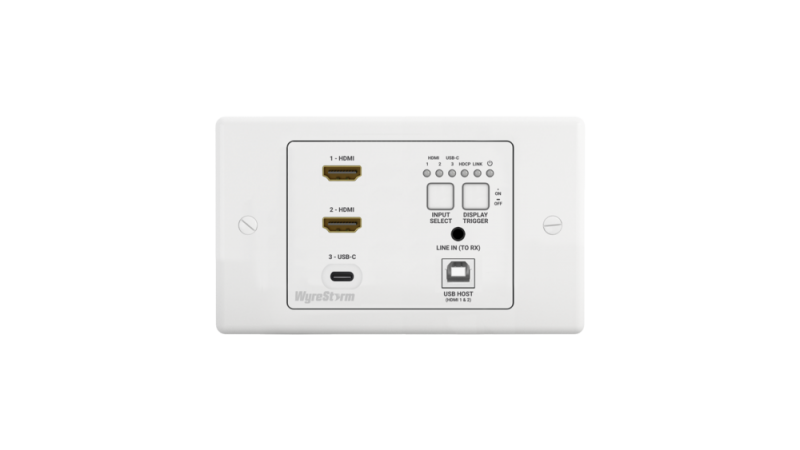

SW-130-TX-US
• HDBaseT switcher/transmitter for video conference meeting rooms
• 3-switchable inputs: 2 HDMI and USB-C
• Supports content up to 4K/60 4:2:0 or 4K/30 RGB 8-bit
• HDCP 2.2 encryption technology
• USB host connections of remote devices such as webcams, smart touchscreens and microphones
• USB-C port supports alt-mode functionality for A/V and USB data
• USB-C charging for connected devices up to 2A
• Additional 2ch analog audio input for sending separate stereo audio to RX
• Automatic or manual CEC triggering for compatible connected screens or projectors

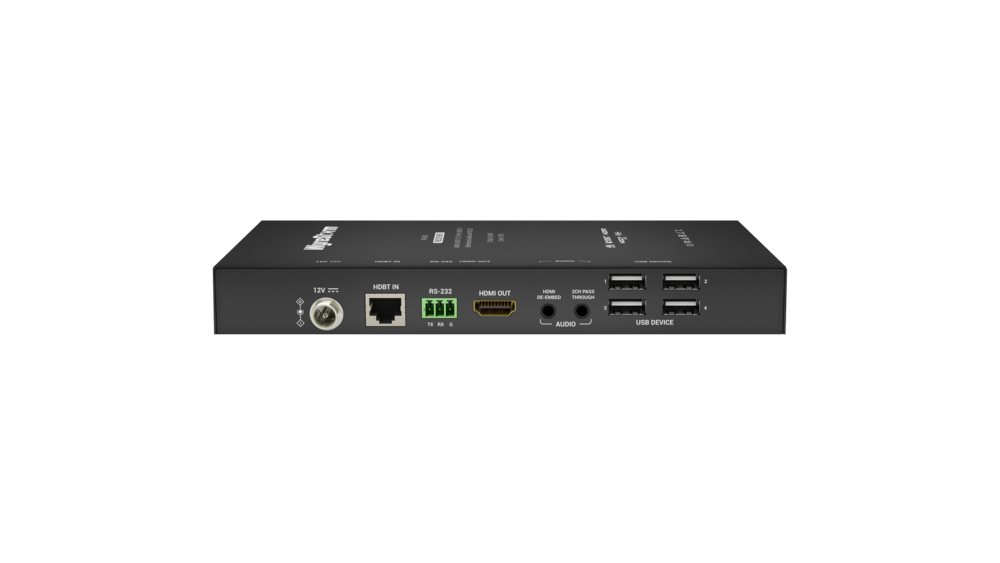

RX-500
• Supports content up to 4K/60 4:2:0 or 4K/30 RGB 8-bit up to 35m/115ft
• PoH enabled to remote power SW-130-TX transmitter
• USB 2.0 passthrough offering 190Mbps transfer and HID extension
• Features 4 USB device ports
• Supports analog audio pass-through from transmitter to receiver
• Supports analog audio de-embed from HDMI output
