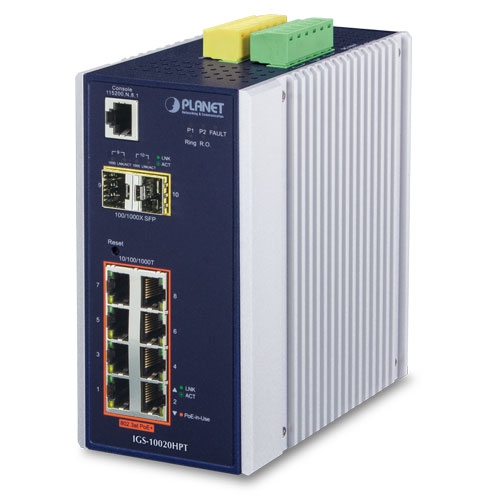

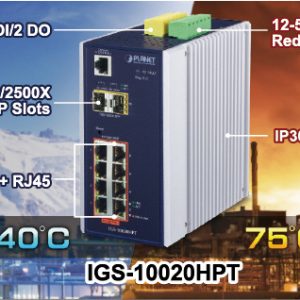

Industrial 8-port 10/100/1000T 802.3at PoE + 2-port 1G/2.5G SFP Managed Switch – IGS-10020HPT

PLANET Industrial 8-port Gigabit 802.3at PoE+ Switch, IGS-10020HPT series, is equipped with a rugged IP30 metal case for stable operation in heavy industrial environments. Thus, the IGS-10020HPT series provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets.

Specifications
Version: 3

Copper Ports: 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

SFP/mini-GBIC Slots: 2 100/1000/2500BASE-X mini-GBIC SFP ports (Port-9 and Port-10)

Console: 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)

Reset Button:
< 5 sec: System reboot > 5 sec: Factory default

Enclosure: IP30 aluminum case

Installation: DIN-rail kit and wall-mount kit

Connector:

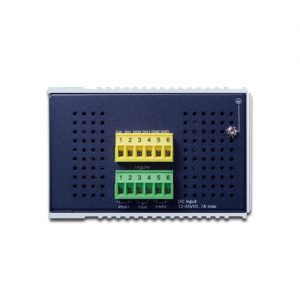

Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND

Alarm: One relay output for power failure. Alarm Relay current carry ability: 1A @ DC 24V

DI/DO:
2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.
2 Digital Output (DO): 　Open collector to 24V DC, 100mA max.

Dimensions (W x D x H): 76.8 x 107x 152 mm

Weight: 1096g

Power Requirements: DC 12-48V

Power Consumption: 218 watts / 743BTU (Full loading with PoE function)

ESD Protection: 6KV DC

EFT Protection: 6KV DC

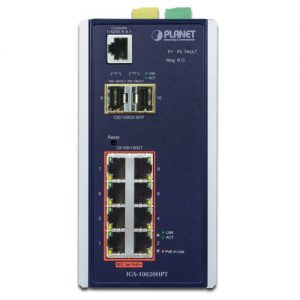

LED Indicator:
System:
　Power 1 (Green)
　Power 2 (Green)
　Fault Alarm (Green)
　Ring (Green)
　R.O. (Ring Owner) (Green)
Per 10/100/1000T RJ45 Ports:
　PoE-in-Use (Amber)
　LNK/ACT (Green)
Per 100/1000/2500BASE-X SFP Interface:
　LNK/ACT (Green)
　1G/2.5G LNK/ACT (Amber)

Switch Architecture: Store-and-Forward

Switch Fabric: 26Gbps/non-blocking

Throughput (packet per second): 19.34Mpps@ 64Bytes packet

Address Table: 8K entries, automatic source address learning and aging

Shared Data Buffer: 4Mbits

Flow Control:
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex

Jumbo Frame: 9Kbytes

Operating Temperature: -40 ~ 75 degrees C
Storage Temperature: -40 ~ 85 degrees C
Humidity: 5 ~ 95% (non-condensing)
