Industrial 8-Port 10/100/1000T Wall-mount Managed Switch with 4-Port PoE+ (-40~75 degrees C) – WGS-804HPT
Industrial 8-Port 10/100/1000T Wall-mount Managed Switch with 4-Port PoE+ (-40~75 degrees C)
Designed to be installed in a wall enclosure or simply mounted on a wall at any convenient location, PLANET WGS-804HPT, an innovative, Industrial 8-port 10/100/1000T Wall-mounted Managed Switch with 4-Port PoE+, offers IPv6/IPv4 dual stack management, intelligent Layer 2 management functions, and user-friendly interface. The WGS-804HPT is able to operate reliably, stably and quietly in any environment without affecting its performance. With a total power budget of up to 144 watts for different kinds of PoE applications and featuring ultra networking speed and operating temperature ranging from -40 to 75 degrees C in a compact but rugged IP30 metal housing, the WGS-804HPT is an ideal solution to meeting the demand for the following network applications:
• Building/Home automation network
• Internet of things (IoT)
• IP surveillance
• Wireless LAN
Specifications
Copper Ports: 8-Port 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
PoE Inject Port: 4-Port with 802.3af/802.3at PoE injector function (Port-1 to Port-4)

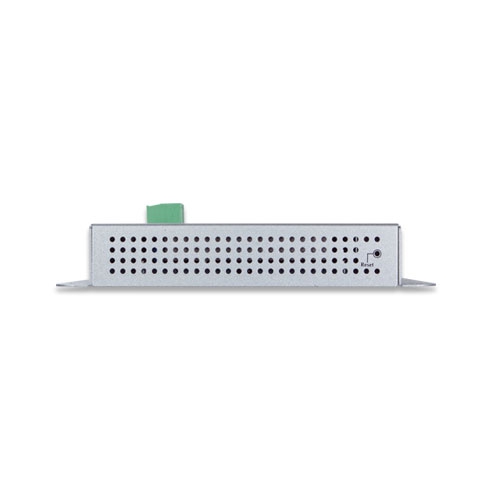

Reset Button:
< 5 sec: System reboot
> 5 sec: Factory default
Connector:
Removable 3-pin terminal block for power input
Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)
Pin 3 for earth ground
DC power jack with 2.0mm central pole
Power Requirements: 48~56V DC, 3A (max.)
Power Consumption/ Dissipation: Max. 152 watts/519 BTU
Dimensions (W x D x H): 148 x 25 x 134 mm
Weight: 532g
ESD Protection:
Contact Discharge 4KV DC
Air Discharge 8KV DC
Enclosure: IP30 metal

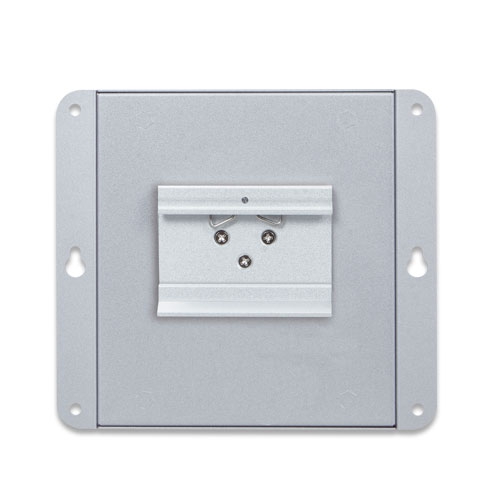

Installation: Wall mount, magnetic wall mount and DIN-rail kit

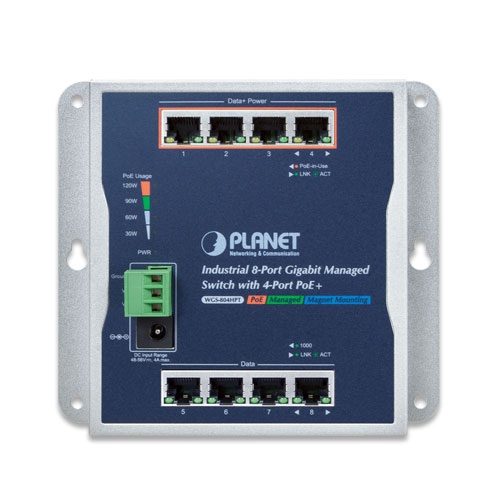

LED:
Power LED:
Power (Green)
PoE Power Usage LED:
30W, 60W, 90W, 120W (Green)
PoE Port (Port-1 to Port-4):
PoE-in-Use (Amber)
LNK/ACT (Green)
10/100/1000BASE-TX Port (Port-5 to Port-8):
1000 (Green)
LNK/ACT (Green)
Switch Architecture: Store-and-Forward
Switch Fabric: 16Gbps/non-blocking
Switch Throughput@64 bytes: 11.9Mpps @64 bytes
MAC Address Table: 8K entries
Shared Data Buffer: 4.1 megabits
Flow Control:
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame: 10KB
Operating:
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage:
Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
