Industrial IP67-rated 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Managed Ethernet Switch (-40~75 degrees C) – IGS-604HPT-RJ

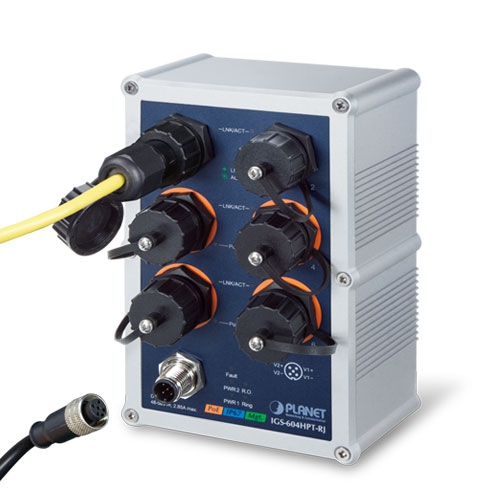

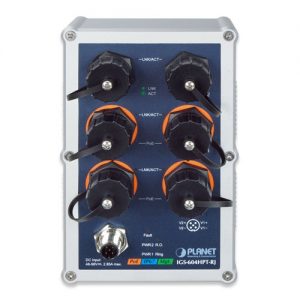

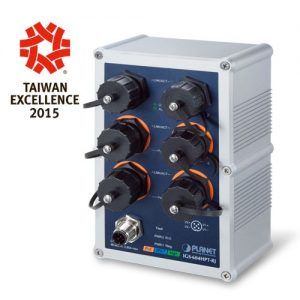

PLANET IGS-604HPT-RJ, an Industrial Managed Ethernet Switch, comes with an IP67-rated industrial case, 4-port 10/100/1000T 802.3at PoE, 2-port 10/100/1000T, and static Layer 3 routing, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. The IGS-604HPT-RJ can be easily mounted on a DIN rail or wall taking up less space. Each of the four Gigabit PoE+ ports provides 36-watt of power, which means a total power budget of up to 144 watts can be utilized simultaneously without considering the different types of PoE applications being employed. It also provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.

Specifications

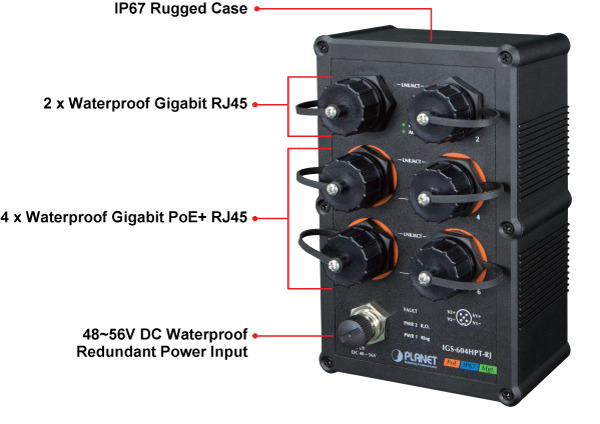

Copper Ports: 6 10/100/1000BASE-T waterproof and dustproof RJ45 auto-MDI/MDI-X ports

PoE Injector Port: 4 ports with 802.3at/af PoE injector function (Port-3 to Port-6)

Switch Architecture: Store-and-Forward

Switch Fabric: 12Gbps/non-blocking

Throughput: 8.9Mpps@64bytes

Address Table: 8K entries, automatic source address learning and aging

Shared Data Buffer: 4Mbits

Flow Control:
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex

Jumbo Frame: 9Kbytes

Reset Button:
< 5 sec: System reboot > 5 sec: Factory default

Dimensions (W x D x H): 103 x 68.3 x 163 mm

Weight: 1069g

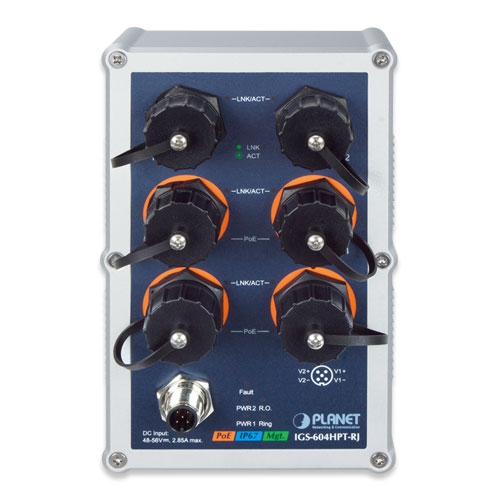

LED:
System:
DC1 (Green), DC2 (Green), Fault (Red)
Ring (Green), R.O. (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 2):
LNK/ACT (Green)
10/100/1000T RJ45 Interfaces (Port 3 to Port 6):
LNK/ACT (Green)
PoE-in-Use (Orange)

Power Consumption: Max. 160 watts/545.9 BTU

Power Requirements: Dual 48~56V DC (>53V DC for PoE+ output recommended)

EFT Protection: 6KV DC

ESD Protection: 6KV DC

PoE Standard: IEEE 802.3af/802.3at PoE/PSE

PoE Power Supply Type: End-span

PoE Power Output:
IEEE 802.3af Standard
– Per port 48V~53V DC (depending on the power supply), max. 15.4 watts

IEEE 802.3at Standard
– Per port 53V~56V DC (depending on the power supply), max. 36 watts

Power Pin Assignment: 1/2(+), 3/6(-)

PoE Power Budget: 144 watts max. (depending on power input)

PoE Ability:
PD @ 7 watts: 4 units
PD @ 15.4 watts: 4 units
PD @ 30.8 watts: 4 units

Operating:
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Storage:
Temperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
