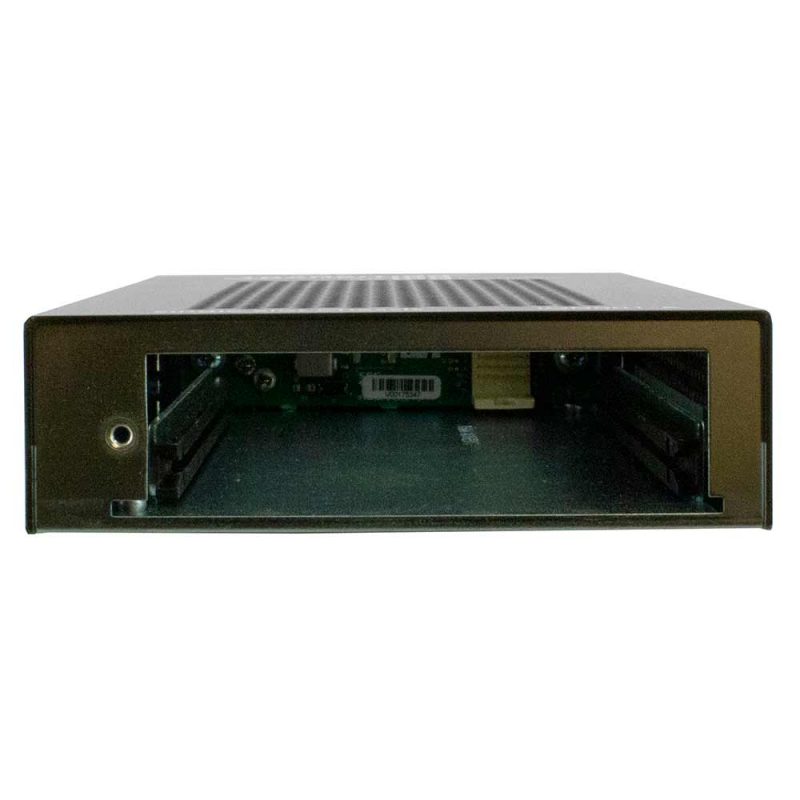

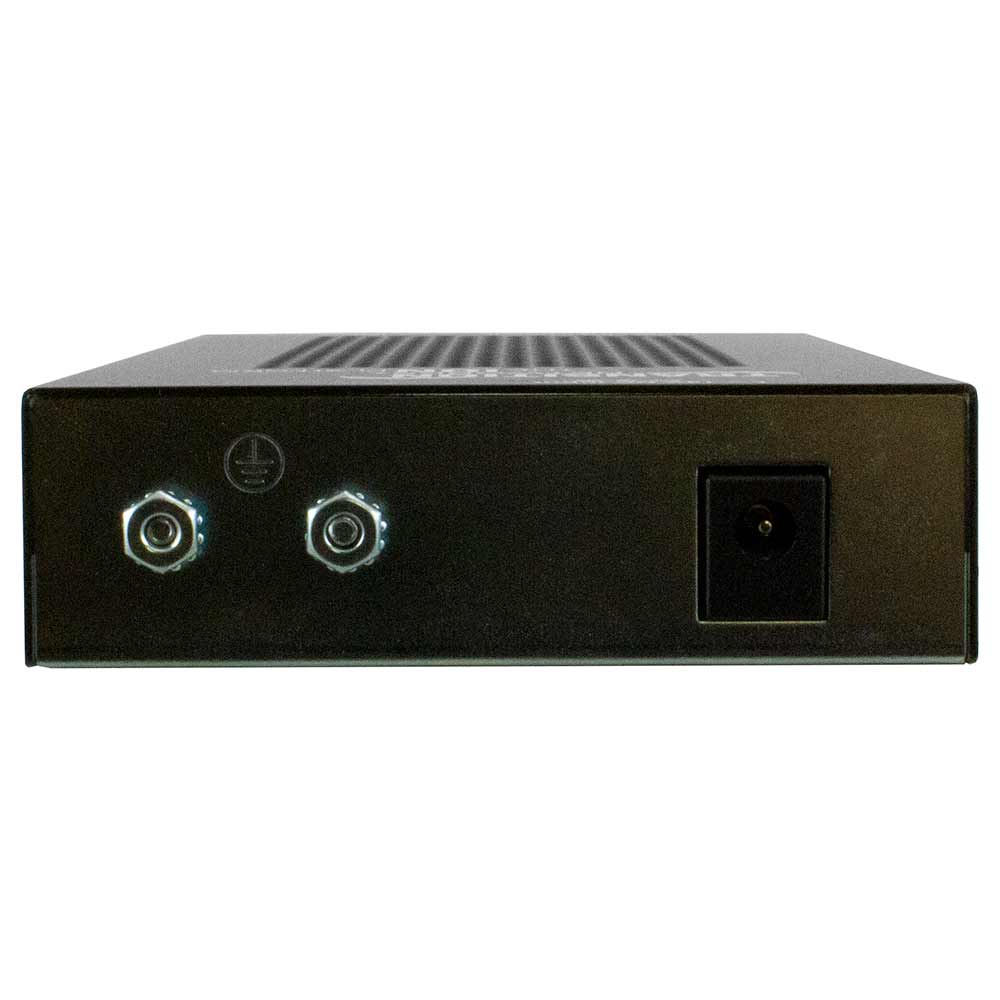

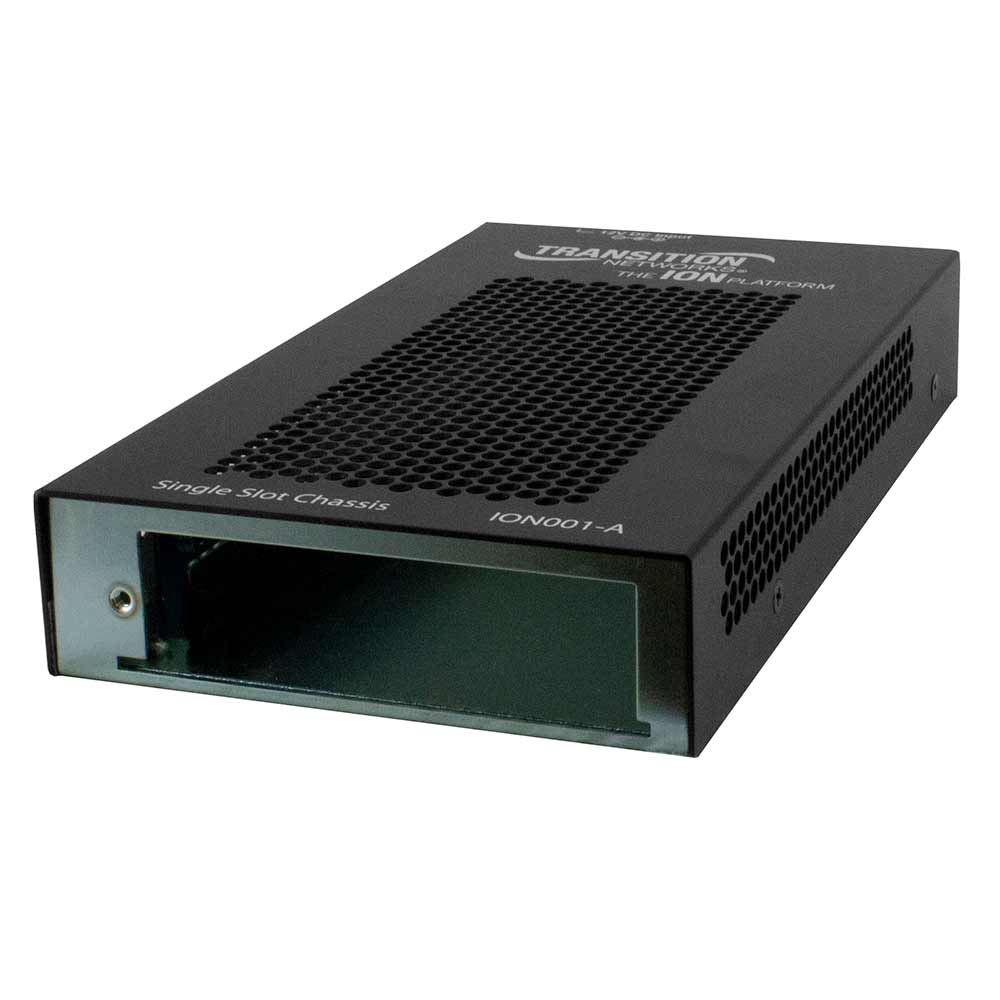

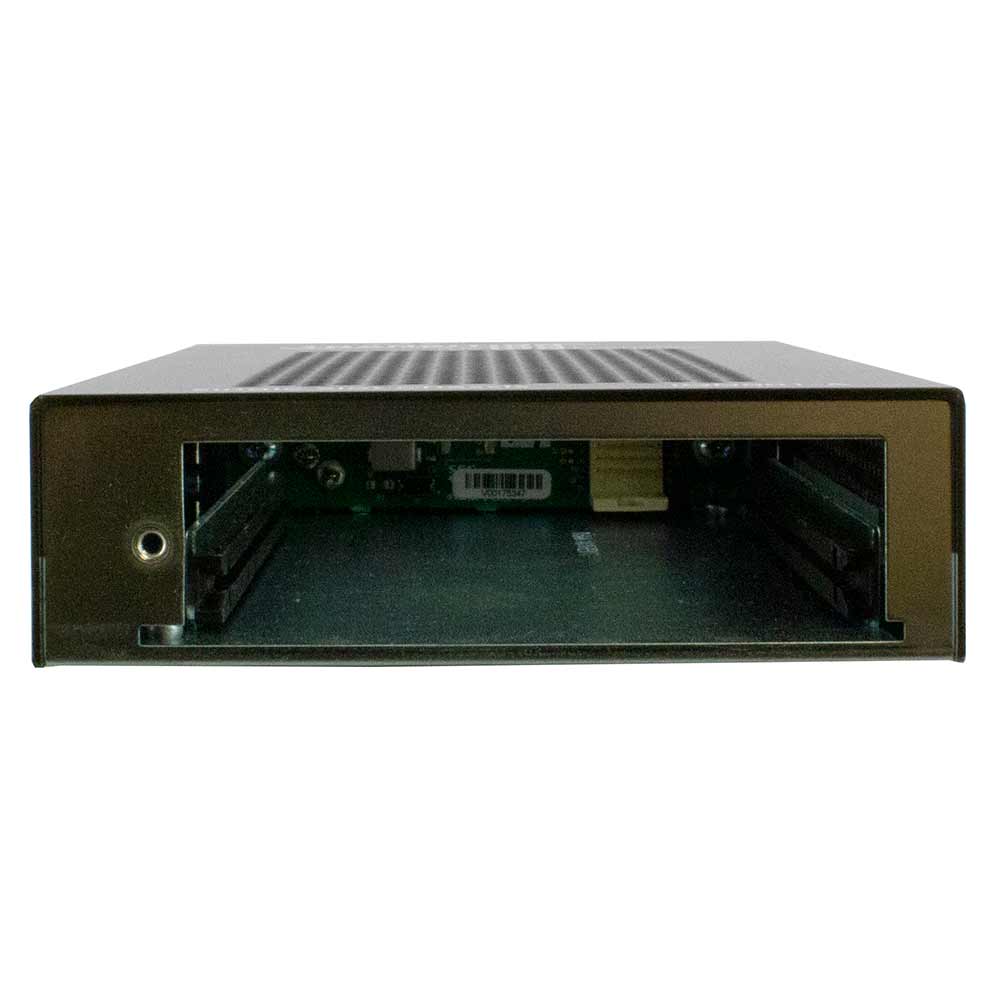

ION001-A

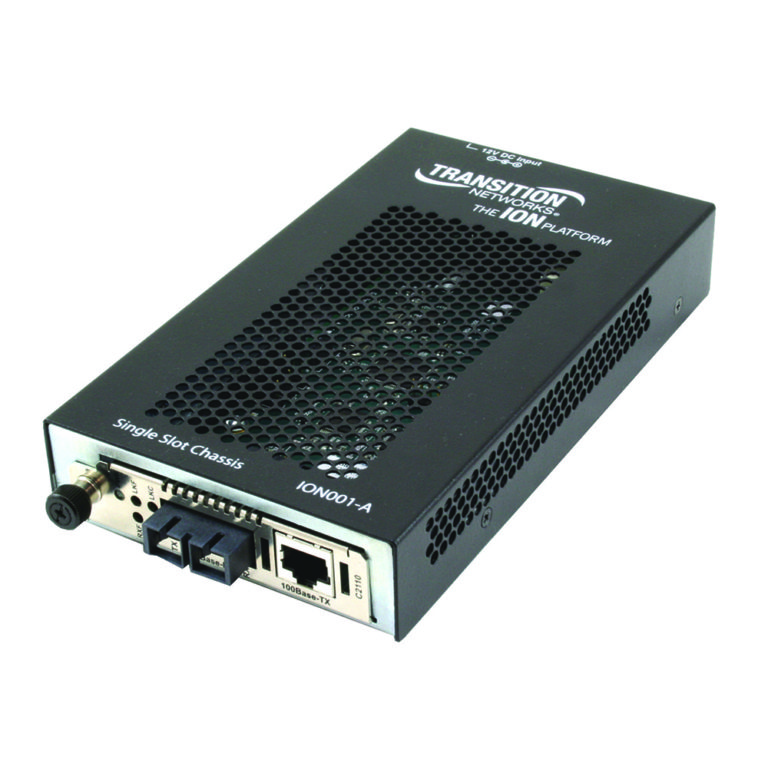

The ION001-A is a 1-slot ION chassis that is designed for network edge deployments, allowing a single ION card to be deployed as a stand-alone unit. This chassis provides a method of mounting one single-wide ION slide-in media converter module and includes an external AC power supply.

Specifications
Slots: (1) Slot in front for ION slide-in modules

Status LEDs: None, Power indicator is on the slide-in card

Dimensions:
Width: 4″ [102 mm]
Depth: 7.1” [180 mm]
Height: 1.2” [30.48 mm]

Power Supply: External AC/DC power supply included, 120-240VAC input, 12VDC Output

Environment:
Operating: 0°C to 50°C
Storage: -40°C to +85°C
Humidity: 5% to 95% (non-condensing)
Altitude: 0 – 10,000 ft.

Weight: 2 lbs. [0.9 kg]

MTBF:
With Power Supply:
191,800 hours (MIL-HDBK-217F)
527,500 hours (Bellcore7 V5.0)
Without Power Supply:
5,600,000 hours (MIL-HDBK-217F)
15,500,000 hours (Bellcore7 V5.0)
