ION002-AD

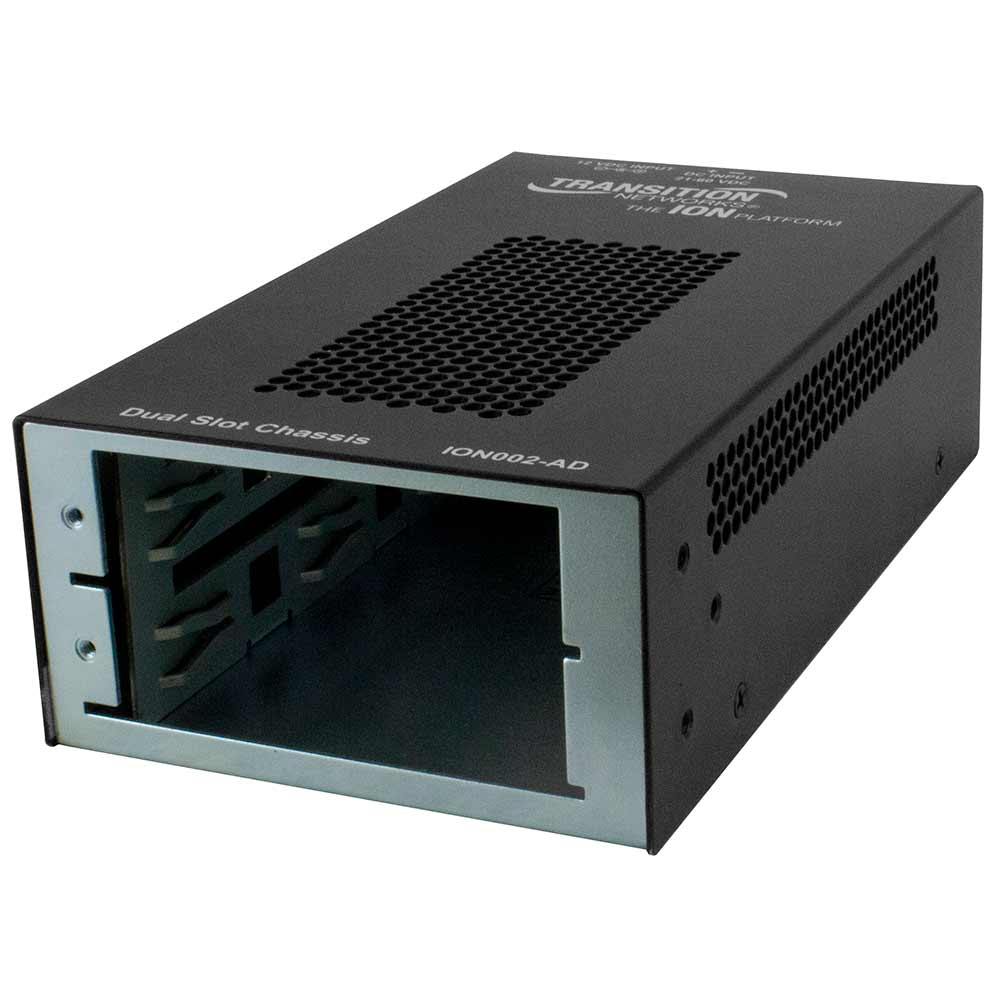

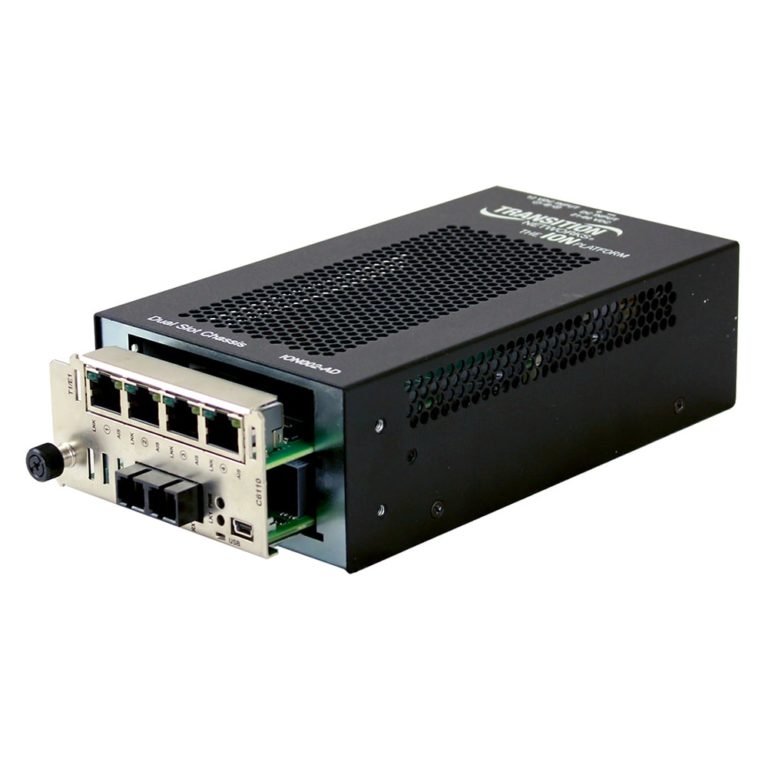

The ION002-AD is a 2-slot ION chassis that is design for network edge deployments, providing a mounting method for 1 double-wide slide-in card or up to 2 single-wide ION slide-in cards. This chassis included 2 power input options to choose from, either AC though the barrel connector or DC through the 2-pin terminal block. The ION002-AD allows 1 or 2 ION slide-in cards to be deployed as stand-alone units.

Specifications

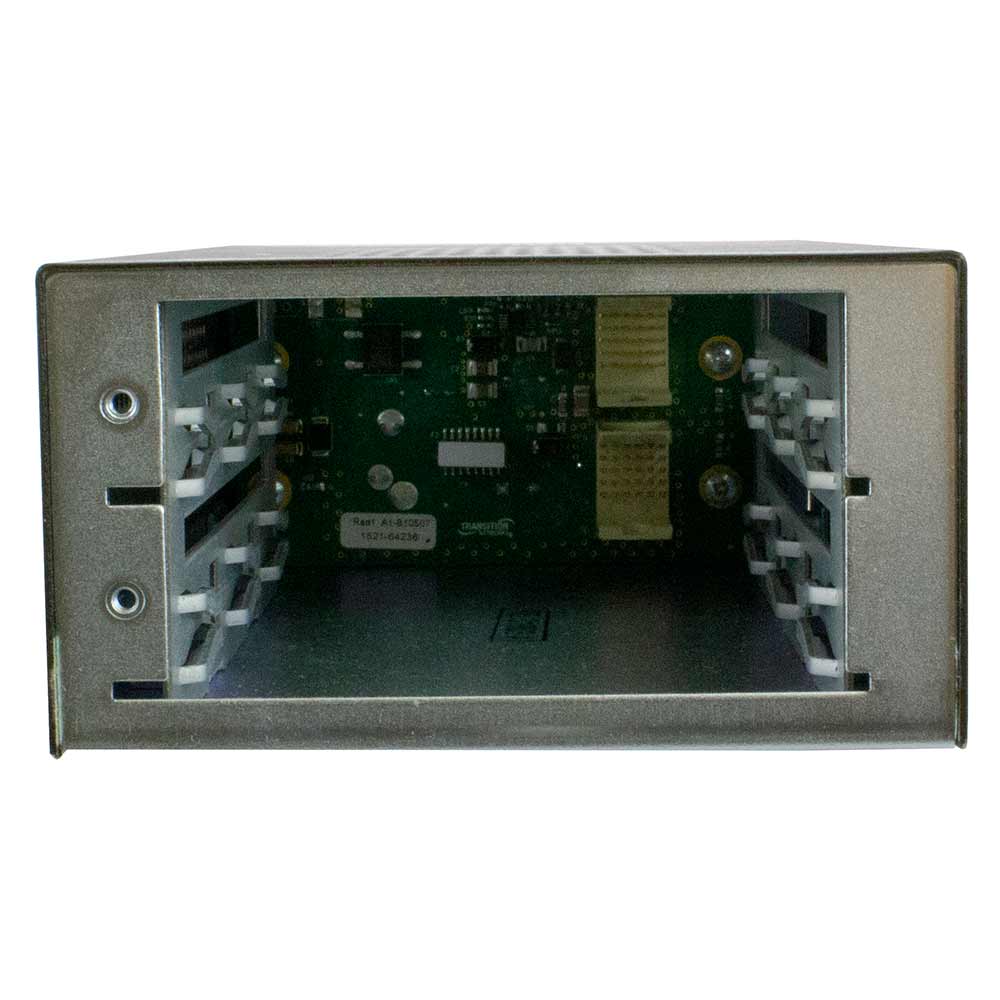

Slots: (2) Slots in front for ION slide-in modules

Status LEDs: None, Power indicator is on the slide-in card

Dimensions:
Width: 4″ [102 mm]
Depth: 7.1” [180 mm]
Height: 2.2” [55.88 mm]

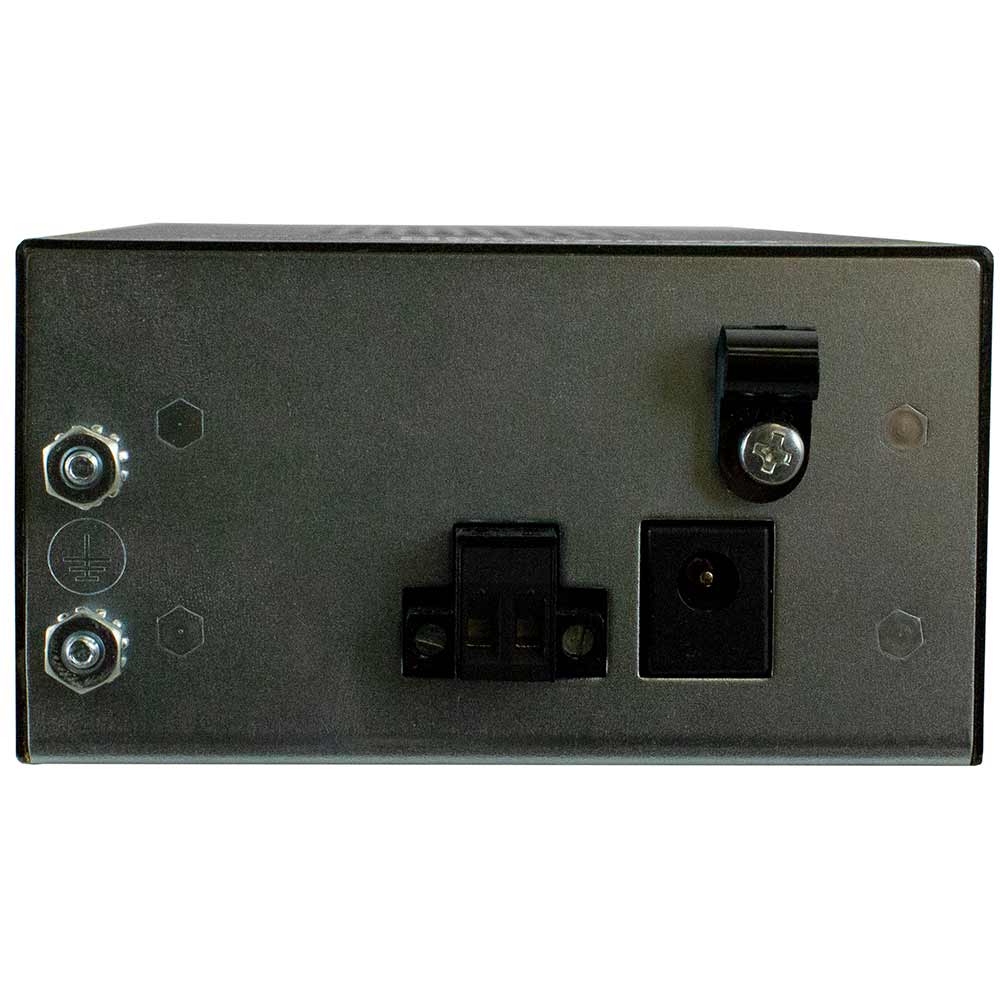

Power Supply: External AC/DC power supply included, 120-240VAC input, 12VDC Output or an optional two-wire 21-60 VDC input terminal block

Environment:
Operating: 0°C to 50°C
Storage: -40°C to +85°C
Humidity: 5% to 95% (non-condensing)
Altitude: 0 – 10,000 ft.

Weight: 3 lbs. [1.35 kg]

MTBF:
With Power Supply:
Greater than 191,800 Hours (MIL-HDBK-217F)
Greater than 527,500 Hour (Bellcore)
Without Power Supply:
Greater than 4,700,000 Hours (MIL-HDBK-217F)
Greater than 13,000,000 Hours (Bellcore)
