IR Link Cable for Control System Integration – CAB-IR-LINK

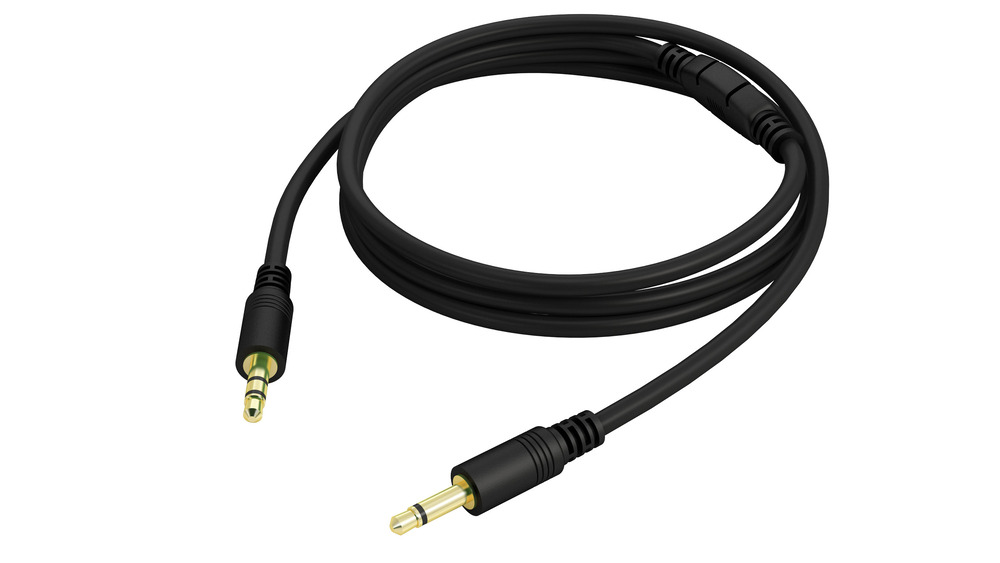

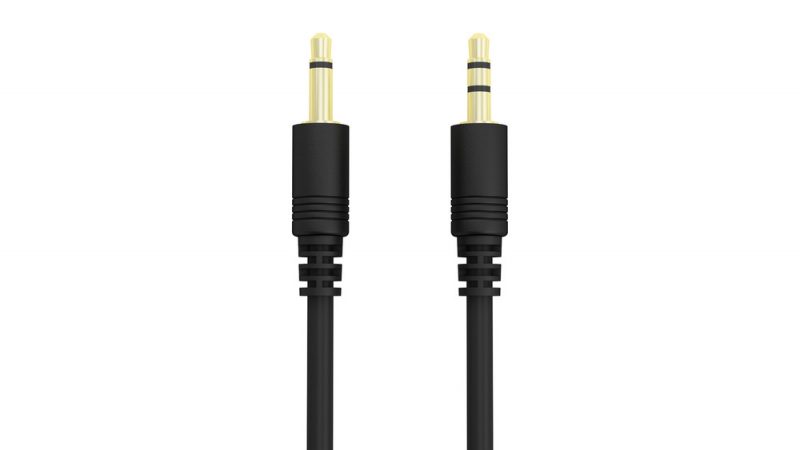

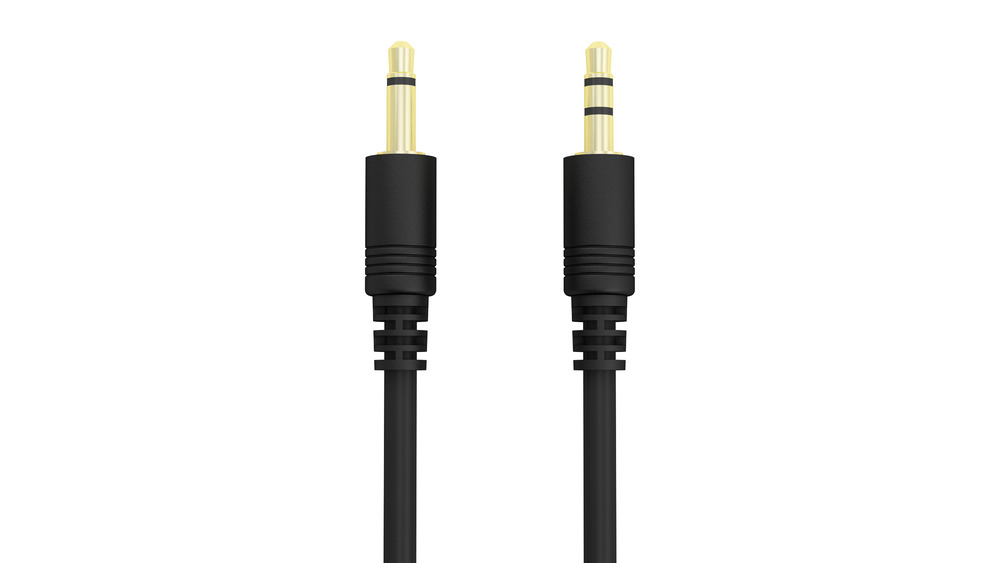

The WyreStorm CAB-IR-LINK integration cable provides integrators with a simple 2-way IR integration between WyreStorm products and any mainstream control system.
Simply plug the CAB-IR-LINK cable from the IR emitter output of any control system to the IR RX port of a WyreStorm matrix or extender set to achieve seamless control system compatibility and integration.

Specifications
COMMUNICATION AND CONTROL
IR:
1x IR In: 3.5mm (1/8in) TRS Stereo
1x IR Out: 3.5mm (1/8in) TS Mono

ENVIRONMENTAL
Operating Temperature: 32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing

Storage Temperature: -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing

Maximum BTU: NA

DIMENSIONS & WEIGHT
Cable Length: 2.0m/6.4ft

Weight: 0.48kg/1.05lbs
