M/GE-ISW Series

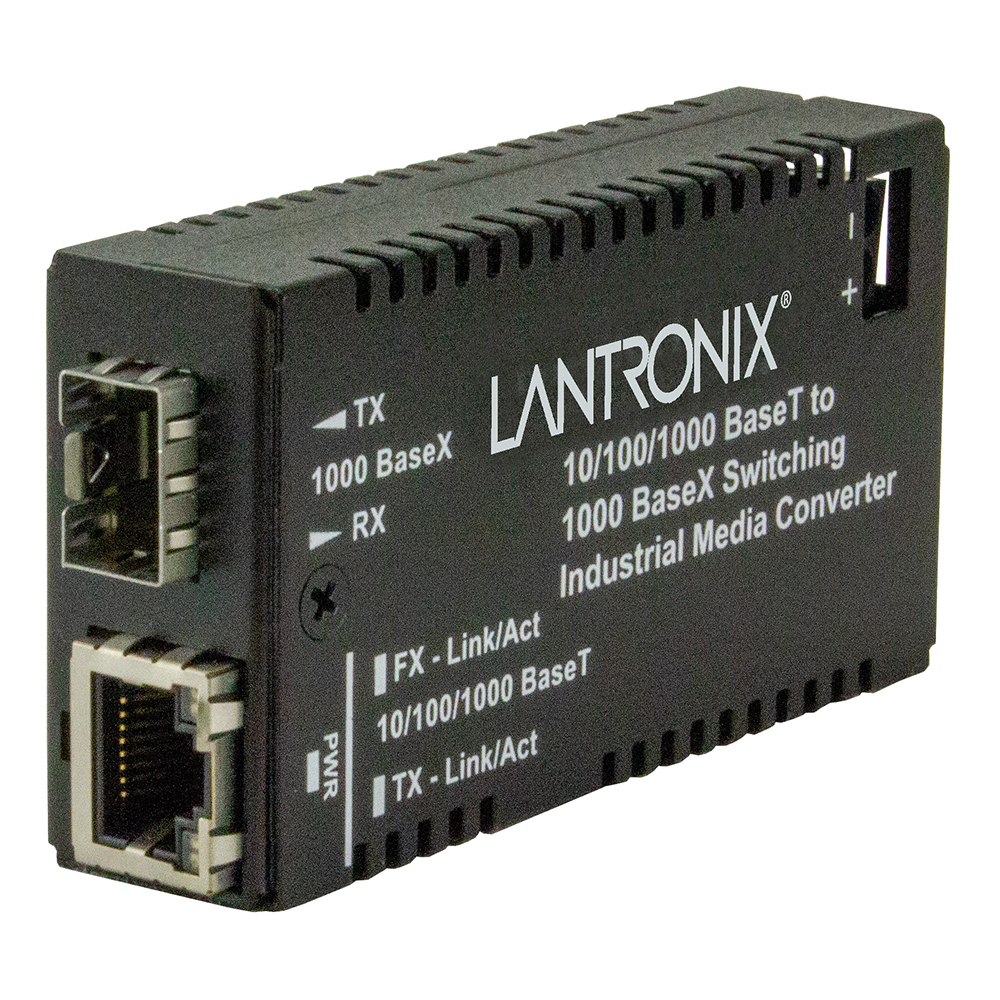

The M/GE-ISW Series is an hardened Gigabit Ethernet Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports for hardened or outdoor environments. With its supported operating temperature range of -40°C to +75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments.

Specifications
Data Rate: 10/100/1000Mbps

Max Frame Size: 10240 bytes

Status LEDs:
PWR (Power): (below RJ-45) ON = Lit for normal operation
FX-Link/Act (Fiber Link/Activity): (Upper Left on RJ-45) On = link; Flashing = Activity
TX-Link/Act (Copper Link/Activity): (Upper Right on RJ-45) On = link; Flashing = Activity

Dimensions:
Width: 1.8” [46 mm]
Depth: 3.3” [85 mm]
Height: 0.85” [22 mm]

Power Consumption: 1.2 Watts

Power Input: 2-pin terminal block Unit accepts 12 – 48 VDC or 24 – 36VAC (External
power supplies sold separately)

Ingress Protection: IP20

Environment:
Operating: -40°C to +75°C
Storage: -40°C to +85°C
Humidity: 5% to 95% (non-condensing
Altitude: 0 – 10,000 ft.

Weight: 0.40 lbs. [0.18 kg]

MTBF:
Greater than 41,680 hours (MIL-HDBK-217F)
Greater than 114,580 hours (Bellcore7 V5.0)
