N-GXE-xx-02 Series

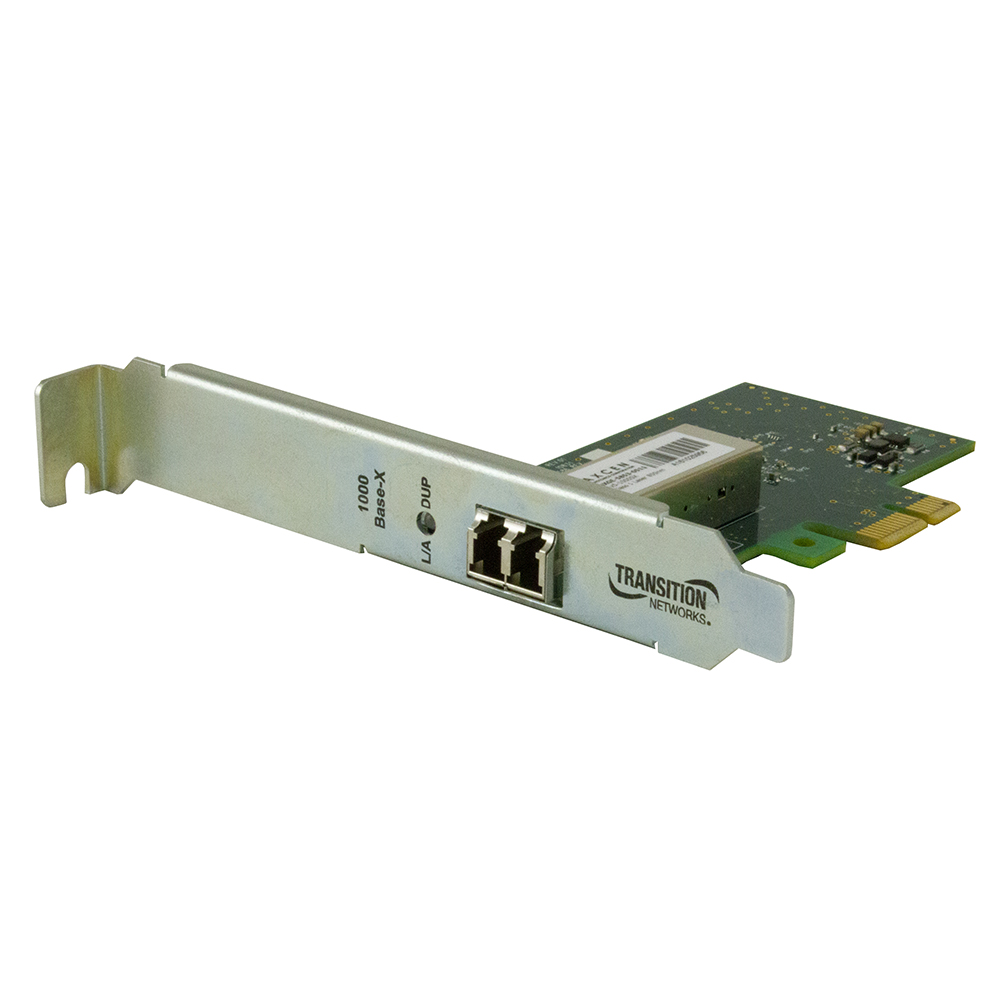

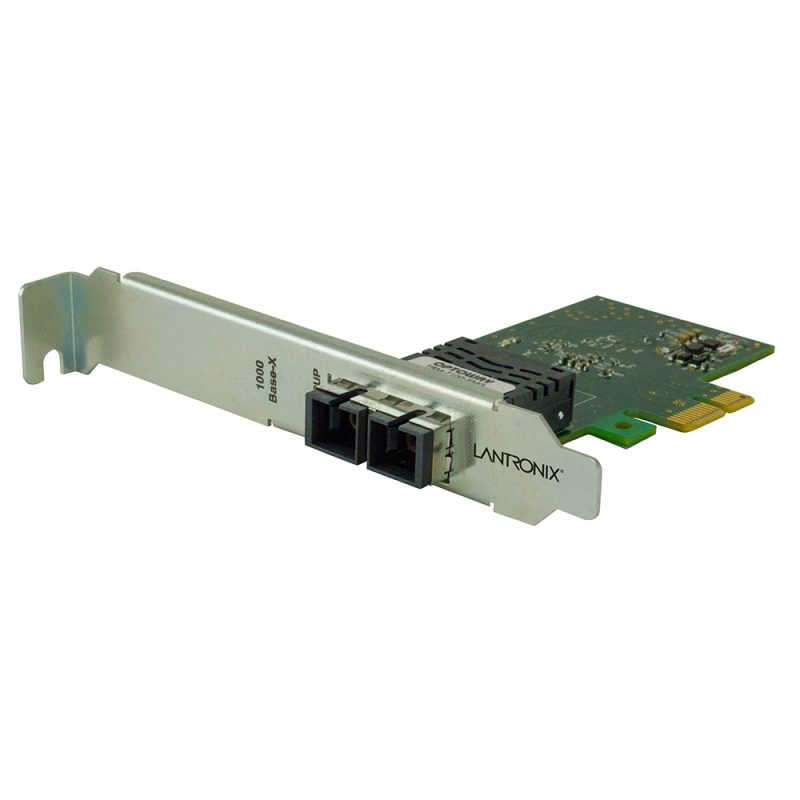

The N-GXE-xx-02 Series is a Fiber Gigabit Ethernet to PCIe bus adapter that fully complies with all IEEE 802.3z and 1000Base-SX standards. It provides up to 2000 Mbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLAN filtering packet processing, link aggregation, smart load balancing, fail-over, and Wake-on-LAN, the adapter provides enhanced performance, flexible configuration and secure networking for users in a standard-based environment. An LED indicator on the bracket displays link status, activity and speed.

Specifications
Bus Slot: PCIe v2.1 x1

Status LEDs:
Fixed Optic Versions:
L/A
On = Communication link
Off = Link Fail
Flash = Link OK and Activity
Green = Full duplex, Yellow = Half duplex

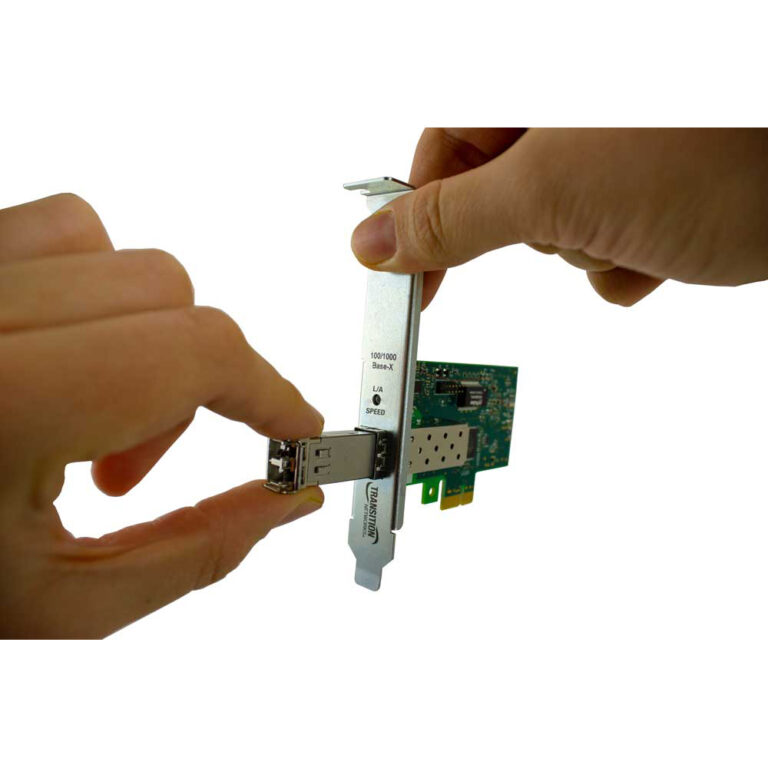

SFP Version:
L/A
On = Communication link
Off = Link Fail
Flash = Link OK and Activity
Green = 1 Gbps; Yellow = 100 Mbps

Software Support: Windows 7, 8, 8.1,10 Pro, Linux, Windows Server 2008, 2008 R2,
FreeBSD,2012

Boot Server Support: PXE and UEFI Boot

Dimensions:
Depth: 4.097” [104.064 mm]
Height: 2.175” [55.245 mm]

Power Consumption: 2.0W PCI-E / ~1 watt

Power Requirement:
Fixed Optic Version: 0.87 Watts (approximately), 264 mA @ 3.3 VDC
SFP Version: 1.66 Watts (approximately), 503mA @ 3.3 VDC

Environment:
Operating: 0°C to 50°C
Storage: -15°C to 65°C
Humidity: 5% to 95% (non-condensing)
Altitude: 0 – 10,000 ft.

Weight: 0.55 lbs. [0.25 kg]

MTBF:
N-GXE-xx-02 (-SC, -LC, -ST)
1246,176 Bellcore7 V5.0 Hours
658,260 Bellcore7 V5.0 Hours
N-GXE-SFP-02
1246,176 Bellcore7 V5.0 (Hours)
658,260 Bellcore7 V5.0 (Hours)
