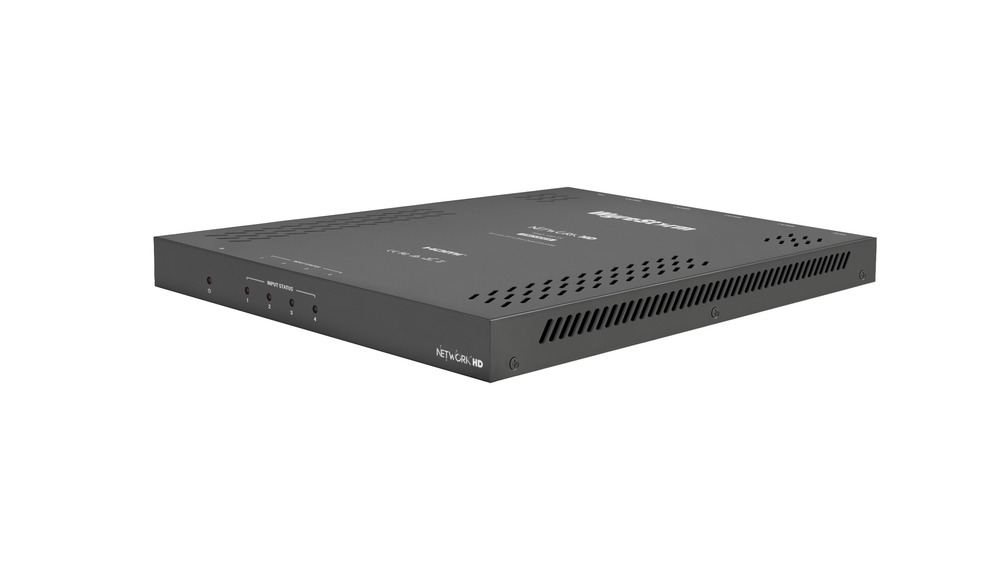

NetworkHD™ 100 Series AV over IP H.264 Quad Encoder – NHD-140-TX

The NHD-140-TX is a 4 input to 4 network stream device encoder compatible with the NetworkHD 100 and 200 Series, an ultra low bandwidth H.264 AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. With its standards-based approach to video encoding, fast and simple system configuration and robust feature set, it provides the best value in networked video distribution.

The NHD-140-TX H.264 encoder is intended for use with 100 or 200 Series H.264 decoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-000-CTL system controller complete control integration is simple.

Specifications
AUDIO & VIDEO

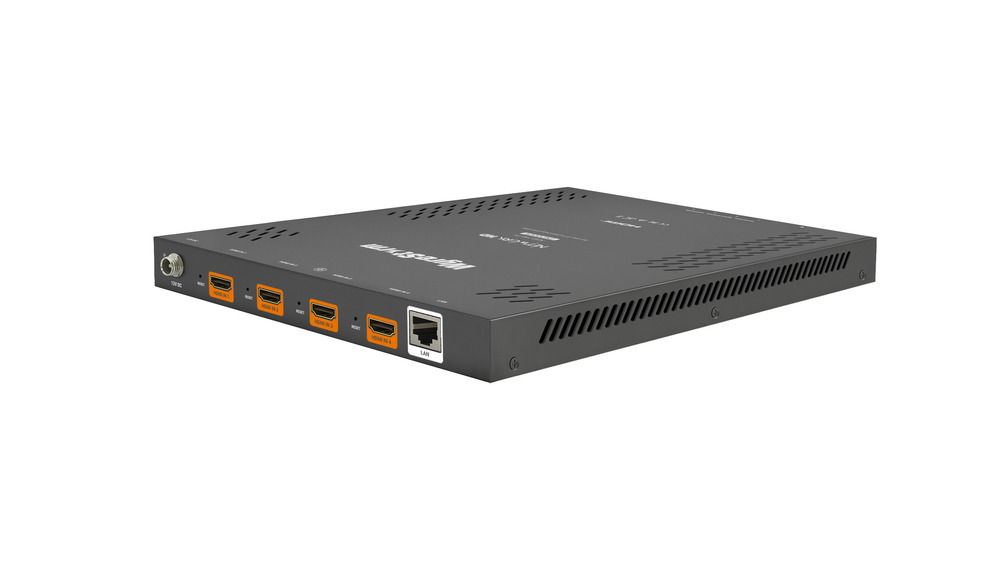

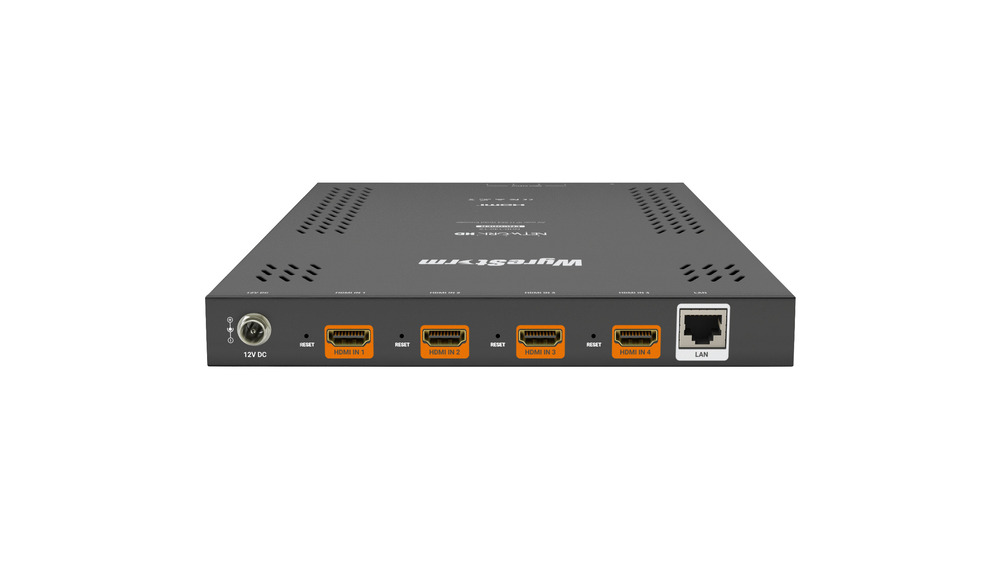

Inputs: 4x HDMI In: 19-pin HDMI Type A

Outputs: 1x LAN: 8-pin RJ-45 (AV Transmission to RX)

Output Video Encoding: H.264

Encoding Data Rate: Max: 30Mb/s – per stream (120 Mb/s total)

End to End Latency (Max): ~79ms (low latency mode) | ~250ms (high quality mode)

Audio Formats: 2ch LPCM 48KHz

Video Resolution (Max):
All resolutions listed are 8bit RGB.
1920x1080p @24/25/30/50/60Hz
1920x1080i @25/30Hz
1280x720p @50/60Hz
720x576p @50Hz
720x576i @25Hz
720x480p @60Hz
720x480i @30Hz
1680×1050 | 1400×1050 | 1280×1024 | 1440×900 | 1280×800 | 1366×768 | 1360×768 | 1024×768 | 800×600 | 640×480 @60Hz:

Maximum Pixel Clock: 165MHz

COMMUNICATION & CONTROL
HDMI: HDCP 1.4

Ethernet: 1x LAN: 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T

POWER
Power Supply: 12V DC

Max Power Consumption: 19.44W

ENVIRONMENTAL
Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing

Storage Temperature: -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

Maximum BTU: 68 BTU/hr

DIMENSIONS & WEIGHT
Rack Units/Wall Box: <1U flat on shelf | 6U in NHD-000-RACK4 | 1U in NHD-140-RACK-1U Height: 25mm/1in Width: 215mm/8.46in Depth: 260.2mm/10.24in Weight: 1.46kg/3.21lbs REGULATORY Safety and Emission: CE | FCC | RCM | RoHS
