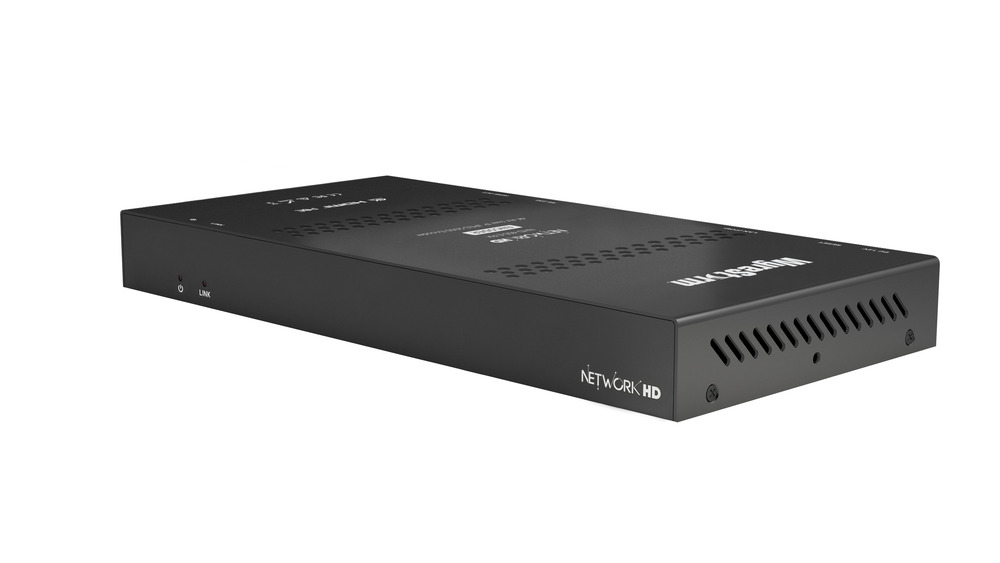

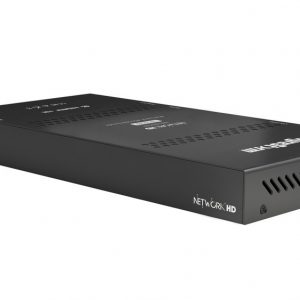

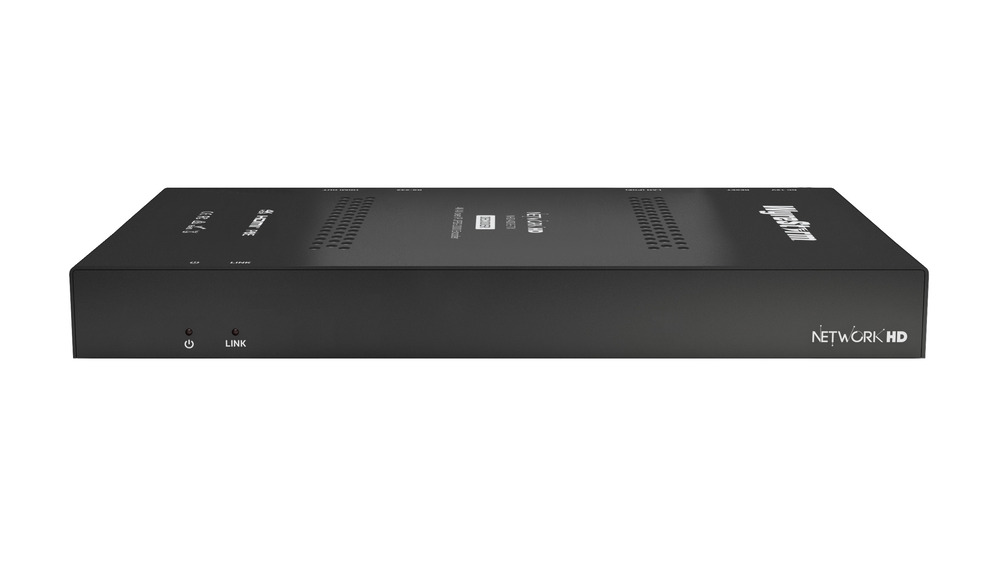

NetworkHD™ 400 Series 4K AV over IP JPEG 2000 Decoder – NHD-400-E-RX
NetworkHD™ 400 Series 4K AV over IP JPEG 2000 Decoder
WyreStorm brings stunning 4K HDR video, video resolution scaling, multi-channel audio and audio matrixing to IP with the NetworkHD 400 Series’ NHD-400-E-RX AVoIP decoder. The reduced cost Type E version removes some control ports but retains the 400 Series core features. Used in conjunction with any 400 Series encoder, the NHD-400-E-RX seamlessly handles mixed resolution sources, content and display devices for matrix and video wall functionality up to 16×16 with image rotation and bezel compensation.
Featuring incredibly low latency, the 400 Series is the ideal AV over IP solution for systems where high quality and low latency are key requirements, making it perfect for both residential and commercial applications.
Specifications
AUDIO AND VIDEO

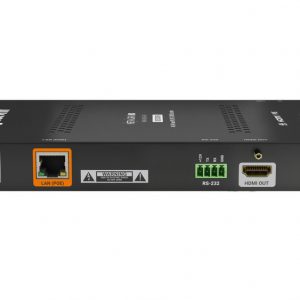

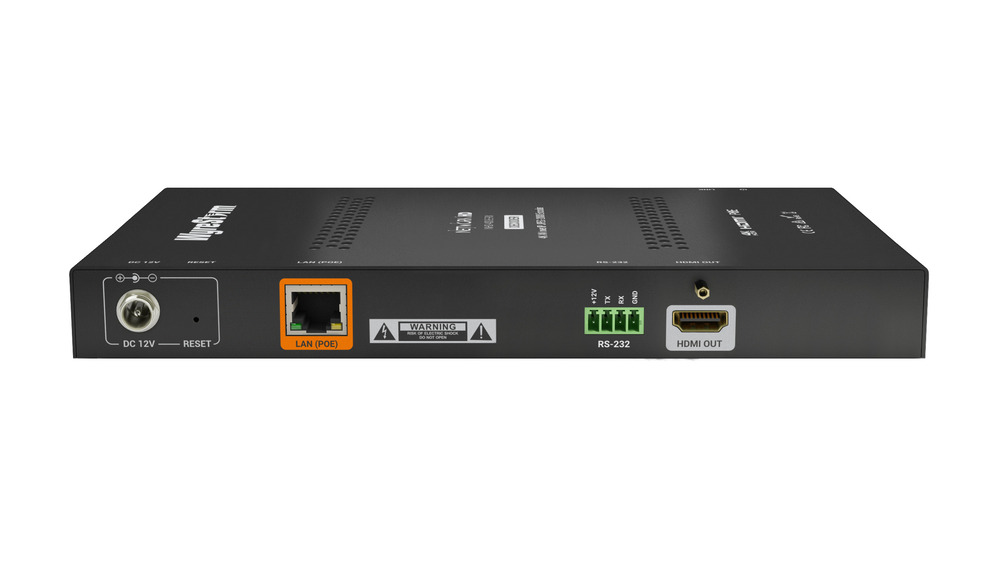

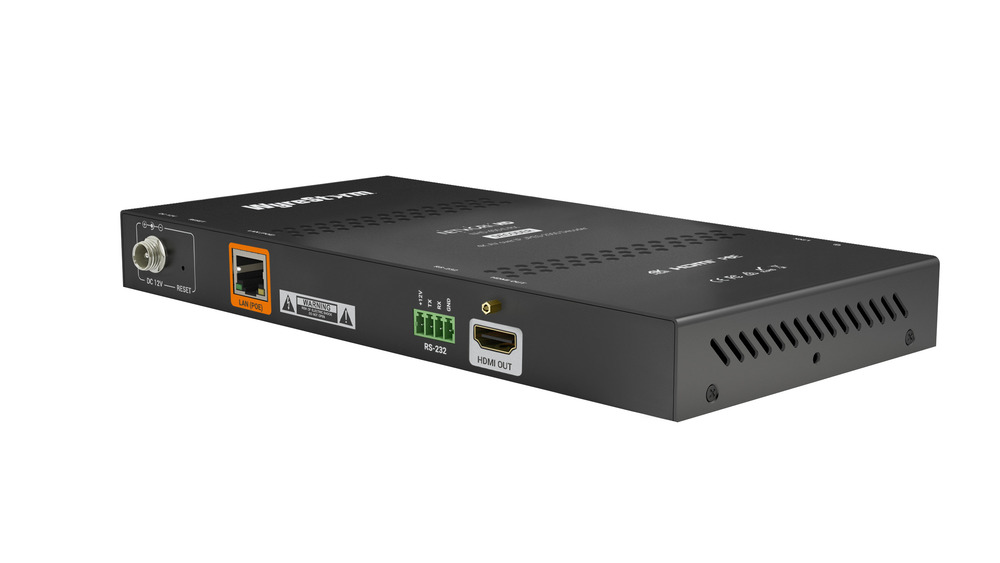

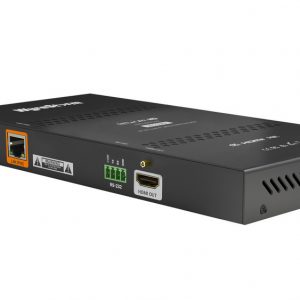

Inputs: 1x 8-pin RJ-45
Outputs: 1x HDMI Out 19-pin type A
Audio Formats: 2ch LPCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
Output Video Encoding: JPEG 2000
Encoding Data Rate: Max: 850Mbps
End to End Latency (Max): 1 video frame latency (pass-through mode) 16ms @60fps 2 video frames latency (scaler/VW mode) 33ms @60fps
Video Resolutions (Max): 3840x2160p @60Hz 8bit 4:2:0
Supported Standards: HDR10 | HLG | BT.2020
Maximum Pixel Clock: 300MHz
COMMUNICATION AND CONTROL
HDMI: HDCP 2.2 | CEC
Ethernet: 1x LAN (PoE): 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T, PoE PD (IEEE 802.3af)
RS-232: 1x RS-232: 4-pin Phoenix | 2 Way (RX only) | Routed | API Programmable
POWER
Power Supply: 12V DC 1A
PoE: IEEE 802.3af (15.4W at PSE)
Max Power Consumption: 8W (with PSU)
