NetworkHD™ 400 Series 4K AV over IP JPEG 2000 Encoder with Dante – NHD-400-DNT-TX
NetworkHD™ 400 Series 4K AV over IP JPEG 2000 Encoder with Dante
The NHD-400-DNT-TX encoder offers stunning 4K HDR video, multichannel audio support and video resolution scaling to seamlessly handle mixed resolution HDMI sources for matrix and video wall functionality. Equipped with a Dante audio encoder the 400 Series embraces the flexibility of standardized audio distribution. Featuring incredible low latency the 400 Series is the ideal AV over IP solution for systems where high quality and low delay are key requirements, making it perfect for demanding commercial applications.
The NHD-400-DNT-TX JPEG 2000 encoder is intended for use with any 400 Series JPEG 2000 decoder (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with Dante compatible audio equipment the 400 Series can distribute source HDMI or analog audio throughout an installation.
Specifications

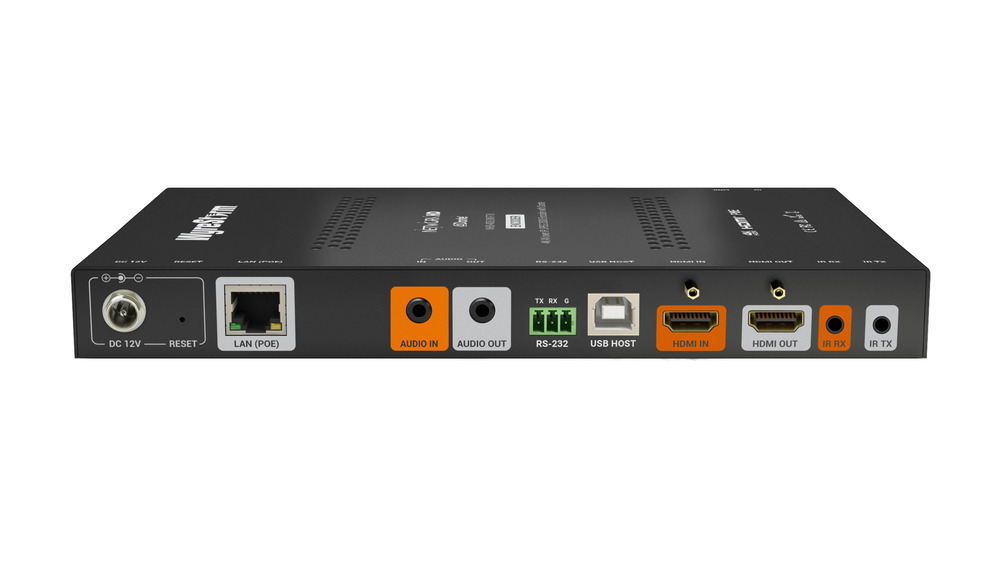

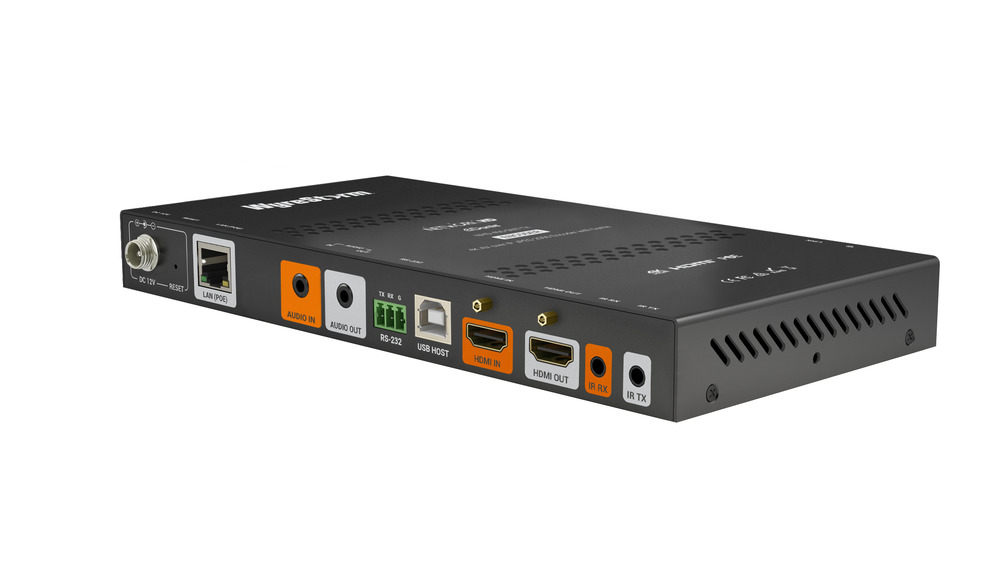

CONNECTIVITY
Inputs:
1x HDMI In: 19-pin HDMI Type A Receptacle
1x Audio In: 3.5mm TRS Stereo Jack Socket
1x IR RX: 3.5mm TRS Jack Socket
Outputs:
1x LAN (PoE): 8P8C “RJ45” Socket ANSI/TIA-568
1x Audio Out: 3.5mm TRS Stereo Jack Socket
1x USB Host: USB 2.0 Type B Receptacle
1x RS-232: 3-pin Phoenix
1x IR TX: 3.5mm TS Jack Socket
TRANSMISSION
Transmission Encoding: Proprietary stream encoding. Video compression based on JPEG 2000 Dante / AES67 compliant audio stream encoding
End to End Latency: With RX, 1 video frame (Passthrough mode) 2 video frames (scaling/video wall) e.g. 16ms @ 60Hz
Max Transmission Bit Rate: 850Mb/s
VIDEO
HDMI: 300MHz Max. TMDS Clock
Maximum Data Rate: 8.91Gb/s HDMI
Video Resolutions (Max):
1280x720p @60Hz 12bit 4:4:4/RGB
1920x1080p @60Hz 12bit 4:4:4/RGB
3840x2160p @30Hz 12bit 4:2:2/4:2:0 HDR10 HLG
3840x2160p @30Hz 8bit 4:4:4/RGB
3840x2160p @60Hz 8bit 4:2:0
Passthrough mode: Output at RX matches input at TX except for:1) YUV 4:2:0 converted to 8bit RGB2) For resolutions above 1920×1200 at 50/60Hz framerate is halved
Scaler mode: User-selectable scaled output1) All formats converted to 8bit RGB2) Up to 3840x2160p @30Hz
Supported Standards: HDR10 | HLG | BT.2020 | BT.709 | 3D Video
AUDIO
Audio Formats: PCM up to 8ch | Bitstream audio formats including Dolby Atmos & DTS:X2ch Analog Dante: Up to 2ch PCM (HDMI) | 2ch Analog
CONNECTIVITY
Ethernet: IEEE 802.1ab 1000BASE-T
HDCP: HDCP 2.2 | 1.x
EDID: Programmable EDID | EDID Copy/Import | Custom EDID
RS-232: Programmable RS-232 Commands | Custom Command Generation (RX Only)
IR: Custom Command Generation
Dante: Full compatibility with Audinate control and management software tools for Dante
POWER
Power Over Ethernet: IEEE 802.3af (15.4W at PSE)
External Power Supply: Optional part: PSU-12V-1A
Nominal Power Consumption: 8W
