NM2-FXS-2230-SFP-201

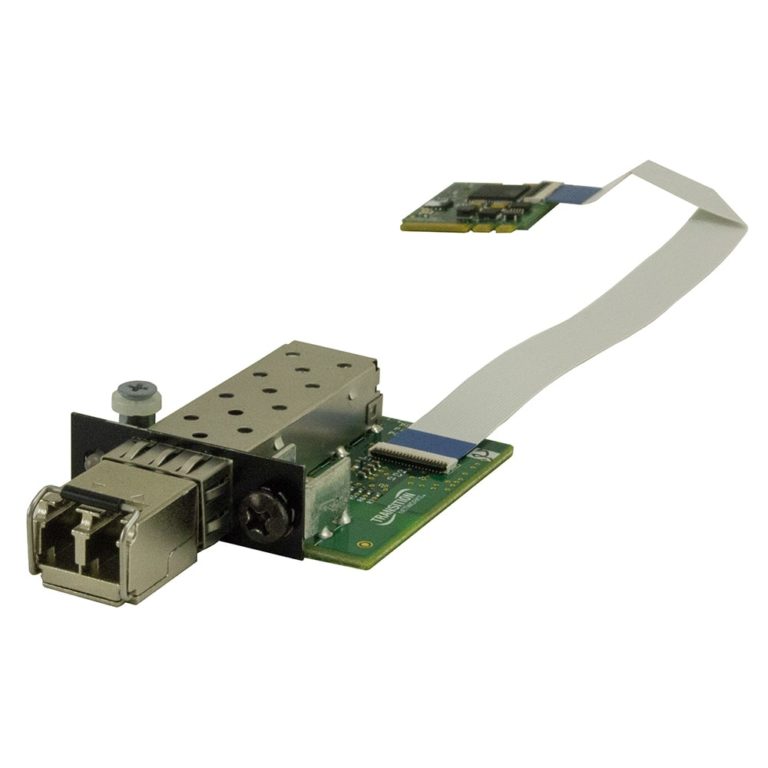

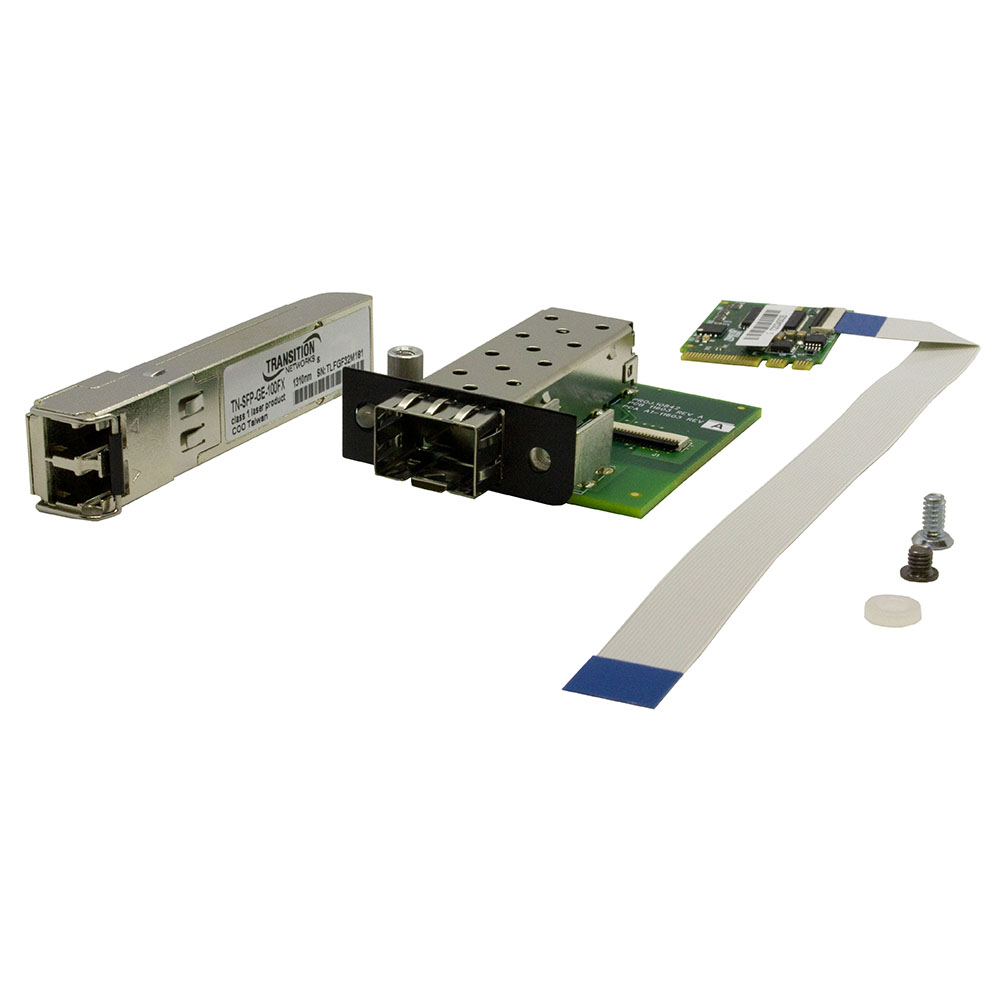

Lantronix M.2 Fast Ethernet Fiber Network Interface Card (NIC) provides a fiber optic interface for the Dell OptiPlex™ 7060, 5060, and 3060 Micro PCs. The NM2-FXS-2230-SFP-201 consists of a M.2 NIC that installs into the OptiPlex Micro PC’s M.2 “A or E keyed” interface, a fiber optic adapter that installs into the OptiPlex Micro PC’s Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The fiber optic adapter is an open SFP with a 100Base-FX to SGMII SFP Module (included).

Specifications
Bus Slot: M.2 – ‘2230-D4-A-E’

Data Rate: 100 Mbps (full duplex only)

Max Frame Size: 9014 bytes

Status LEDs:
LINK/ACT
ON = Link
Flashing = Activity

Dimensions (M.2 NIC):
M.2 NIC
2230-D4-A-E
Width: 0.87” [22 mm]
Depth: 1.18” [30 mm]
Height: 0.12” [3.08 mm]

Fiber Interface
Width: 1.65” [42 mm]
Depth: 2.05” [52 mm]
Height: 0.51” [13 mm]

FFC Cable
Length: 2.99” [76 mm]

Software Support: Windows 10, 8, 8.1, and 7 (32/64 bit); Linux

Power Consumption:
120mA @ 3.3V (0.4 Watts typical not including SFP module)
(SFP) 330mA @ 3.3V (1 Watt typical)

Power Source: M.2 interface connector: 3.3V (Refer to table 41 of M.2 Specification)

Environment:
Operating: 0°C to +45°C
Storage: -40°C to 85°C
Humidity: 5% to 95% (non-condensing)
Altitude: 0 – 10,000 ft.

Weight: 0.1 lbs. [0.05 kg]
