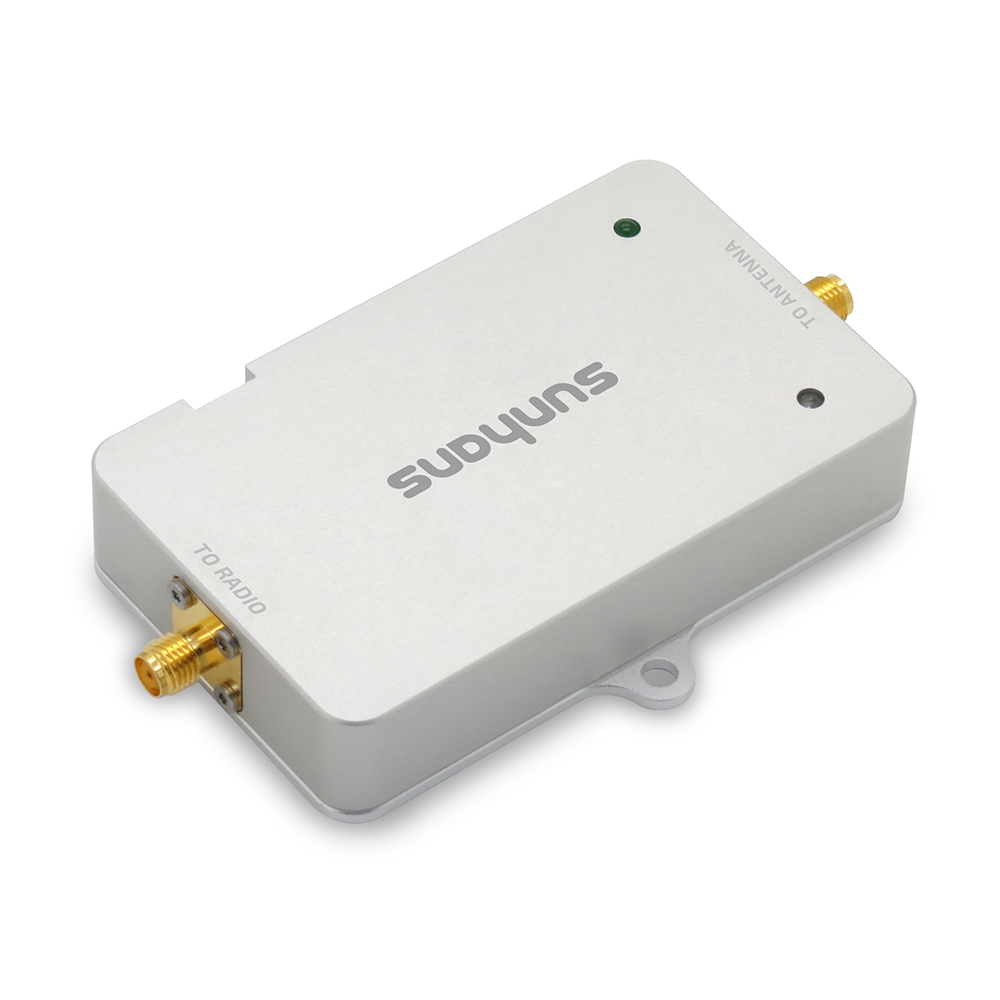

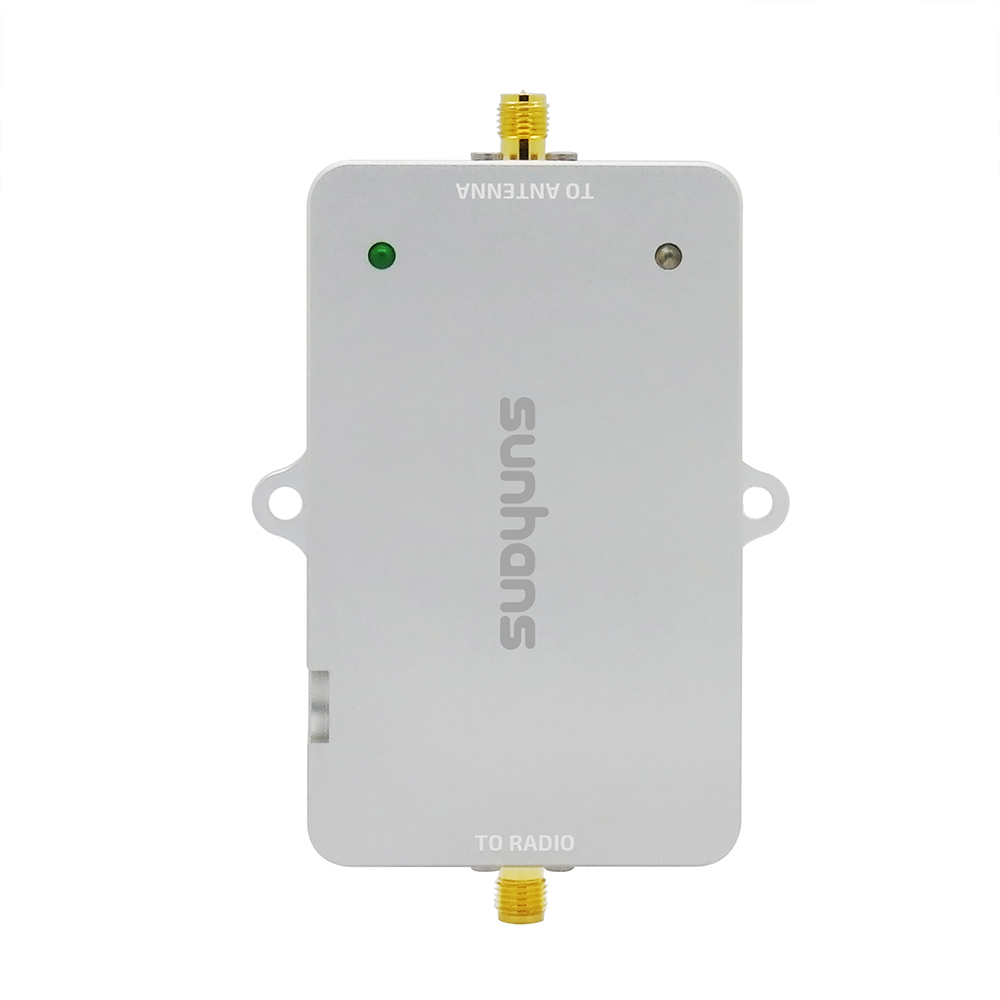

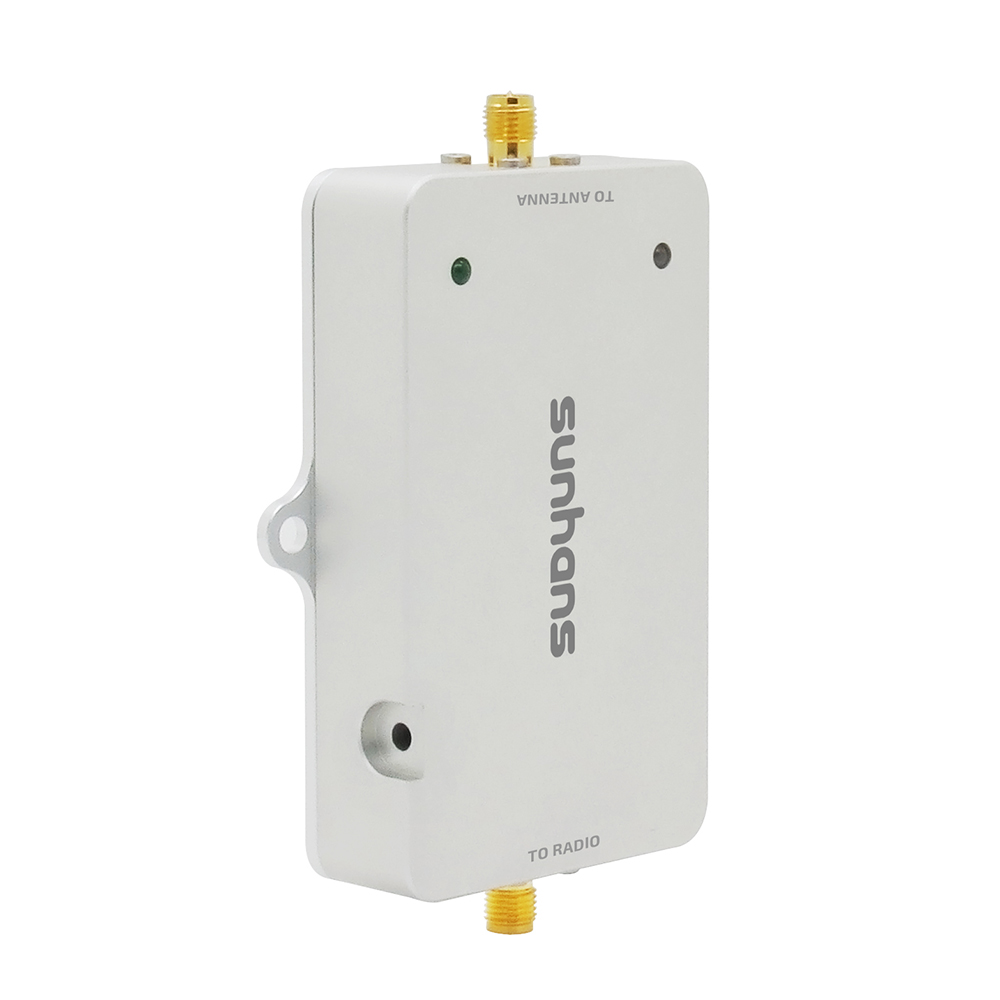

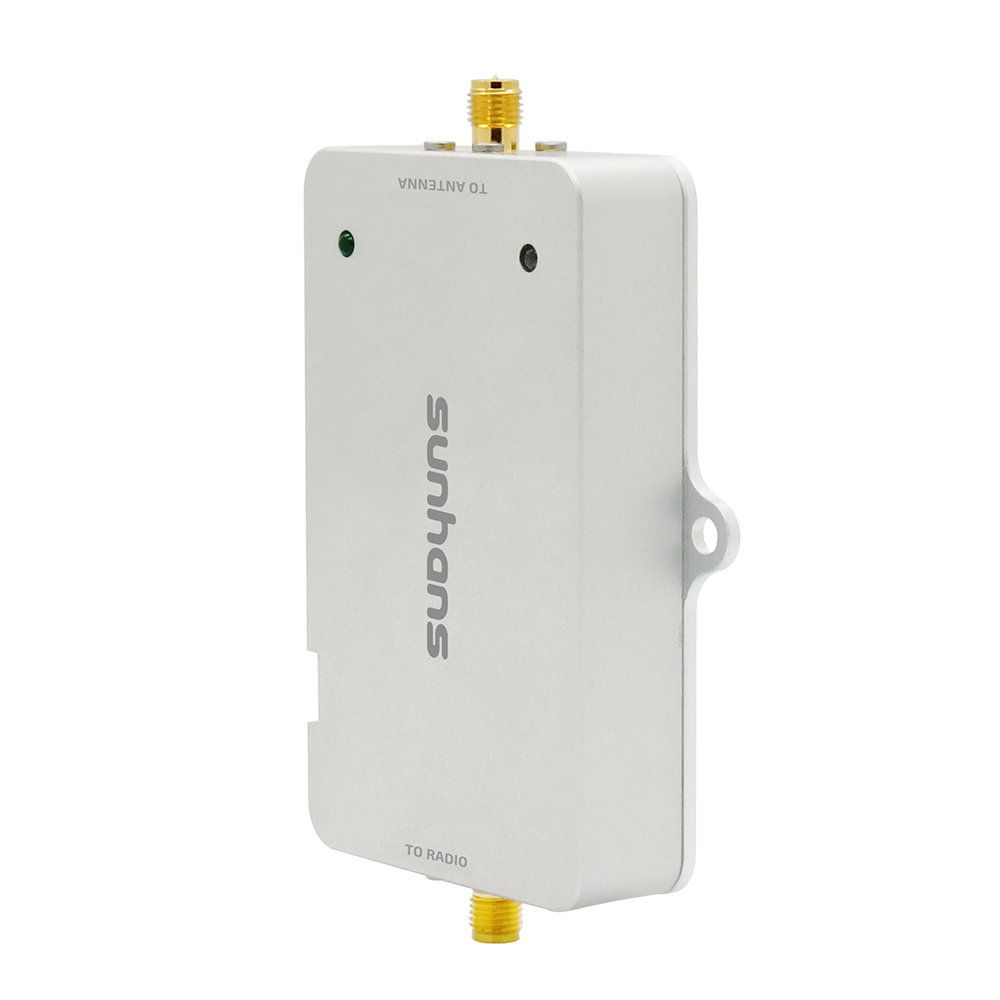

SH09Gi1000

Technical Specifications:
Booster Model: SH09Gi1000
Operating range : 902~928MHz
Channel width: 1-20Mhz
Operation mode: Bi-directional, half-duplex, time division duplex
Connector type: To radio SMA female (hole inside). To antenna RP-SMA female (pin inside)
Output power: 1000mW (30dBm)
Input power: 0 ~ 23dBm
Transmit gain: 24dB typical
Receiver gain: 16dB typical
Noise figure: ≤3.5dB typical
Frequency response: ±1dB over operating range
Power adapter: 12V/2A DC, 100~240V
Operating temperature: -20°C to +70°C
Operating humidity: Up to 75% relative humidity
Material: Cast aluminum
LED light: Power status / activity status LED
Booster weight: 133g
Booster size: 9.7 x 6.4 x 1.7cm

Package contents:
1 x SH09Gi1000 WiFi booster
1 x power supply
