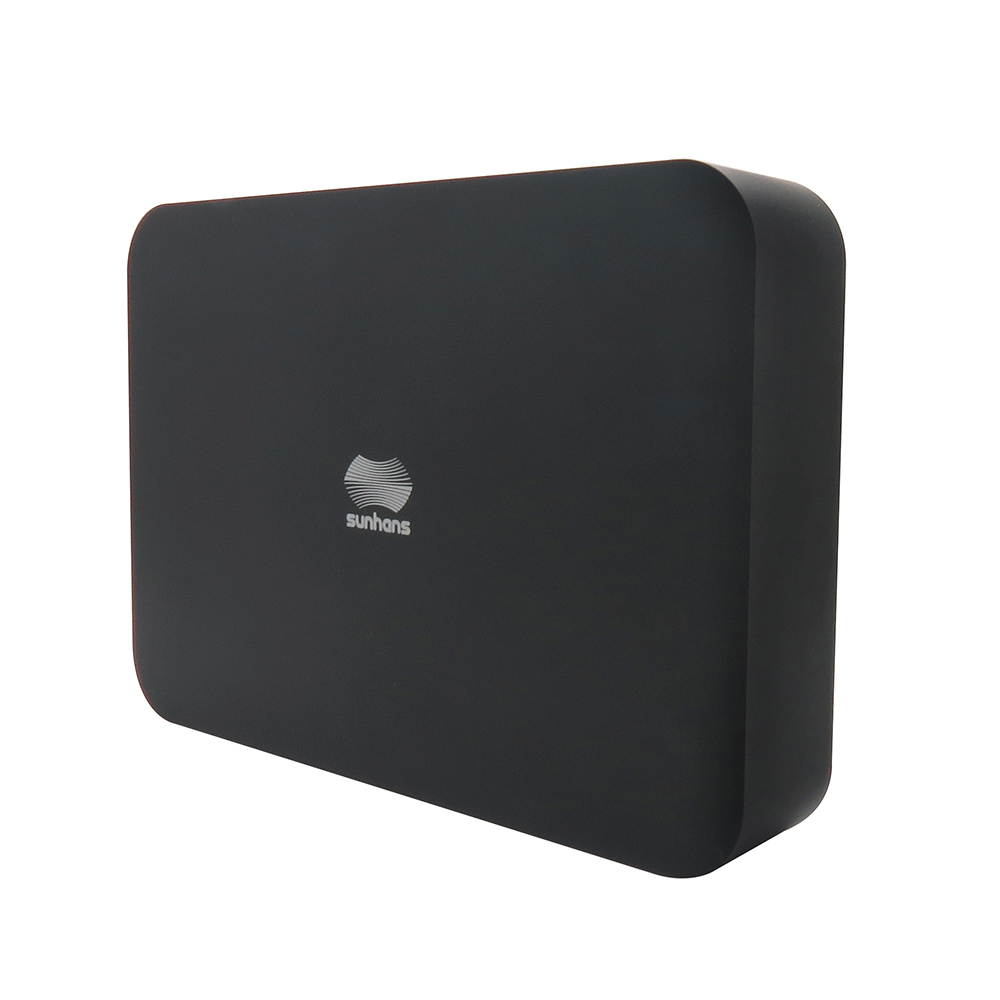

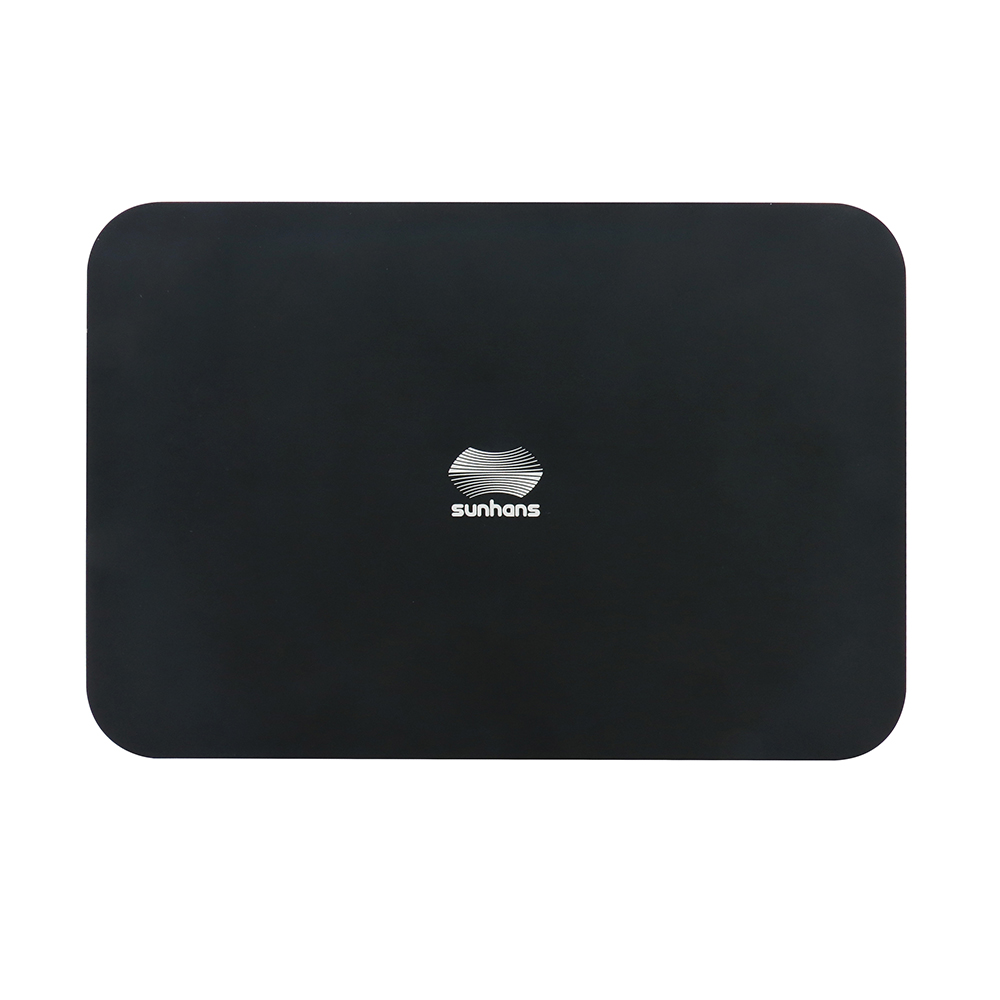

SHP1925PR10W

Features:
1900MHz frequency, 10W high output power.
Aluminum-alloy case by CNC, anti-interference.
ALC technology, small size, Safe & Power saving.
For large areas, park, hotel, building ….

Technical Specification:

Frequency range:
Uplink frequency: 1850 ~ 1915 MHz
Downlink frequency: 1930 ~ 1995 MHz

Bandwidth: 65MHz

Gain:
Uplink: 80 ± 2 dB
Downlink: 85 ± 2 dB

Auto Gain Control: ≥ 20 dB
Gain Flatness: ≤ 5 dB (p-p)

Max. Input Power Without Damage: 0 dBm

Output power:
Uplink: 37 dBm± 2dB
Downlink: 39 dBm± 2dB

Intermodulation Product & Spurious Emission:
9 KHz ~ 1 GHz ≦-36dBm/ 100KHz
1 GHz ~ 12.75 GHz ≦-30dBm/1MHz

Frequency stability: ≦ 0.01ppm
Operating Temperature: -5 ~ 45 ℃
Environmental Conditions: IP40
Humidity: 5%~95%
Impedance: 50 Ω (nominal)
Isolation: >90dB
PCDE: ≤ -38 dBc
ALC (Automatic Level Control): ≧15dB
In-band Ripple: ≦ 8dB
Noise Figure: ≦ 5dB
V.S.W.R : ≤ 2.0
Group Delay: ≤ 1.5μs
Power Supply: Input AC110~240V, Output DC24V/2.5A

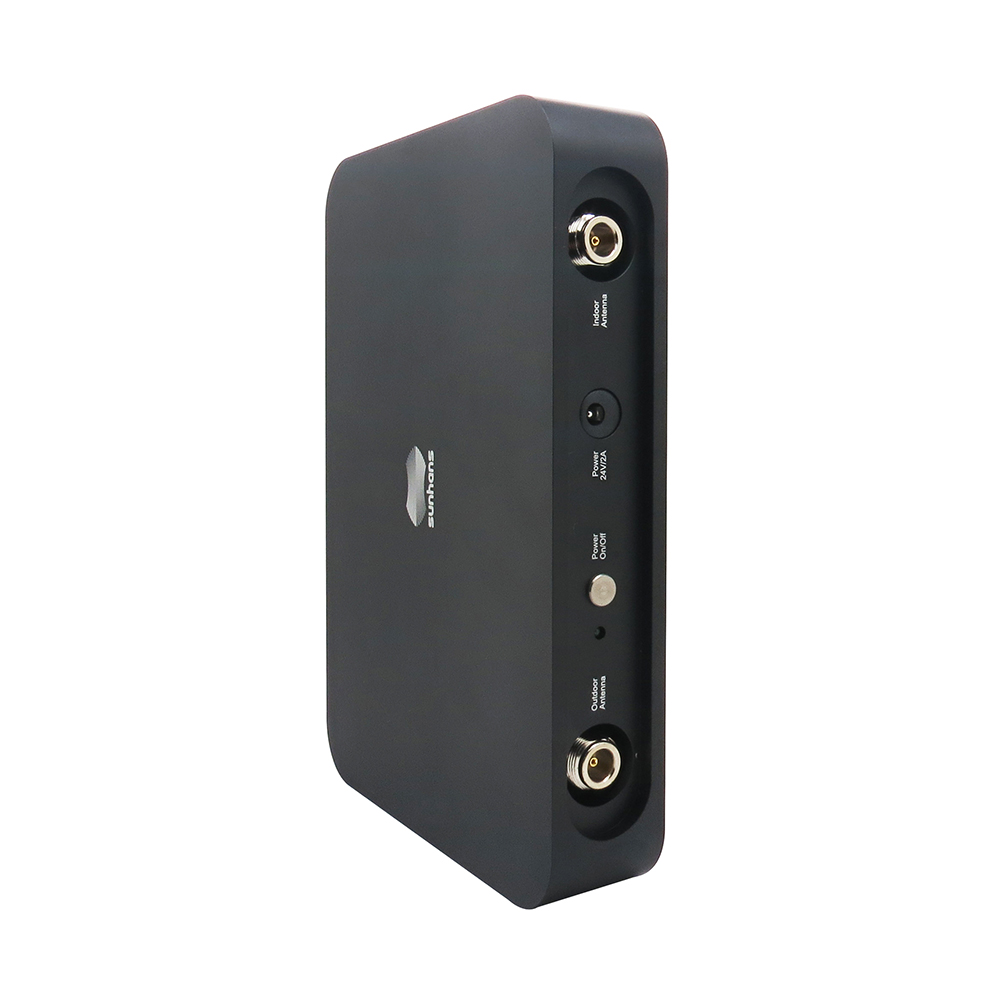

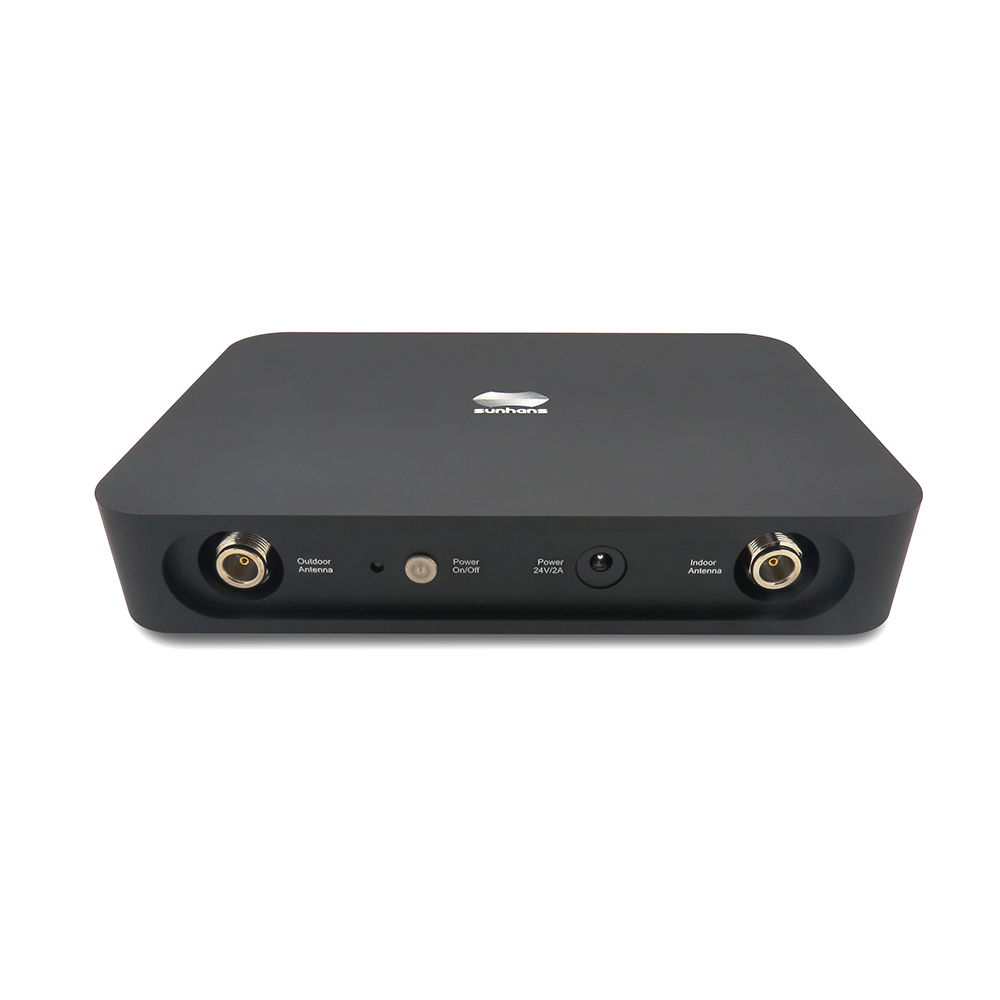

RF Connector: N-Female
Dimensions (W x H x D): 20 x 15 x 3.8cm
Weight: 1630g

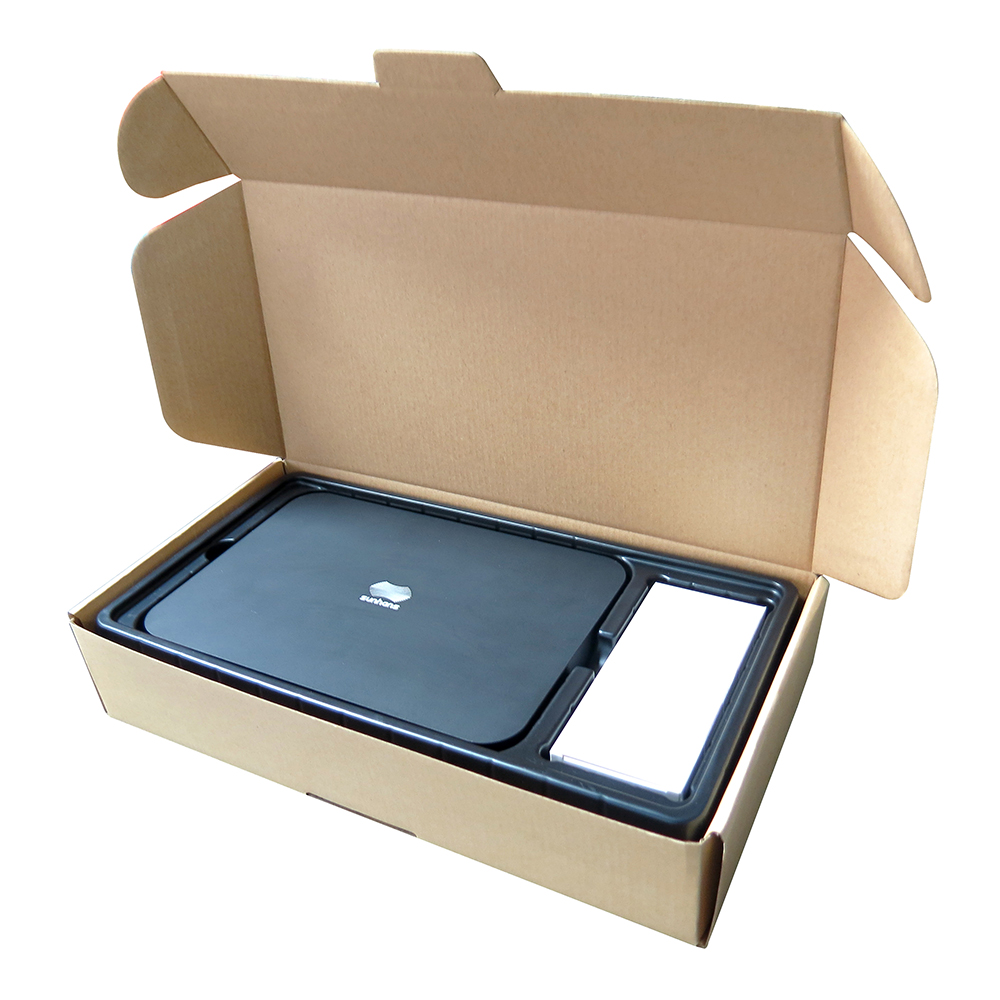

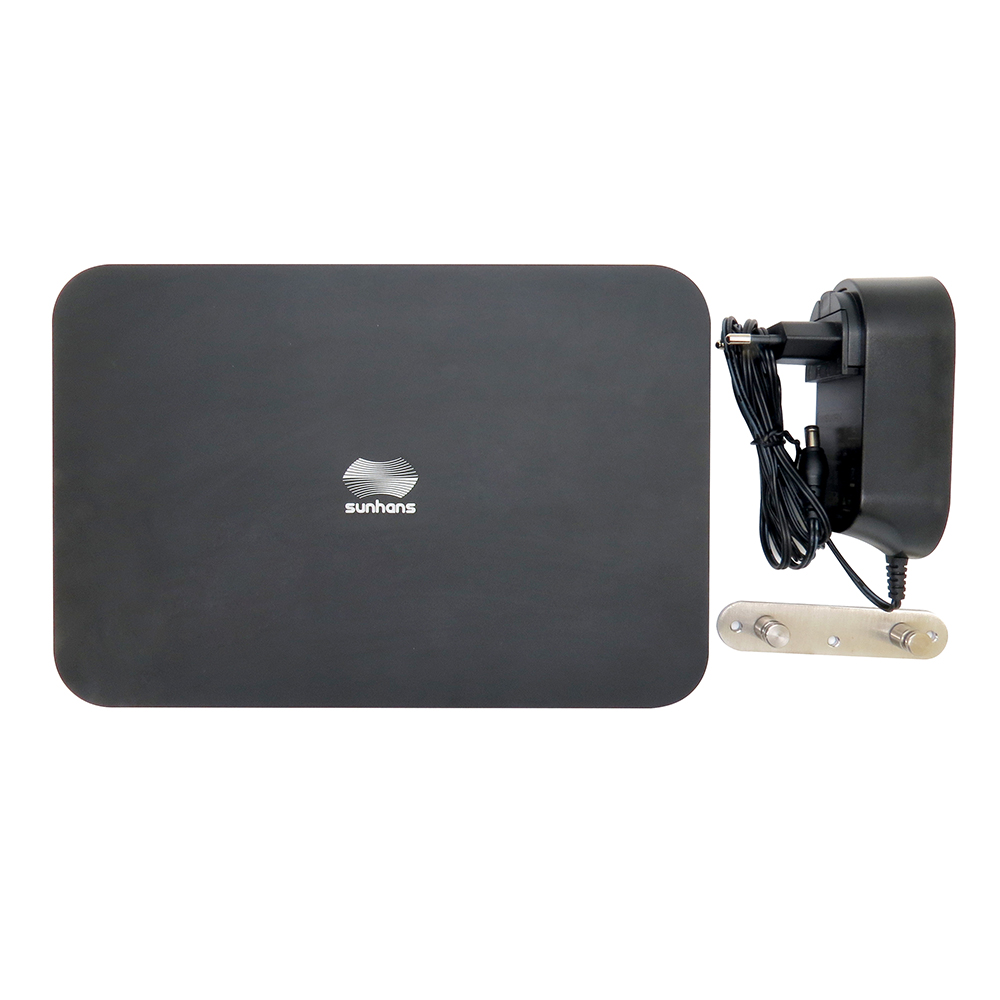

Package contents:
1 x SHP1925PR10W repeater
1 x power supply
1 x user manual
