SHRC5824G4W

Features:
1.[Brand new and high quality] 2.4G &5.8G dual band WiFi signal booster could Auto switch frequency, 4000mW real output power; 5-16V wide voltage range, support various power supply; Aluminium-alloy case by CNC, anti-interference; Designed for Drones, UAV, RC equipment.
2.[Small size and light weight] eSunRC WiFi signal booster has the feature of light weight(143g) and small size (9.4*6.3*1.7in) can easily install in RC drones, UAV.
RC remote to expand WiFi signal range and the flight range of drones.

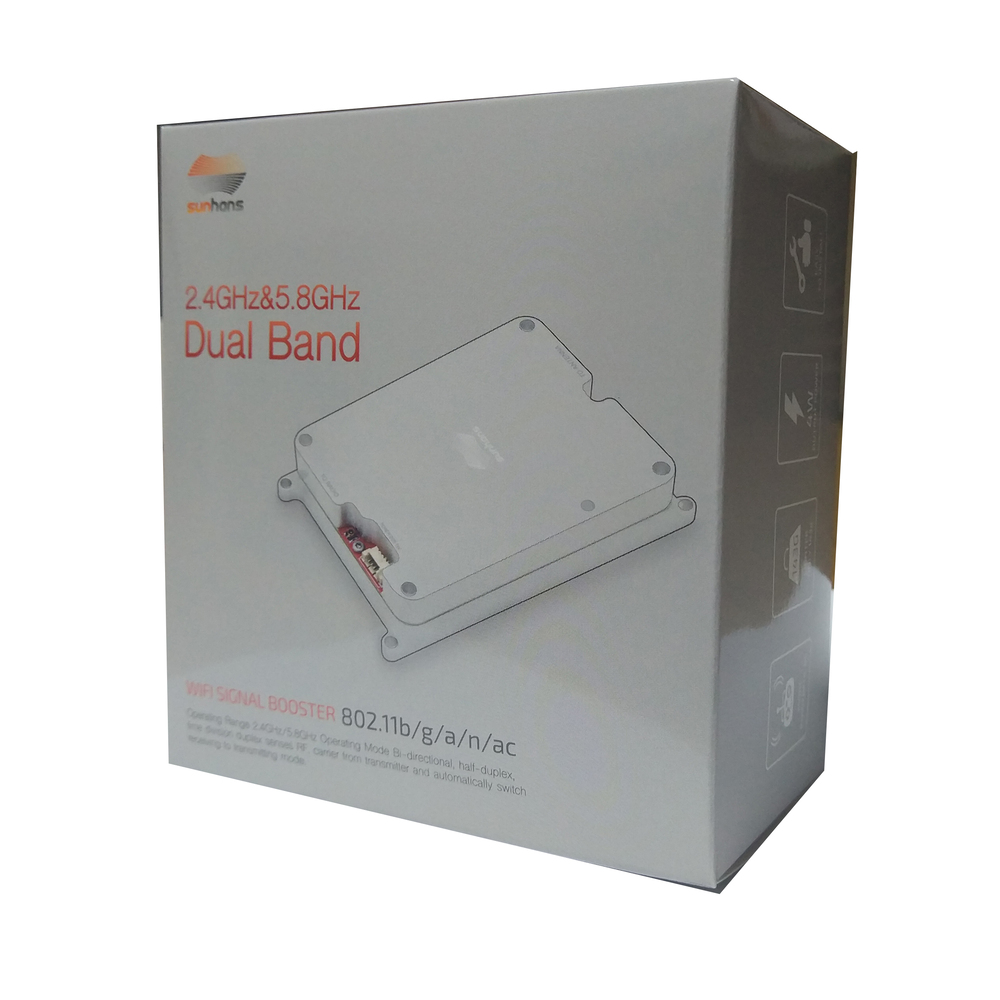

3.[Full kit and gift box package]
Technical Specifications:
Operating range: 2.4~2.5GHz; 5.0~5.8GHz
Channel width: 20Mhz&40Mhz&80Mhz
Supported standards: IEEE 802.11b/g/n/a
Operation mode: Bi-directional, half-duplex, time division duplex
Output power: 4000mW (36dBm)
Input power: 0 ~ 20dBm
Transmit gain: 16 ~ 19dB
Receiver gain: 10dB
Noise figure: ≤3.5dB typical
Frequency response: ±1dB over operating range
Power adapter: 12V/2A DC, 100~240V
Operating temperature: -20°C to +70°C
Operating humidity: Up to 75% relative humidity
Material: Cast aluminum
LED light: Power status LED and activity status LED
Booster weight: 143g
Booster size: 9.4*6.3*1.7cm

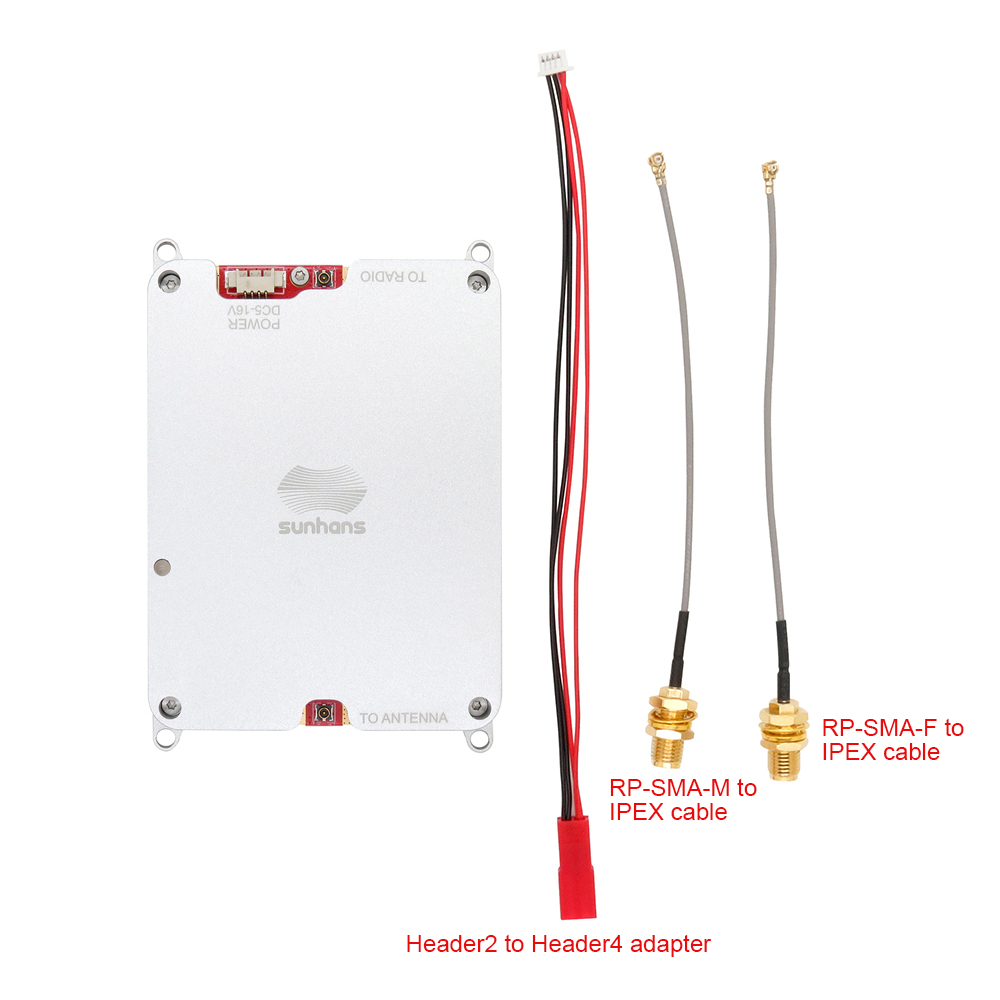

Package contents:
1 x SH-RC5824G4W WiFi booster
1 x RP-SMA-F to IPEX cable
1 x RP-SMA-M to IPEX cable
1 x Header2 to Header4 adapter
1 x Header2 to Header4 adapter
1 x User manual
