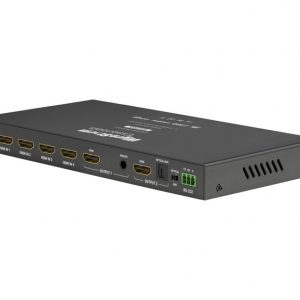

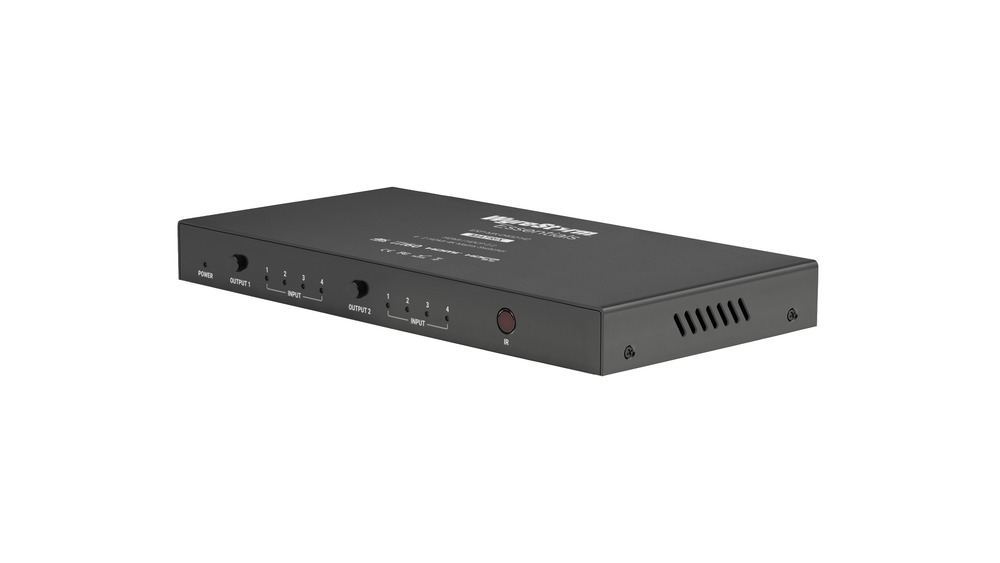

WyreStorm Essentials™ 4K60 4×2 HDMI Matrix Switcher – EXP-MX-0402-H2

A vast upgrade from its predecessor, the EXP-MX-0402-H2 takes the EXP-MX0402-010 features to new heights, whilst maintaining its cost effect platform. Keeping up with the latest standards, the EXP-MX-0402-H2 has been upgraded to an 18Gbps backbone with HDCP 2.2 compliance and now featuring a powerful built-in auto scaler on both of its outputs allowing users to simultaneously connect a mix of 4K and 1080p displays.

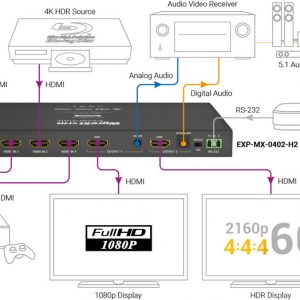

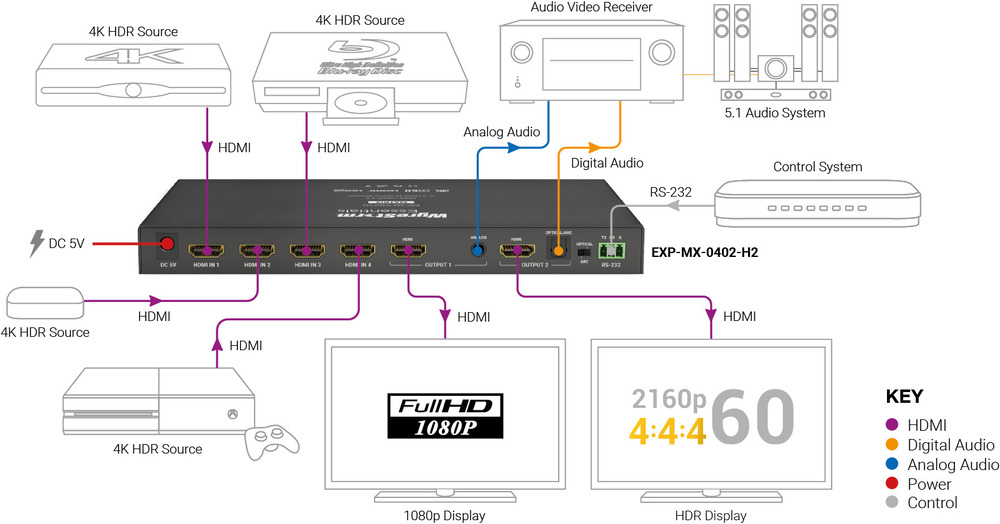

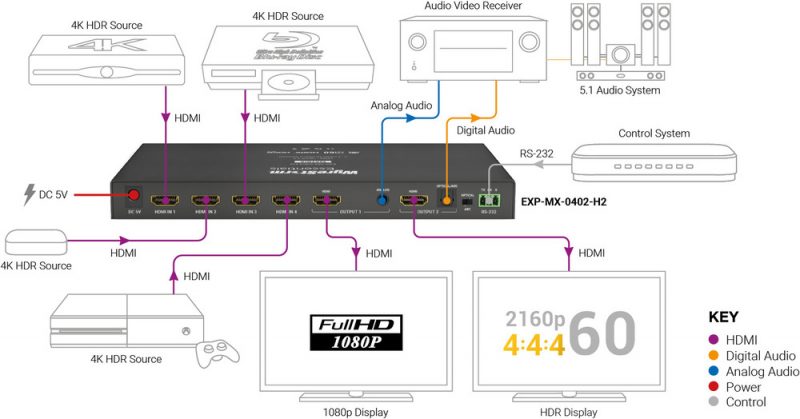

If that wasn’t enough, the EXP-MX-0402-H2 also includes analog and digital audio de-embed and ARC, as well as CEC triggering and RS-232 control, hosting a boat load of control features. Coupled with the WyreStorm TS-280 touchscreen and HAOC line of HDMI cables makes for the perfect power pack solution for mid to large scale residential and light commercial applications!

Specifications
AUDIO & VIDEO

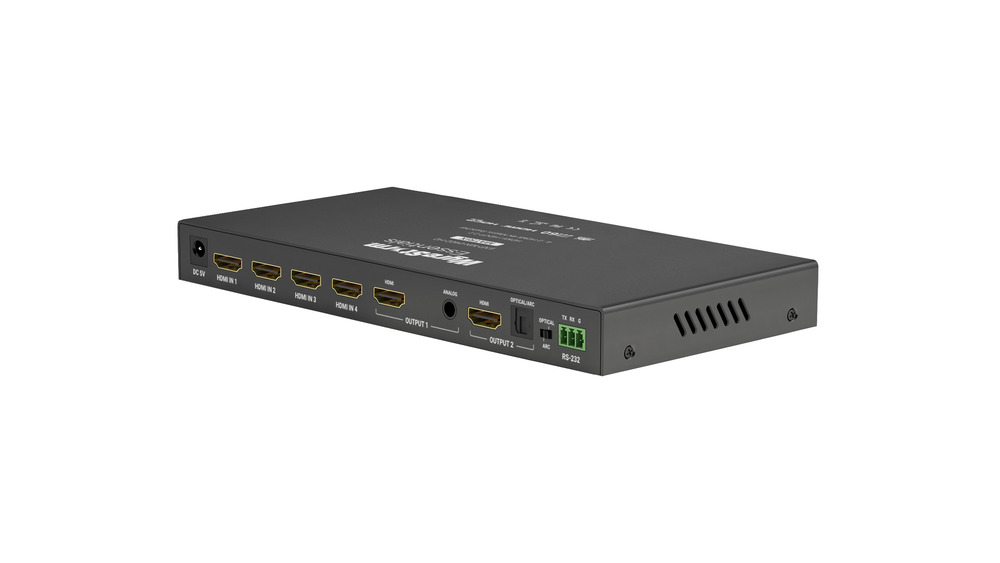

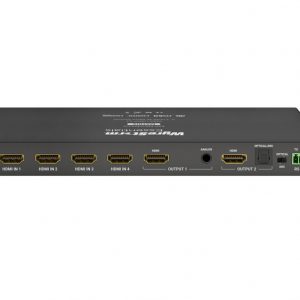

Inputs: 4x HDMI In 19-pin HDMI type A

Outputs:
2x HDMI Out 19-pin HDMI type A
1x 3.5mm Analog Stereo
1x S/PDIF Toslink

Audio Formats:
HDMI: 2ch PCM |
Multichannel: LPCM and up to DTS-X and Dolby Atmos
Analog: 2ch LPCM
Toslink: 5.1ch surround sound

Video Resolution (Max):
1920x1080p @60Hz 16bit
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:4:4

Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up 30Hz | HLG | BT.2020 | BT.2100

Maximum Pixel Clock: 600Mhz

COMMUNICATION & CONTROL
HDMI: HDCP 2.2 | DVI-D supported with adapter (not included)

RS-232: 1x 3-Pin Terminal Block

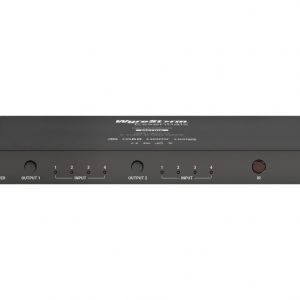

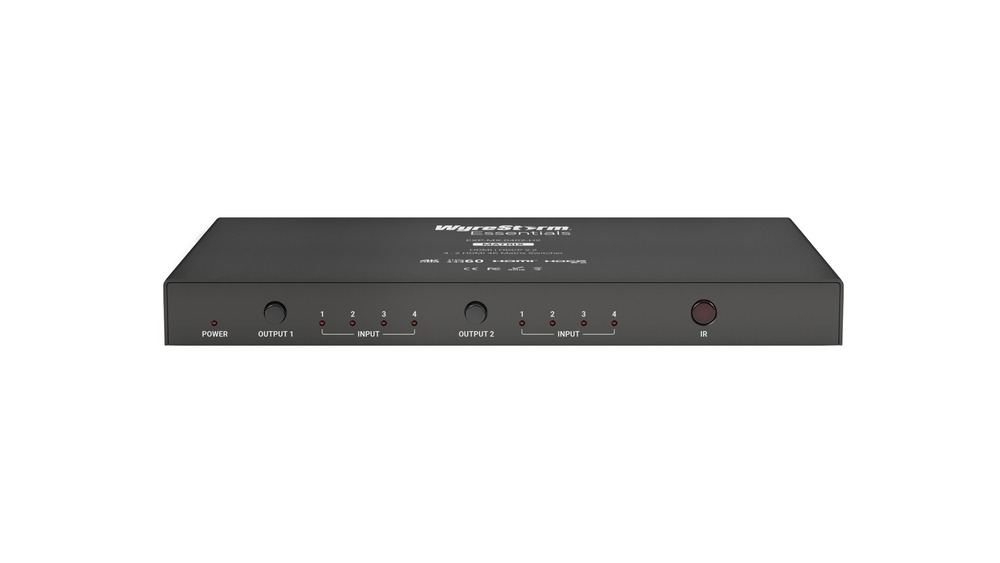

IR: 1x Front Panel Sensor

POWER
Power Supply: 5V DC 1A

Max Power Consumption: 5W
